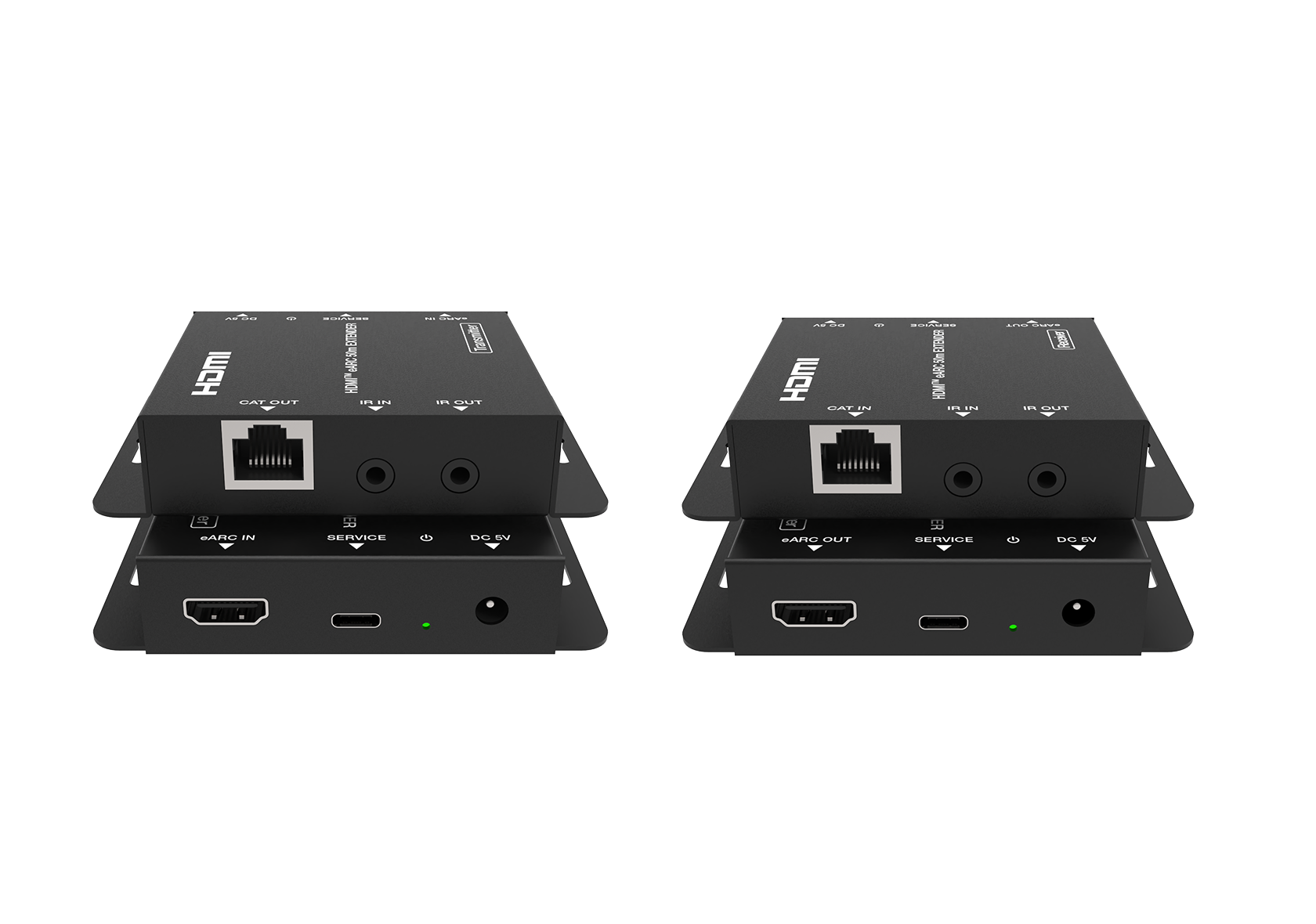

HDMI eARC Audio over CAT Extender – 50m
This Audio Extender can transmit HDMI eARC/ARC audio signals over a single CAT5e/6 cable. The transmission distance is up to 50m/164ft.
MV-AXEA50
Request a Quote
Key Features
- Extends HDMI eARC/ARC audio signal up to a distance of 50m/164ft.
- Supports audio formats: eARC: LPCM 2.0/5.1/7.1CH, DD,DD+, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos ARC: LPCM 2.0CH, Dolby 5.1CH, DTS 5.1CH.
- Supports CEC pass-through.
- Supports bi-direction IR pass-through.
- Uses a compact enclosure for flexible installation.
- Each transmitter and receiver is powered by a DC 5V/1A adapter.

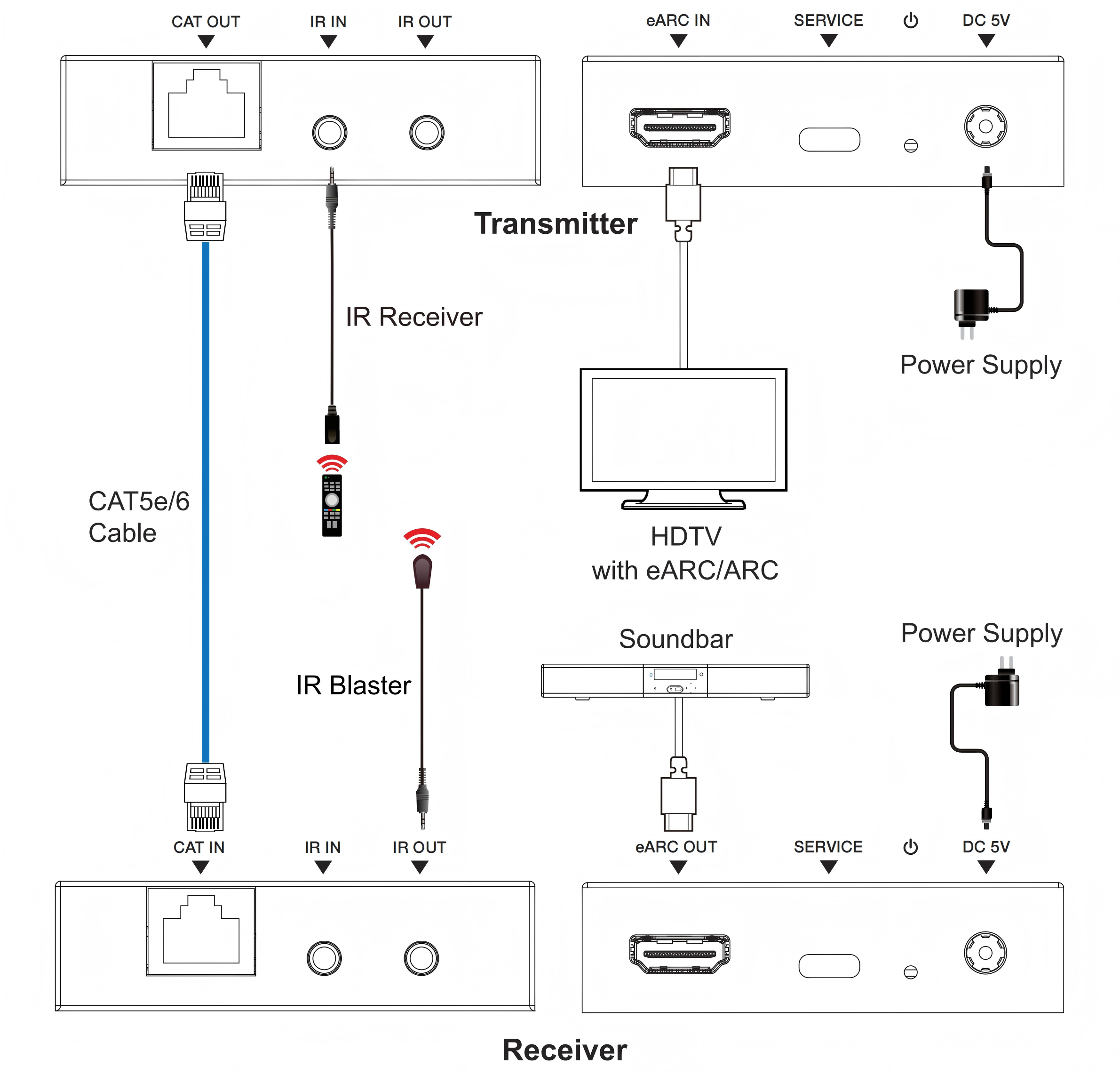

Application Diagram
