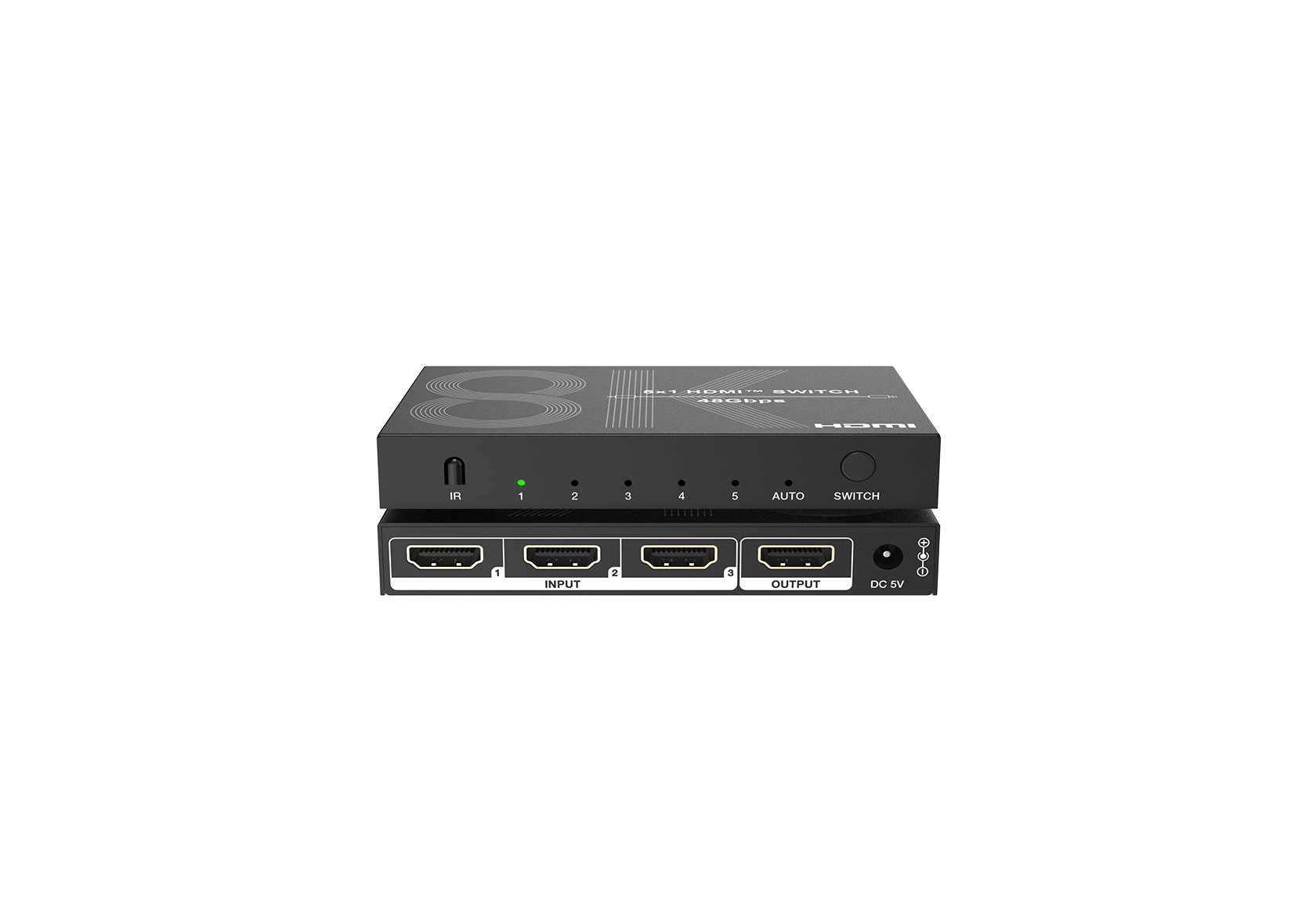

8K60 5×1 HDMI 2.1 Auto Switcher
Switch five HDMI 2.1 sources to one display at up to 8K60 or 4K120, with automatic input selection and support for HDR, VRR, ALLM and high-resolution surround audio.
MV-SW518K
Request a Quote
Key Features
- Complies with HDCP 2.3.
- 48Gbps FRL and 18Gbps TMDS video bandwidth.
- Supports video resolutions up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1.
- Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through.
- Supports HDMI 2.1 features including VRR, ALLM, QMS, QFT, SBTM.
- Passes through LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio.
- 5× HDMI inputs routed to 1× HDMI output.
- Supports control via front panel button and IR remote.
- Auto input switching and manual input switching.
- Supports CEC pass-through.
- Powered by a DC 5V/1A adapter.

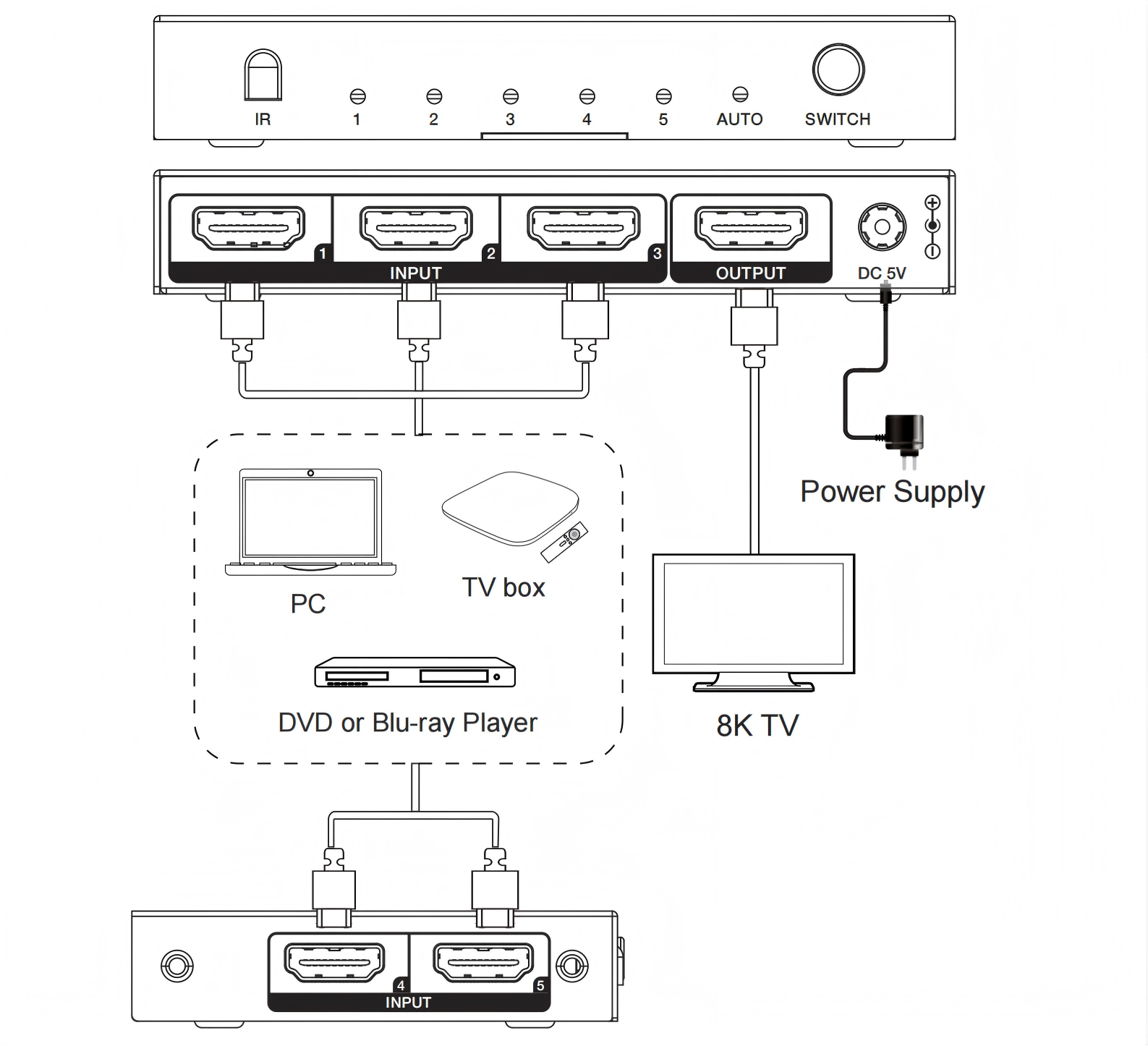

Application Diagram
