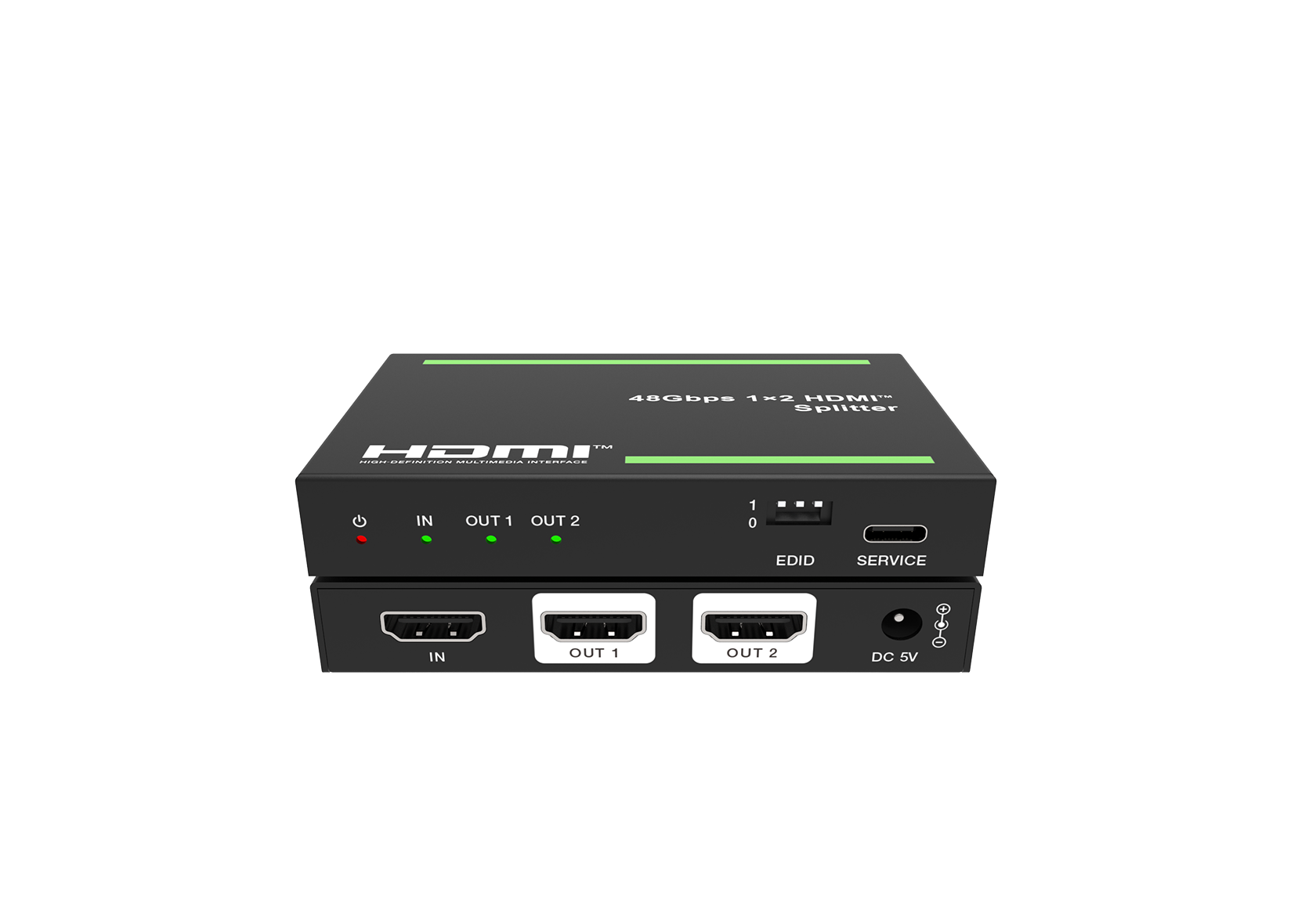

8K60 1×2 HDMI 2.1 Splitter
Distribute one HDMI 2.1 source to two displays at up to 8K60 or 4K120, with automatic resolution downscaling, HDR-to-SDR conversion and advanced EDID management.
MV-SP128K
Request a Quote
Key Features
- Complies with HDCP 2.3.
- Supports 48Gbps FRL and 18Gbps TMDS video bandwidth.
- Supports video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1.
- Supports HDMI 2.1 features including VRR, ALLM, QMS, QFT, SBTM.
- Supports HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through.
- Passes through LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio.
- 8K to 4K or 8K/4K to 1080p auto downscaling on all outputs.
- HDR to SDR auto converting on all outputs.
- Provides advanced EDID management.
- Uses a compact enclosure for flexible installation.
- Powered by a DC 5V/2A adapter.

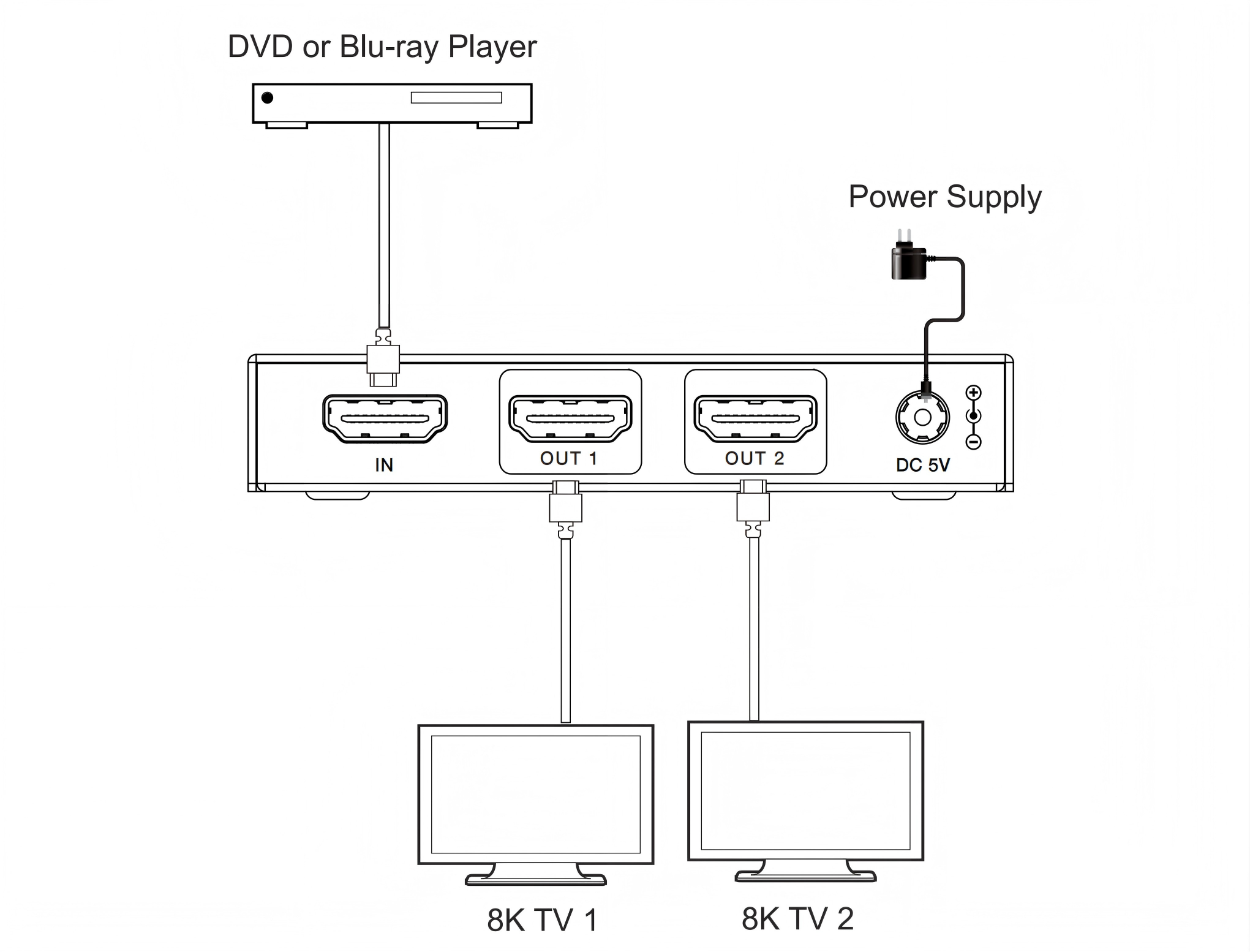

Application Diagram
