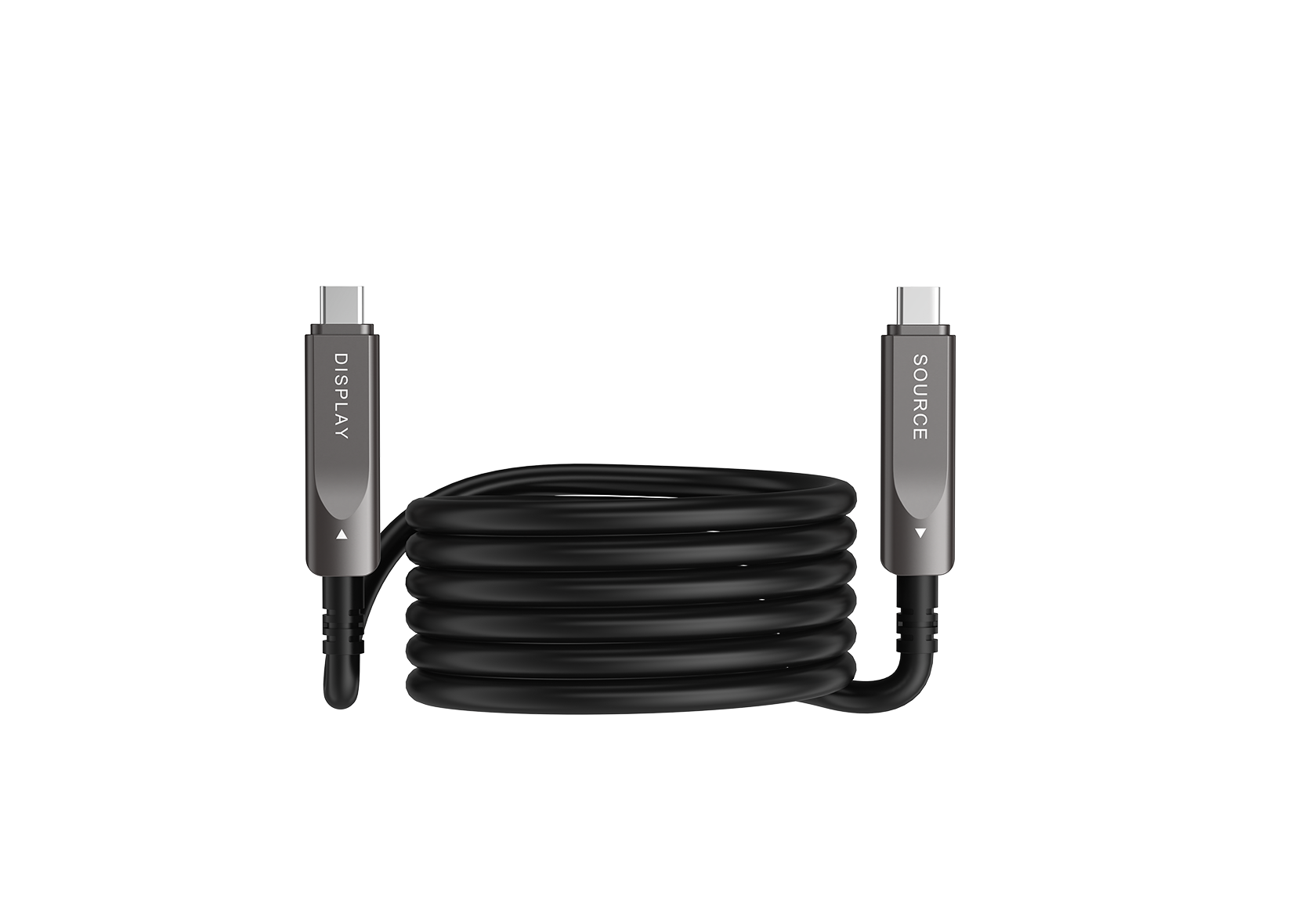

8K USB-C Active Optical Cable with 10Gbps USB & PD Charging
Carry 8K60/4K144 video, USB data and USB-C power over a single 5–15m hybrid optical cable, with automatic switching between four-lane DP 2.1 plus USB 2.0 and two-lane DP 1.4 plus 10Gbps USB modes.
MV-AOC8KC
Request a Quote
Key Features
- Supports USB 3.2 Gen 2 data rates up to 10Gbps and remains backward-compatible with USB 2.0 and 1.1.
- Automatically switches between four-lane DP 2.1 plus USB 2.0 and two-lane DP 1.4 plus USB 3.2 Gen 2 modes.
- Supports video resolutions up to 8K60 and 4K144 through DP Alt Mode.
- Uses a hybrid fiber-and-copper construction for long-distance signal and power transmission.
- Supports PD 3.0 charging, rated at 90W for the 5m cable and 85W for the 10m and 15m cables.
- Supports cable lengths of 5m, 10m and 15m.
- Supports touch feedback for interactive displays.
- Uses an E-Mark chip for stable current and cable identification.
- No external power supply is required.

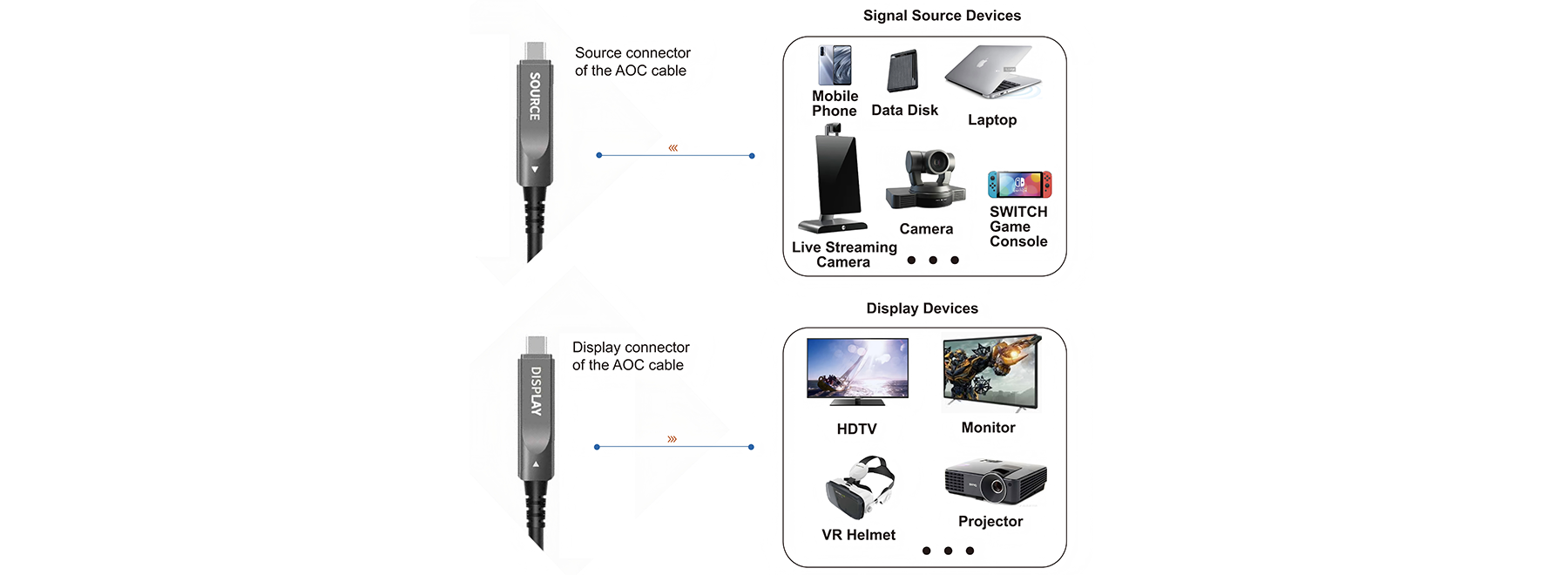

Application Diagram
