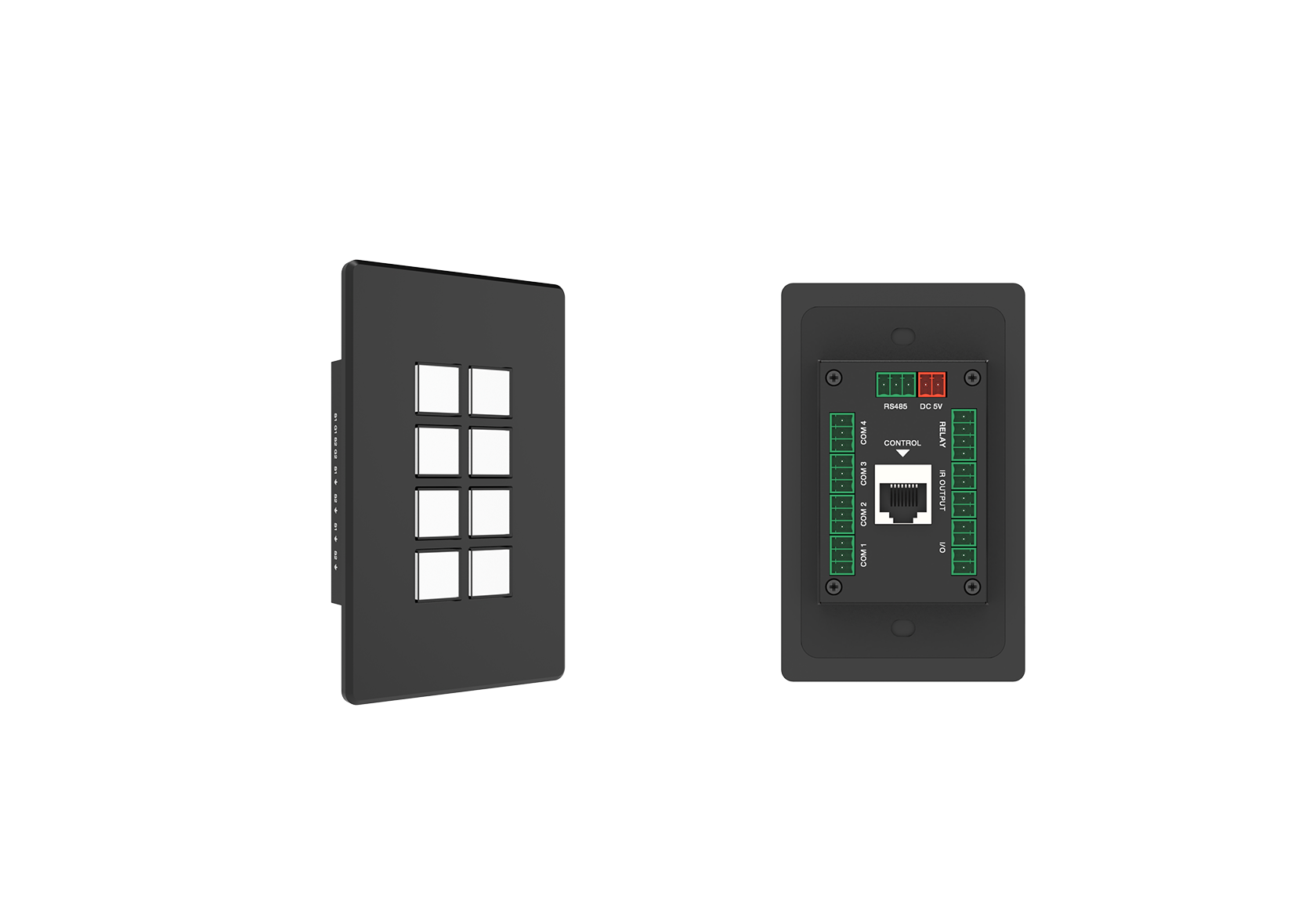

8-Key Programmable AV Control Panel
Give users one-touch control of AV room functions through eight programmable illuminated keys, with RS-232, RS-485, relay, IR, I/O and Ethernet interfaces for cross-device automation.
MV-KP08
Request a Quote
Key Features
- Provides eight programmable buttons with illuminated status feedback.
- Provides four bidirectional RS-232 ports with configurable baud rates.
- Provides one RS-485 port with a configurable baud rate.
- Provides two isolated low-voltage relay outputs.
- Provides two universal I/O ports with configurable input or output operation.
- Provides two wideband 20–60kHz IR outputs.
- Connects to a 10/100Mbps network and supports TCP/IP, UDP, HTTP and WebSocket protocols.
- Fits UK/CN 86, US 1-gang and EU 2-gang wall boxes.
- Runs Linux on an ARM Cortex-A7 platform with 256MB RAM and 256MB storage.
- Powered by DC 5V/1A or PoE.

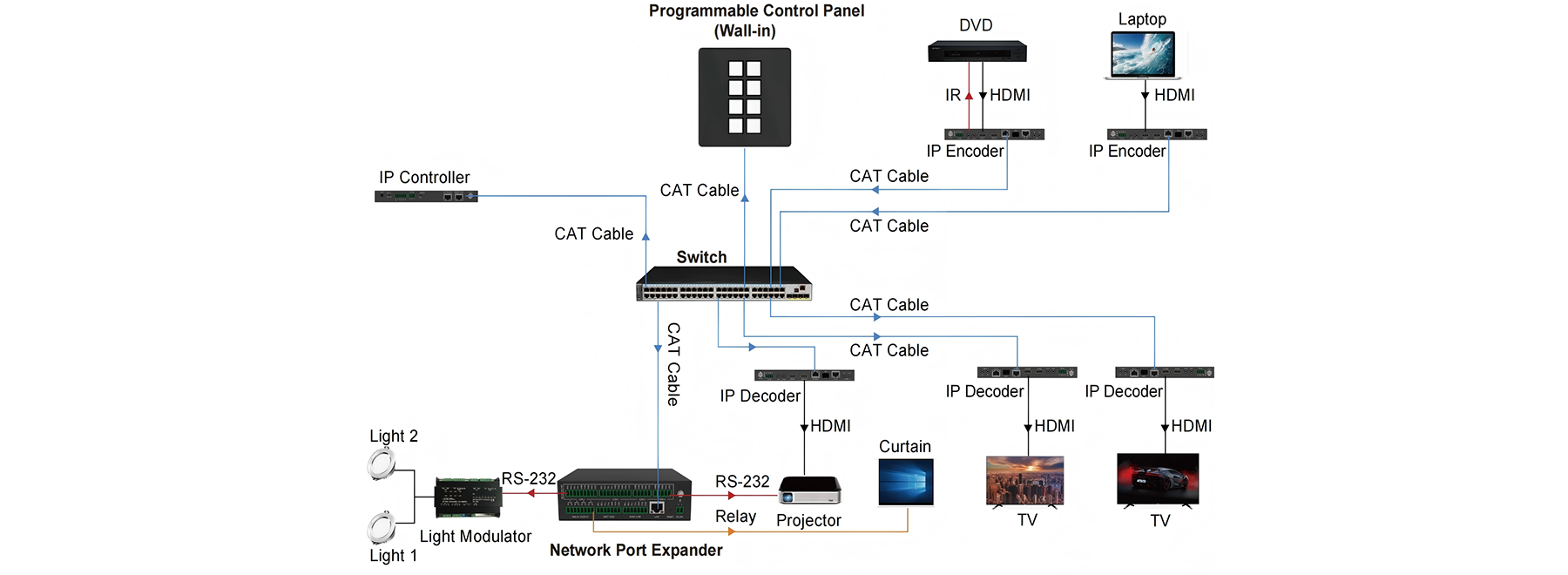

Application Diagram
