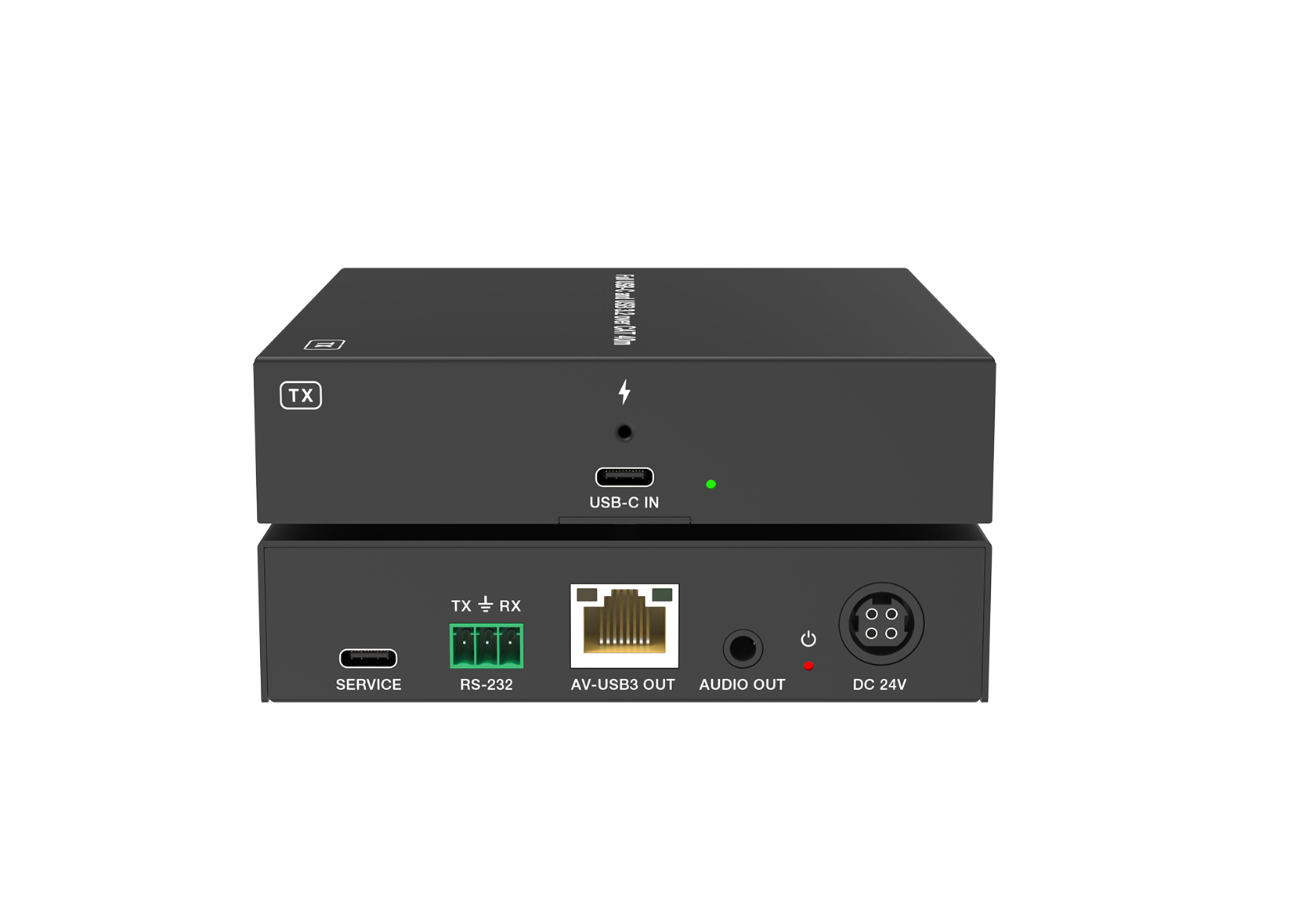

5K USB-C AV & USB 3.2 Extender Transmitter with 100W PD
Extend full-featured USB-C over one CAT6A cable—up to 40m for 4K or 35m for 5K—while carrying video, USB 3.2 data and up to 100W laptop charging from the transmitter.
MV-AVU405KC-TX
Sold Separately
·
Requires One Compatible TX and One RX
Request a Quote
Key Features
- Extends signals up to 40m/130ft for 4K signal, 35m/115ft for 5K signal via a single CAT6A cable.
- Complies with VESA DisplayPort 1.4a.
- Complies with USB-C Power Delivery 3.0.
- Complies with HDCP 2.3 for secure source-to-display transmission.
- Supports USB 3.2 Gen 1 with data transfer rate up to 2.5Gbps. It does not support 5Gbps operation.
- Provides one full USB-C input, supporting DP Alt mode standards (v1.4a) A/V, USB 3.2 Gen 1 data and up to 100W charging.
- Supports audio de-embedding.
- Passes RS-232 control between the transmitter and receiver.
- Supports HDR, HDR10+, Dolby Vision LLM and HLG pass-through.
- Powered by a DC 24V/7.5A adapter; bidirectional PoC can power the paired endpoint.
- Must be paired with one compatible receiver—MV-AVU405KH-RX or MV-AVU405KC-RX—to operate. TX and RX units are sold separately.
Compatible Receivers
This transmitter is sold separately. Choose one compatible unit below to complete your extender system.

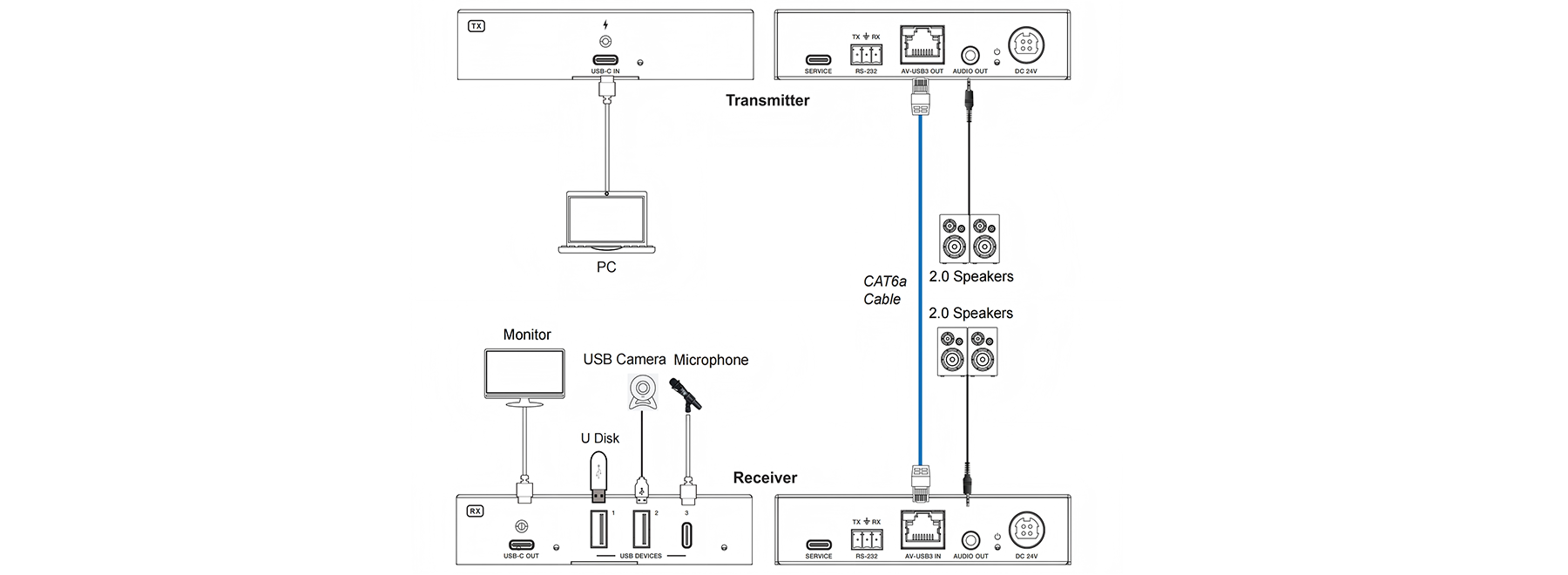

Application Diagram
