5Gbps USB 3.2 Extender – 100m with Local & Remote Hubs
This USB Extender can extend USB 3.2 Gen 1 signal to a distance up to 100m/328ft via a single CAT6a cable. The transmitter features one USB-C host port, one USB-C and two USB-A device ports.
MV-UX100C
Request a Quote
Key Features
- Extends USB 3.2 Gen 1 up to 100m/328ft via CAT6A cable.
- Supports USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps.
- Maintains backward compatibility with USB 2.0 and 1.1.
- Provides hardware acceleration for isochronous and bulk transfer.
- The transmitter provides 1× USB-C host port, 1× USB-C and 2× USB-A device ports.
- The receiver provides 2× USB-C (1× 5V@1A and 1× 5V@1.5A) and 2× USB-A device ports (1× 5V@1A and 1× 5V@1.5A).
- Supports firmware upgrade via USB-C service port.
- Supports FSYNC GPIO pass-through for industry camera use.
- Plug-and-play with no drivers, downloads, or software required.
- Powered by one DC 24V/3.75A adapter; bidirectional PoC powers the remote unit.

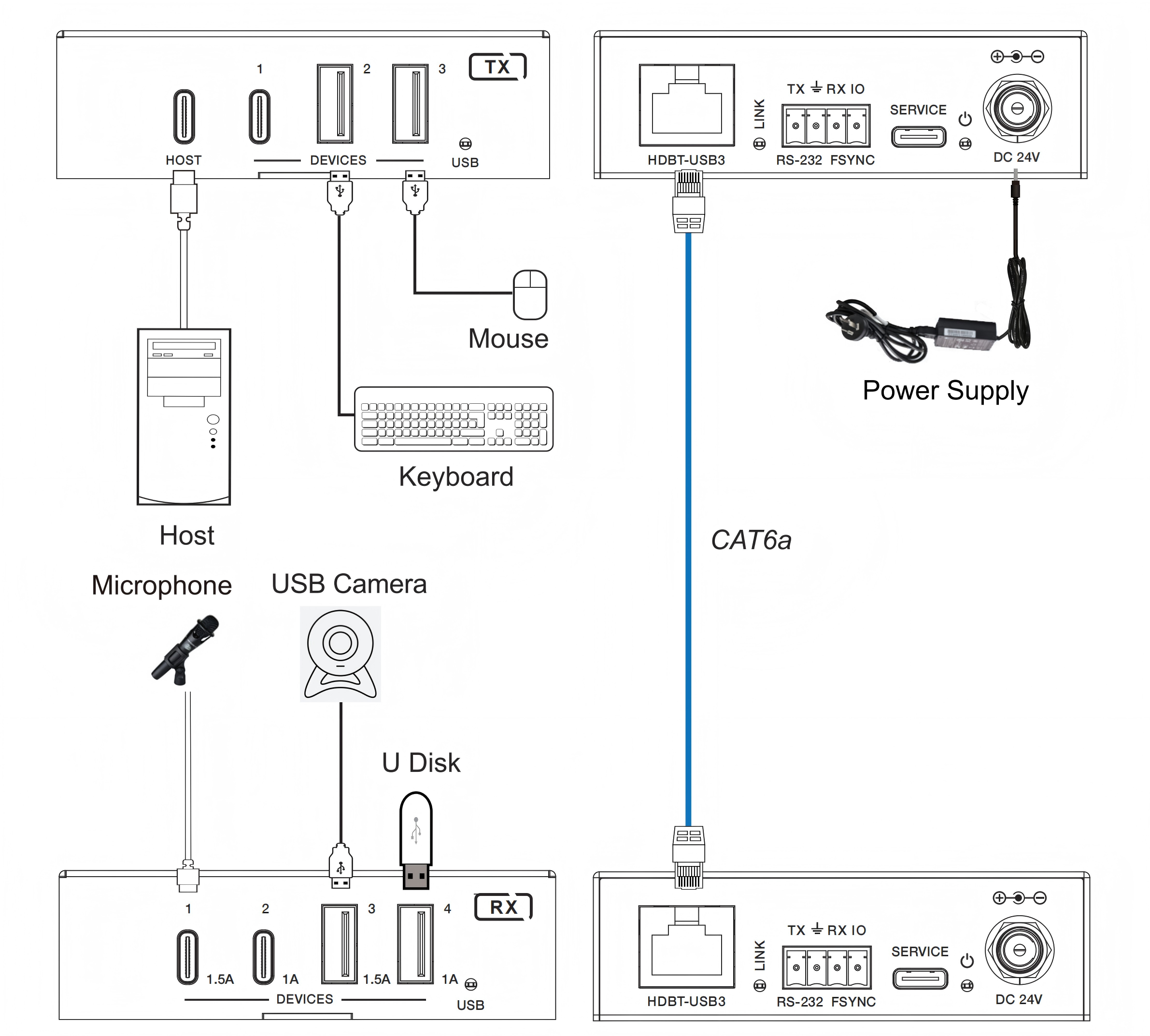

Application Diagram
