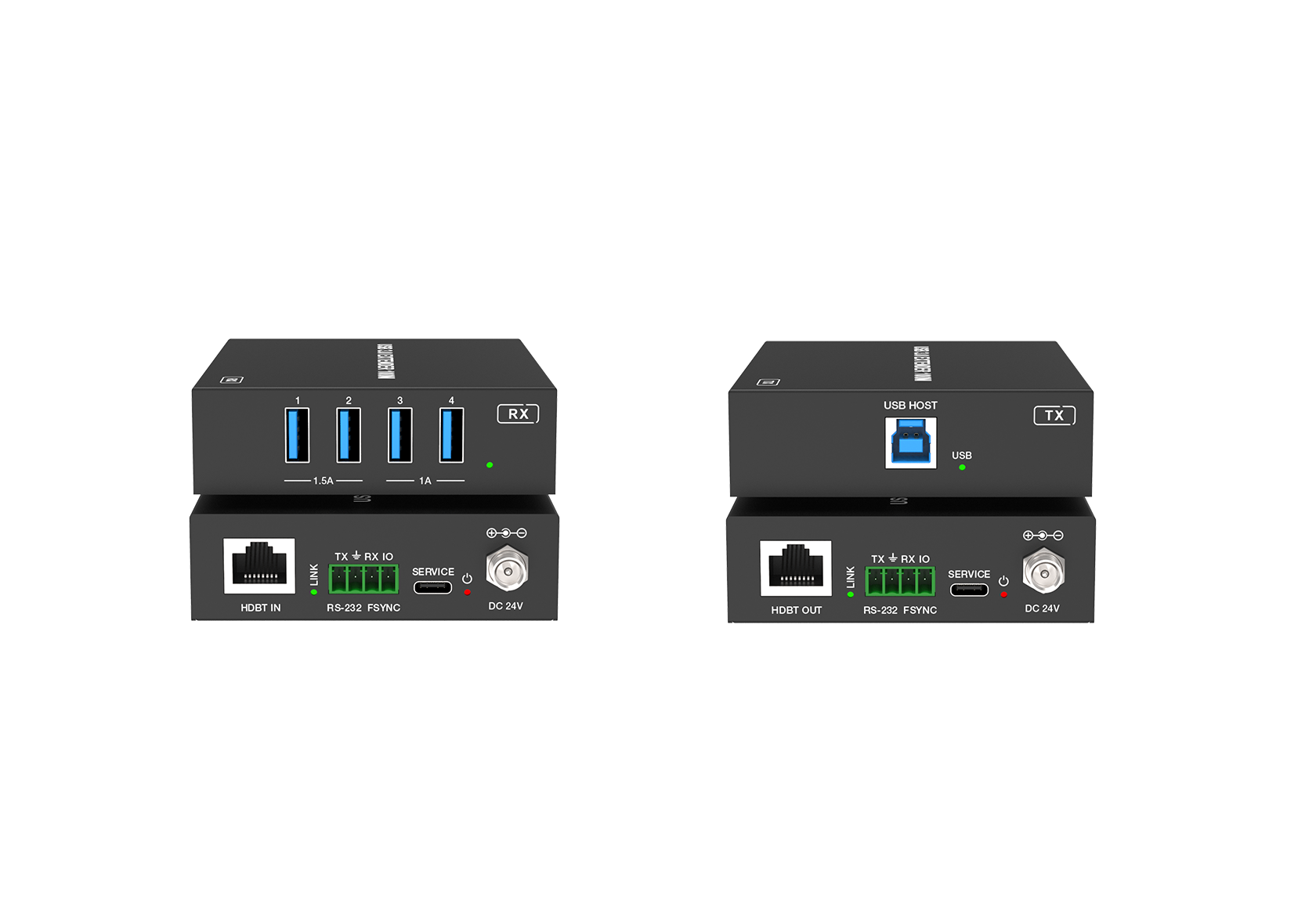

5Gbps USB 3.2 Extender – 100m with Four-Port Remote Hub
The USB 3.0 Extender can extend USB signal to a distance up to 100m/328ft via a single CAT6a cable. Transmitter features with one USB 3.0 Type B input, one FSYSNC GPIO input and one RS-232 pass-through.
MV-UX100B
Request a Quote
Key Features
- Extends USB 3.0 is up to 100m/328ft over CAT6A cable.
- USB 3.0 connectivity with data transfer rate up to 5Gbps.
- Maintains backward compatibility with USB 2.0 and 1.1.
- Provides hardware acceleration for isochronous and bulk transfer.
- USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver.
- Supports RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use).
- Simple plug and play, no driver and setting installation required.
- Powered by one DC 24V/2A adapter; bidirectional PoC powers the remote unit.

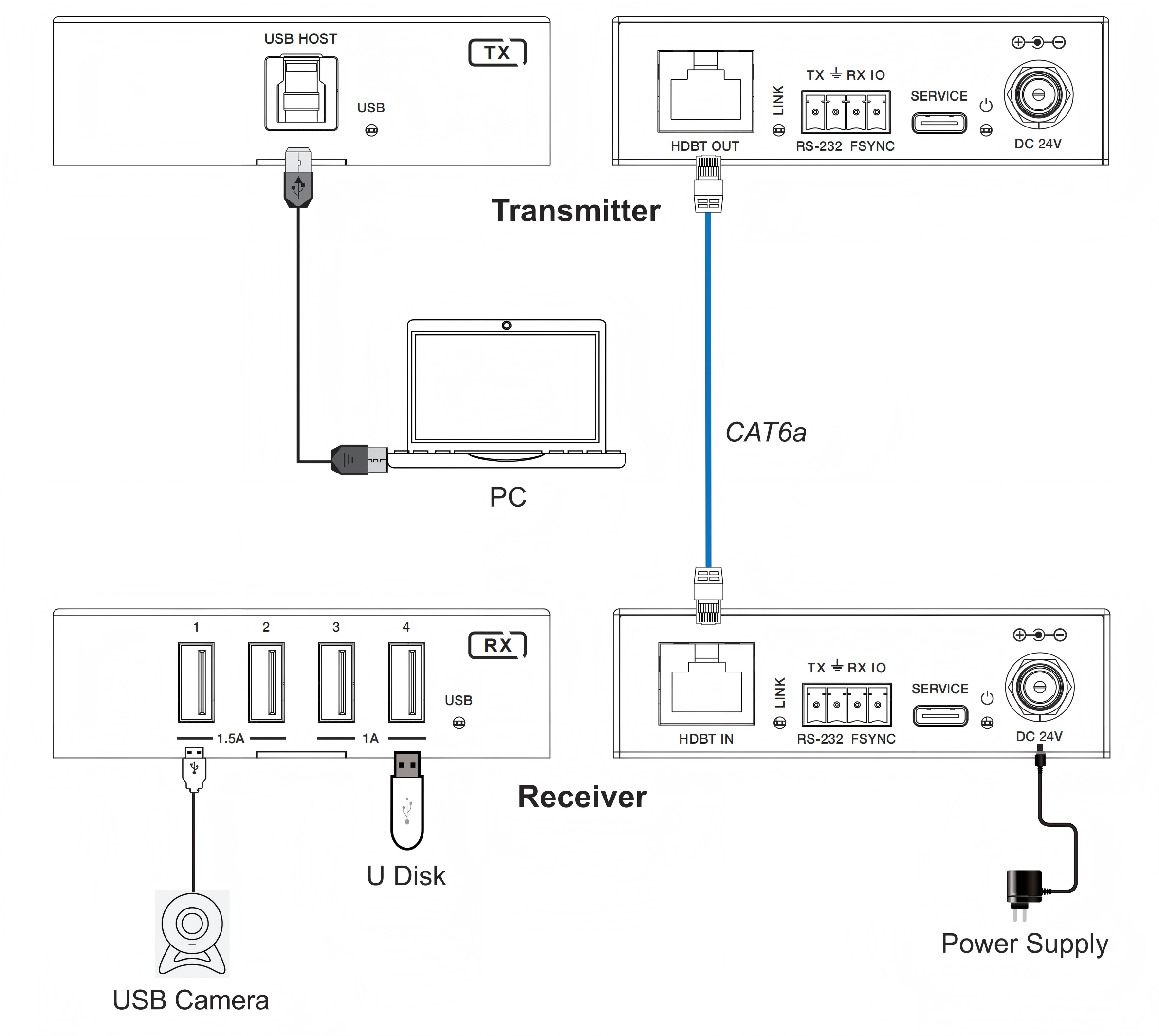

Application Diagram
