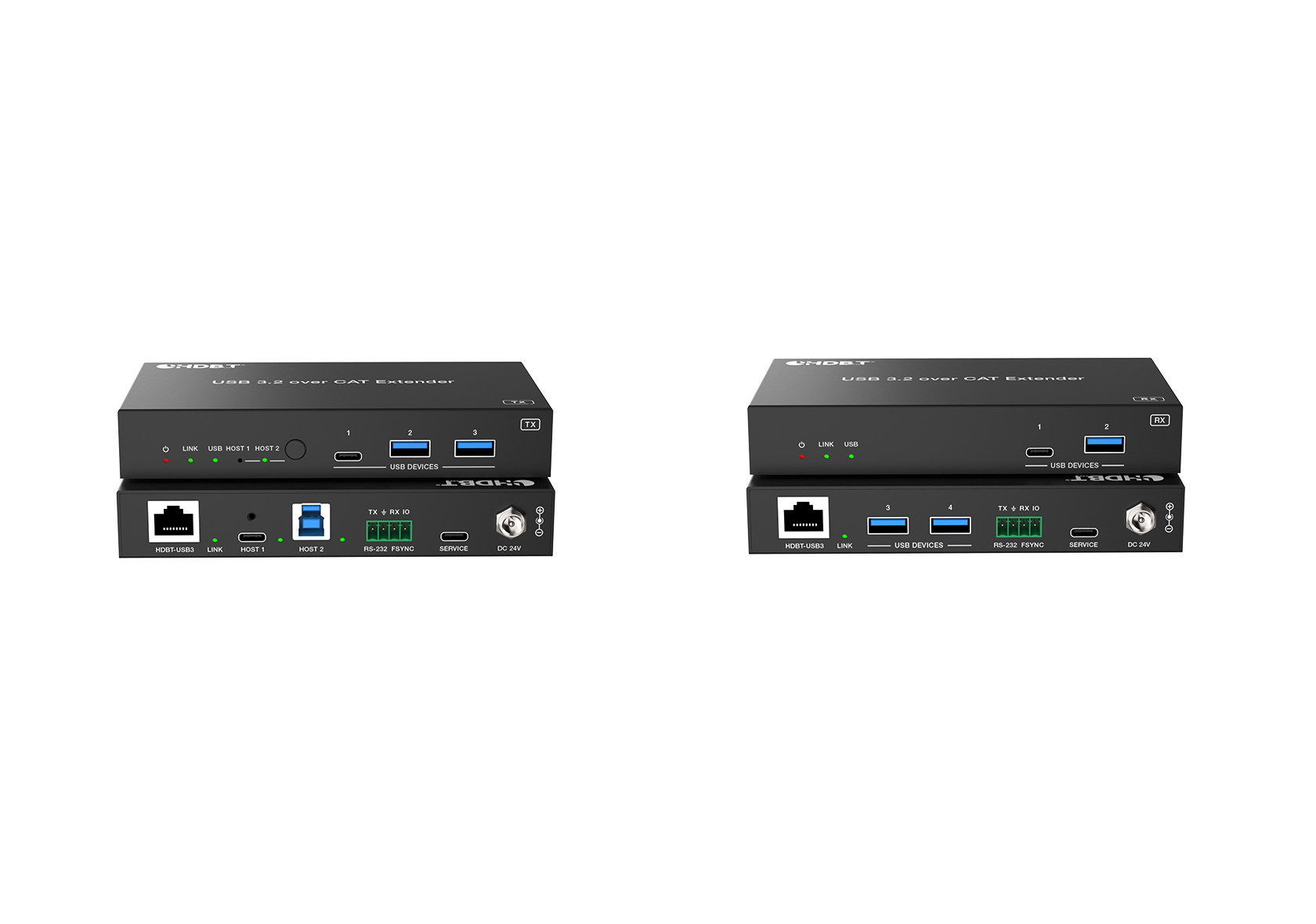

5Gbps USB 3.2 Extender – 100m with Dual-Host Switching
This USB Extender can extend USB 3.2 Gen 1 5Gbps signal to a distance up to 100m/328ft via a single CAT6a cable. The transmitter features one USB-C and one USB-B selectable input ports.
MV-UX100BC
Request a Quote
Key Features
- Extends USB 3.2 Gen 1 up to 100m/328ft via CAT6A cable.
- Supports USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps.
- Maintains backward compatibility with USB 2.0 and 1.1.
- Provides hardware acceleration for isochronous and bulk transfer.
- The transmitter provides 1× USB-B and 1× USB-C selectable input ports.
- The receiver provides 1× USB-C and 3× USB-A output ports (2× 5V@1A and 2× 5V@1.5A).
- Supports RS-232 pass-through and API control.
- Supports firmware upgrade via USB-C service port.
- Supports FSYNC GPIO pass-through for industry camera use.
- Powered by one DC 24V/3.75A adapter; bidirectional PoC powers the remote unit.

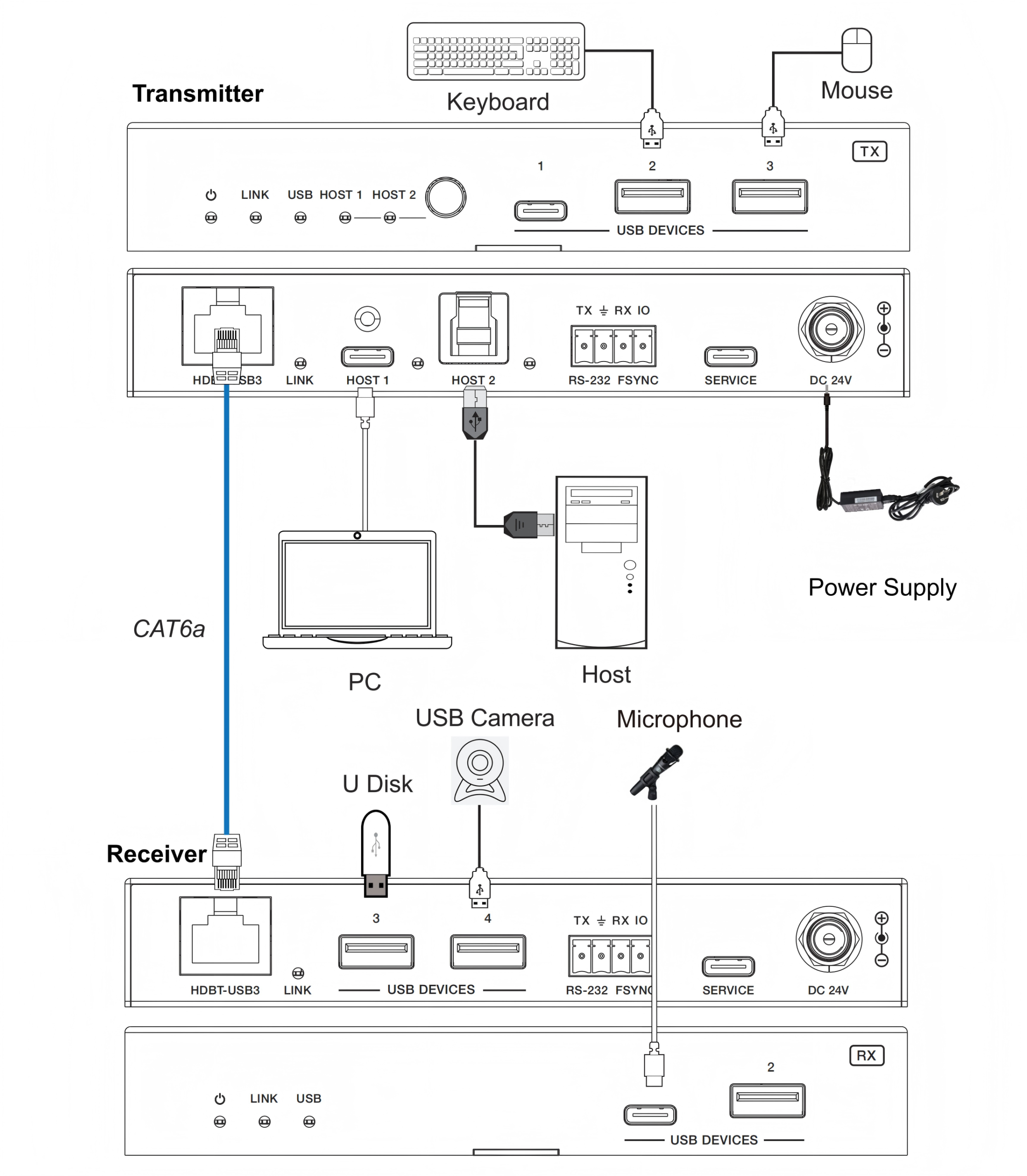

Application Diagram
