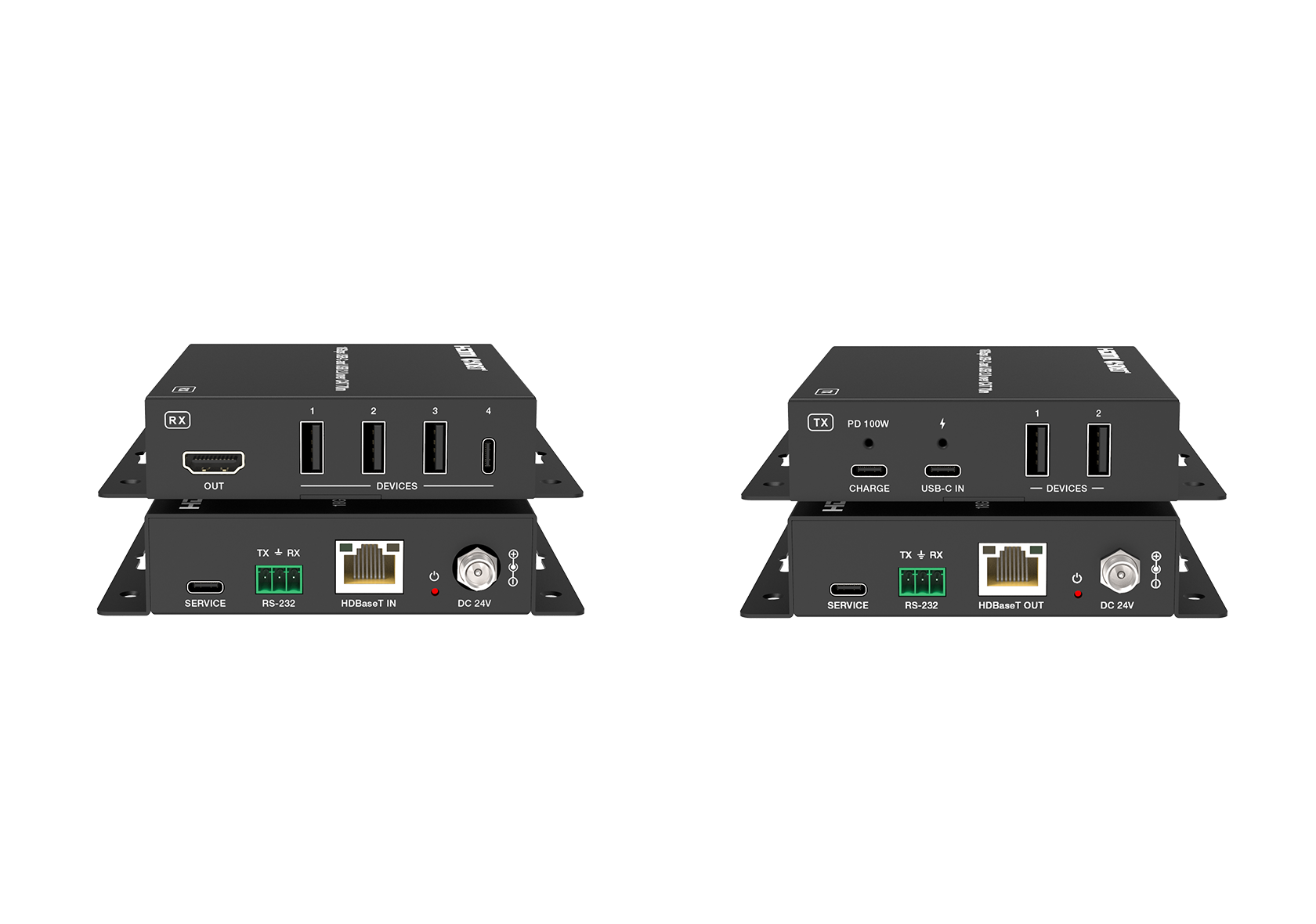

4K60 USB-C HDBaseT 3.0 Extender – 40m
This 18Gbps HDBaseT 3.0 extender can extend USB-C video and USB 2.0 signals up to 230ft/70m for 4K30Hz (4:4:4 8bit) and 130ft/40m for 4K60Hz (4:4:4 8bit) via a single CAT6A/7 cable. The transmitter box (TX) features with 1x USB-C input, 1x dedicated USB-C charging port and 2x local USB devices.
MV-HBT404KC3
Request a Quote
Key Features
- HDBaseT 3.0 extender with USB-C input.
- Supports HDR, HDR10+, Dolby Vision LLM and HLG pass-through.
- The transmitter features 1× USB-C input, 1× dedicated USB-C charging port and 2× local USB devices.
- USB-C input supports DP Alt mode standards (v1.2a) for A/V, USB 2.0 data and power charging up to 100W.
- The receiver features 1× HDMI output and 4× USB 2.0 devices.
- Extends high-speed USB 2.0 over HDBaseT 3.0.
- Each USB-A port provides power up to 5V/1A.
- RS-232 signal pass-through.
- Passes through audio formats including LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD Master Audio and DTS:X.
- Powered by one DC 24V/2.7A adapter; bidirectional PoC powers the remote unit.

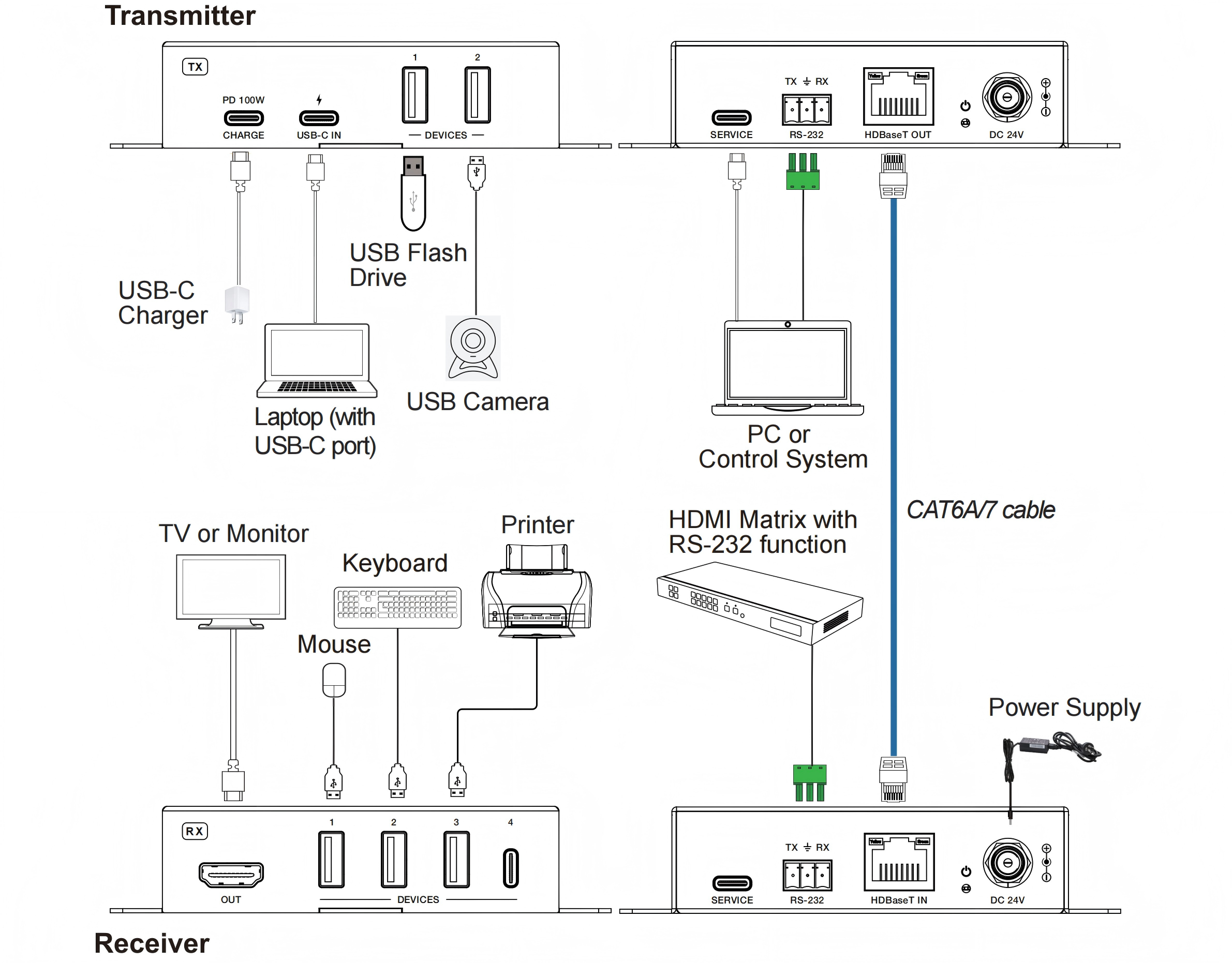

Application Diagram
