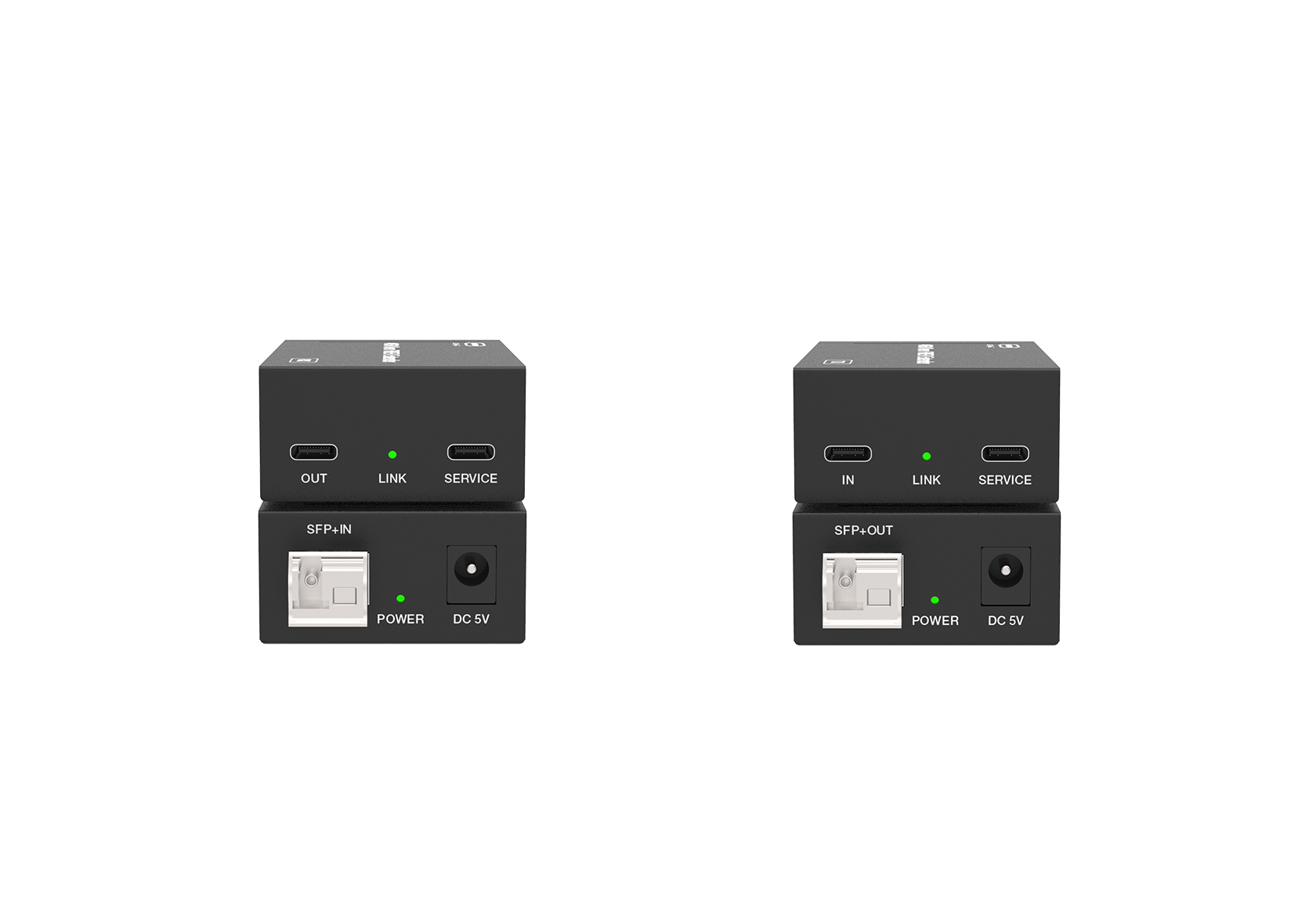

4K60 USB-C Fiber Extender – 10km
This fiber extender can extend video and audio signal up to 10km over a single-mode fiber cable. Video resolution up to 4K2K@50/60Hz RGB 4:4:4. This product has the advantages of strong anti-interference, high safety performance, small size and light weight, and has incomparable advantages in long-distance transmission.
MV-FXC4K
Request a Quote
Key Features
- Complies with USB Type C DisplayPort Alternative Mode.
- Complies with HDCP2.2/2.3 and 1.x.
- Supports HBR3, HBR2, HBR and RBR (8.1/5.4/2.7/1.62Gbps).
- Supports video resolutions up to 4K@50/60Hz 4:4:4.
- Supports any VESA standard resolution transmission.
- HDR10, HDR10+, Dolby Vision, HLG pass-through.
- Supports LPCM 7.1CH, Dolby 5.1,Dolby TrueHD, Dolby Atmos and DTS- HD Master, DTS:X Audio.
- Transmission distance is up to 10km over a single-mode fiber cable * Multi-mode fiber is supported in SFP modules. The distance over OM4 is up to 300m.
- EDID transmission from receiver to transmitter.
- Uses a compact enclosure for flexible installation.
- Each transmitter and receiver is powered by a DC 5V/1A adapter.

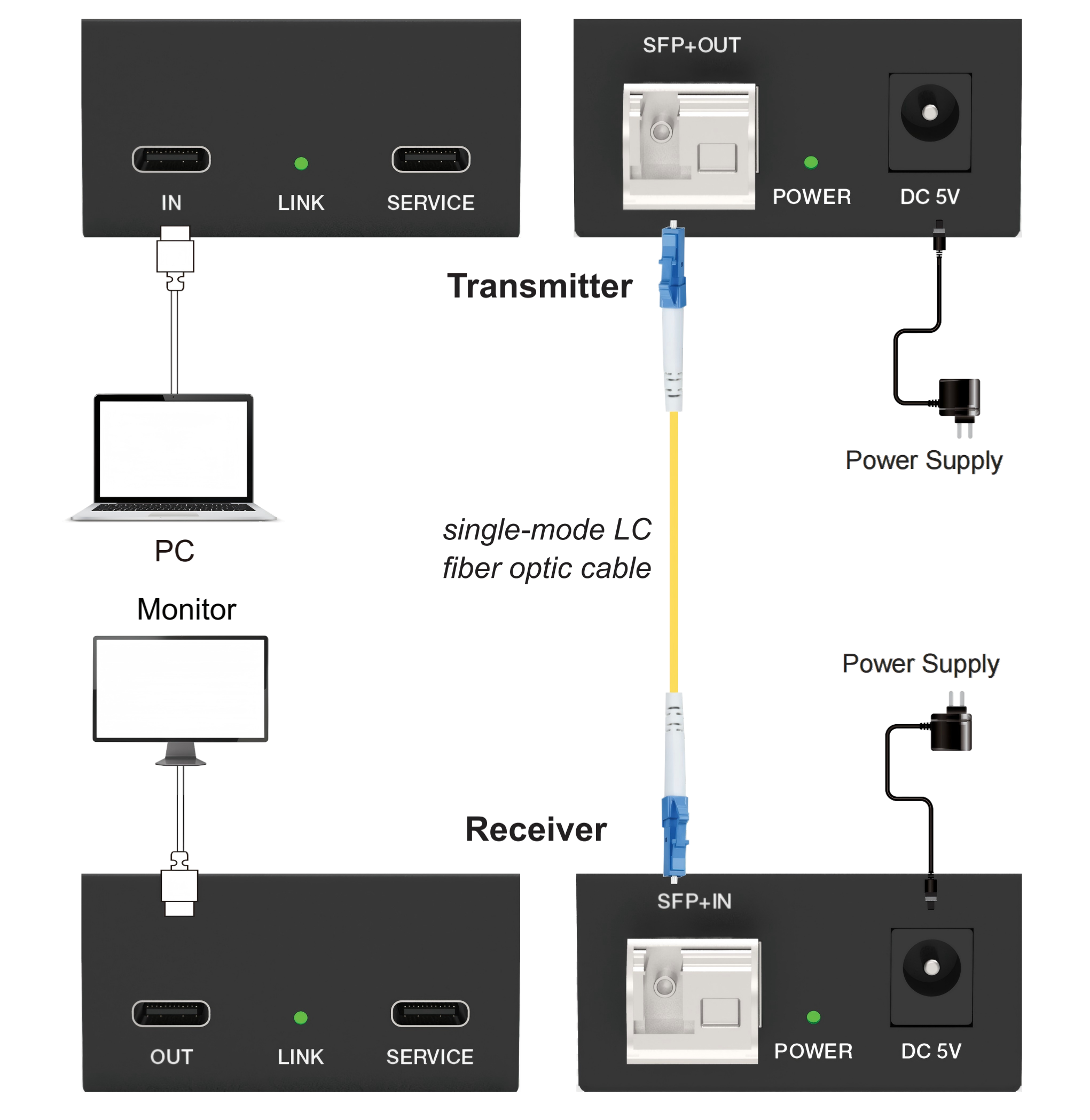

Application Diagram
