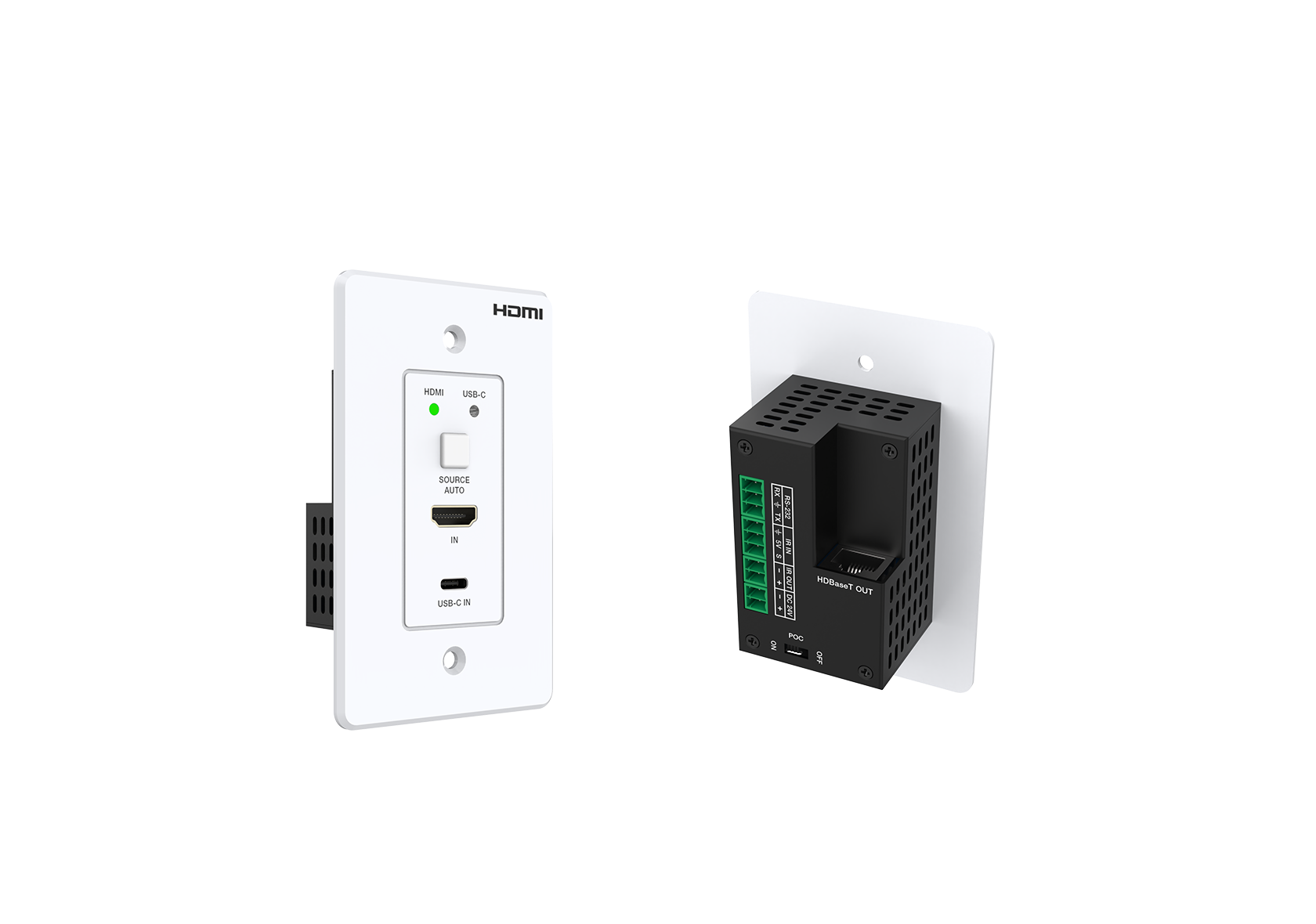

4K60 HDMI/USB-C HDBaseT Wall Plate Extender – 120m, US
This product can extend HDMI/USB-C signals up to 150m/492ft for 1080P @60Hz, or 120m/394ft for 4K2K@60Hz (4:4:4) via a single CAT6/6A cable. The wall-plate transmitter features one HDMI input and one USB-C input port, supporting manual and automatic switching modes.
MV-WP1504KHCUS
Request a Quote
Key Features
- DP 1.4, HDCP 2.2 compliant.
- The transmitter with 1-Gang US size wall plate supports two inputs: 1× HDMI and 1× USB-C.
- Supports video resolutions up to 4K@60Hz 4:4:4, and video bandwidth is 18Gbps.
- Supports auto switching and manual switching.
- Extends signals via CAT6/6A cable is up to: 120m/394ft for 4K@60Hz 4:4:4 signal; 150m/492ft for 1080p@60Hz 4:4:4 signal.
- Supports audio format: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio.
- Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through.
- Bidirectional IR, RS-232 and CEC control signal transmission.
- Supports bidirectional PoC.
- Powered by one DC 24V/1A adapter; bidirectional PoC powers the remote unit.

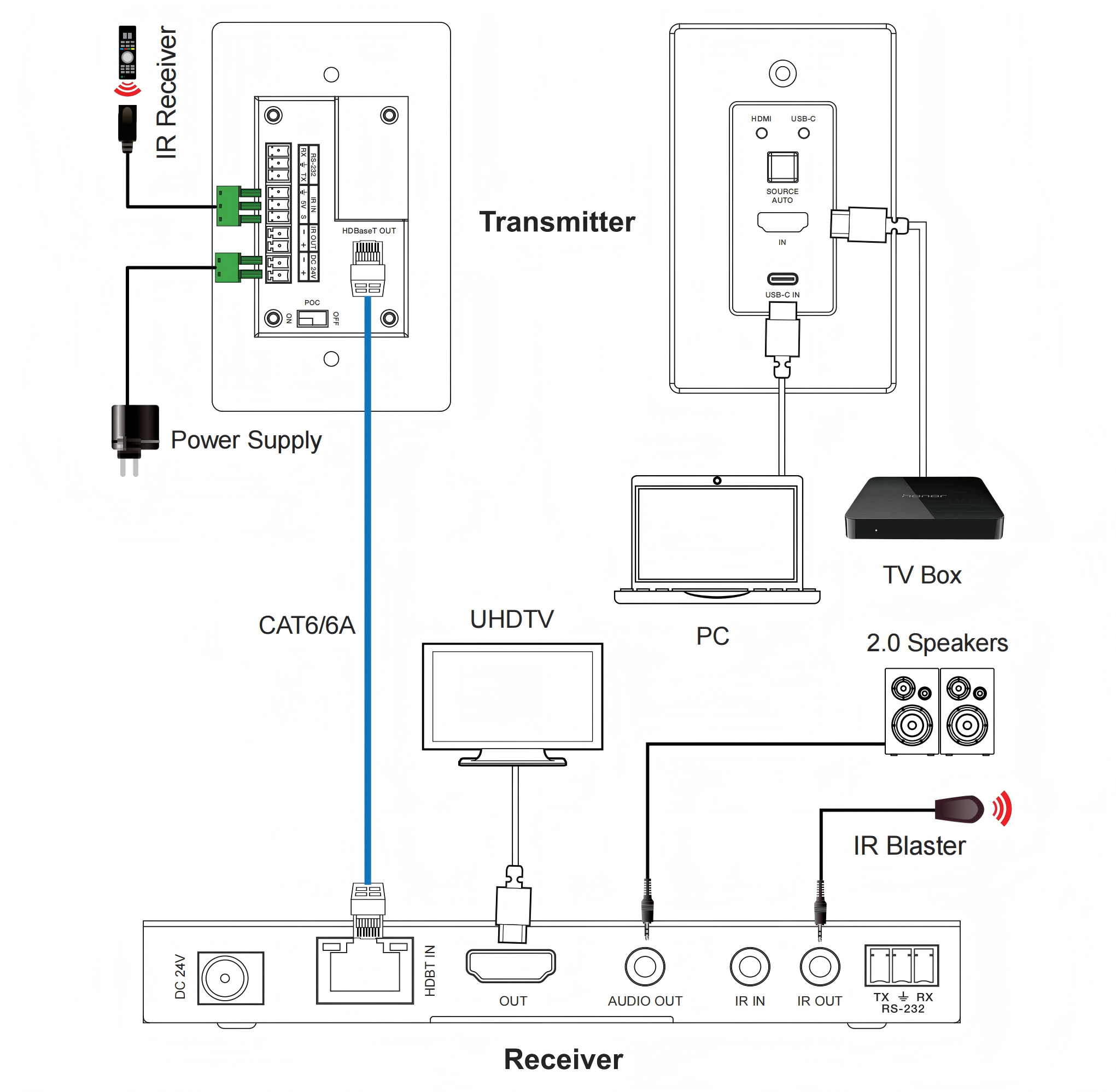

Application Diagram
