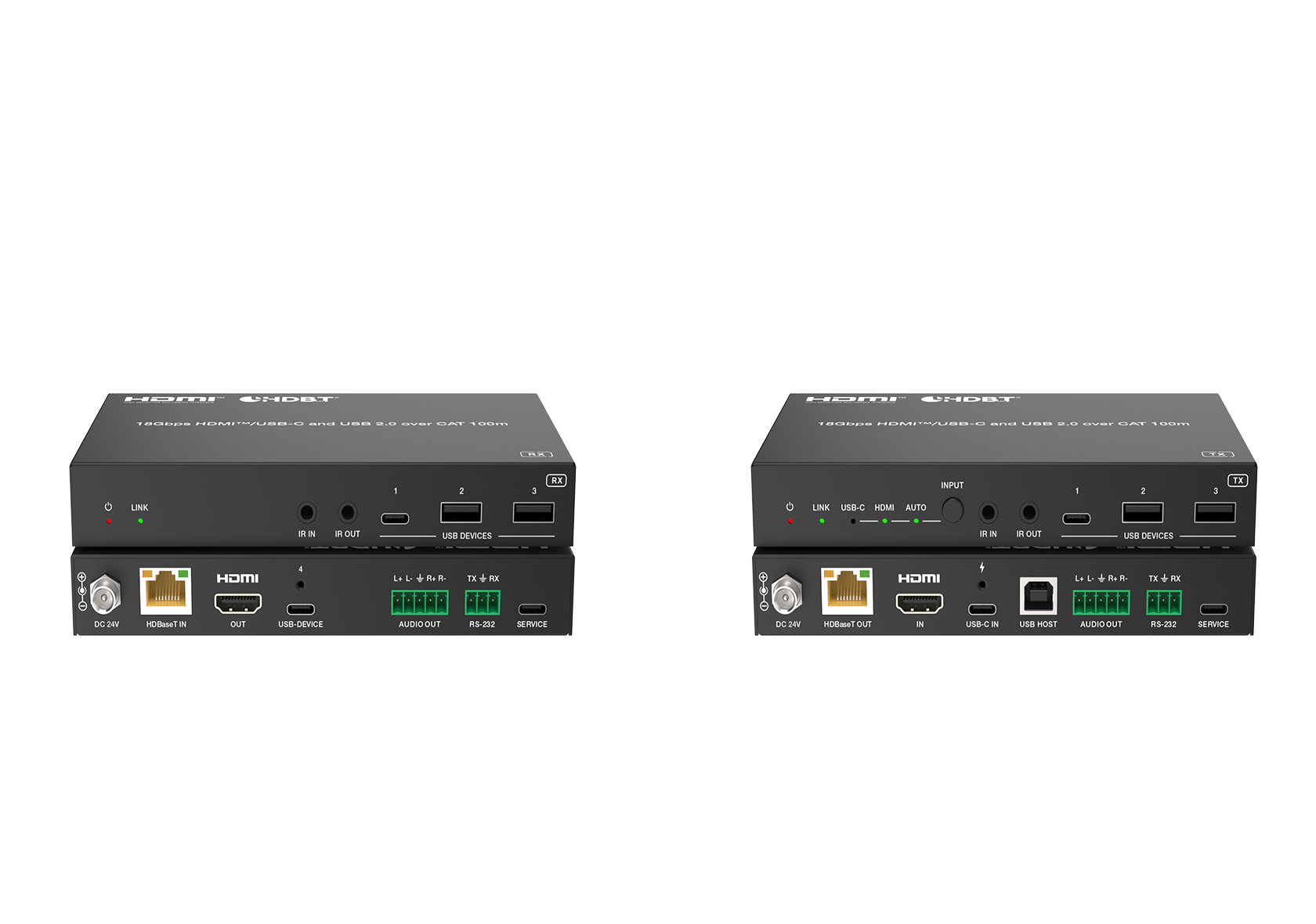

4K60 HDMI/USB-C HDBaseT Switcher Extender – 100m
Switch between HDMI and USB-C sources and extend 4K60 video plus USB 2.0 up to 100m over one CAT6/6A cable, with 60W USB-C charging, balanced audio de-embedding and room-control interfaces.
MV-HBT1004KHCU2
Request a Quote
Key Features
- Provides HDBaseT 2.0 extension with HDMI/USB-C dual inputs.
- Extends 4K60 video and USB 2.0 over single CAT6/6A cable up to 328ft/100m.
- The USB-C input supports DP Alt Mode up to 4K60Hz 4:4:4 (DP 1.2a, HDCP 2.3), USB 2.0 and 60W charging.
- The transmitter and receiver support balanced/unbalanced audio de-embedding.
- Provides EDID management.
- Provides USB 2.0 host switching and local USB 2.0 hub.
- Extends high-speed USB 2.0 over HDBaseT 2.0 up to 255Mbps.
- Provides RS-232 pass-through and device/API control.
- Controls display power via CEC/RS-232/IR out port.
- USB-C charging is available only when the transmitter is powered.
- Powered by one DC 24V/5A adapter; bidirectional PoC powers the remote unit.

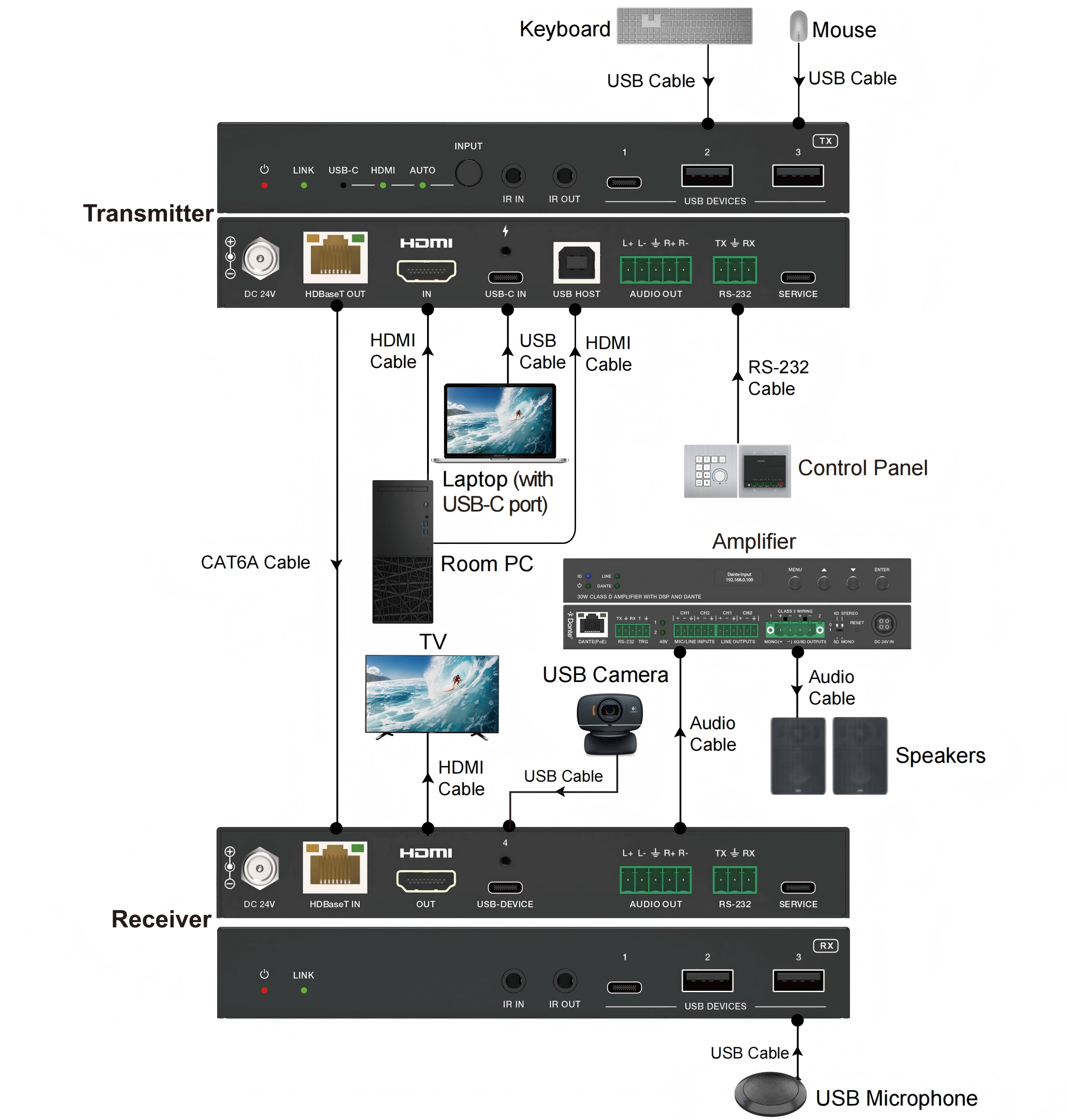

Application Diagram
