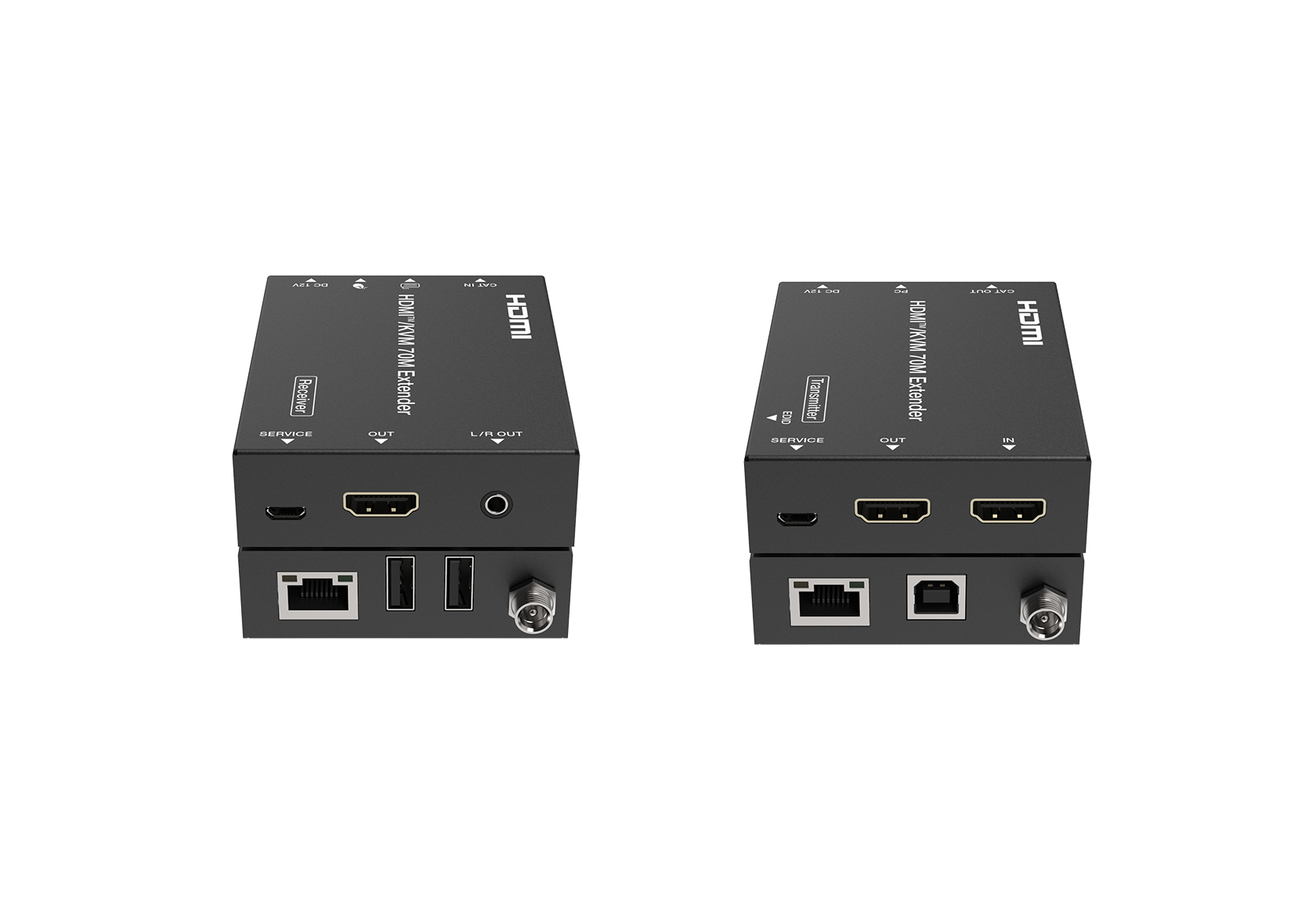

4K60 HDMI KVM Extender – 70m
Extend 4K60 4:4:4 HDMI video and USB keyboard/mouse control up to 70m/230ft over CAT6/6a, with analog audio extraction, HDR support and bidirectional PoC.
MV-EX704KK
Request a Quote
Key Features
- Complies with HDCP 2.2.
- Supports 18Gbps video bandwidth.
- Supports video resolution up to 4K@60Hz RGB/YCBCR 4:4:4, as specified in HDMI 2.0b.
- The transmission distance can be extended up to 230ft/70m via a single CAT6/6a cable.
- Supports HDR, HDR10, HDR10+, Dolby Vision, HLG.
- Supports audio formats including LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+).
- Supports 3.5mm analog audio de-embedding, audio is output through the L/R OUT port of the receiver.
- Passes EDID data function between the source device and display device.
- Supports bidirectional PoC (Power over Cable) function.
- With USB KVM pass-through function, USB1.1 compliant, support remote-control by keyboard and mouse.
- Powered by one DC 12V/1A adapter; bidirectional PoC powers the remote unit.

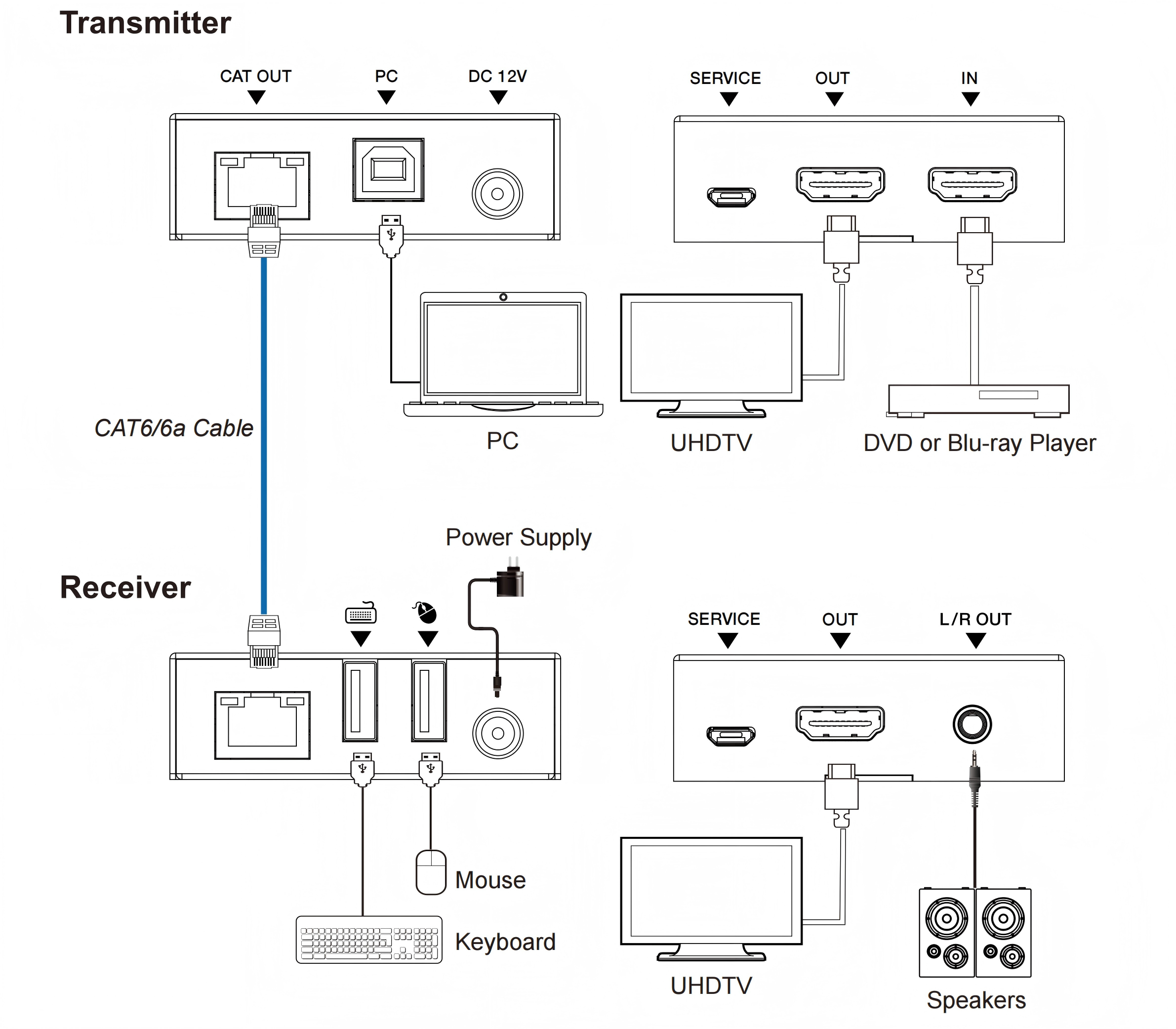

Application Diagram
