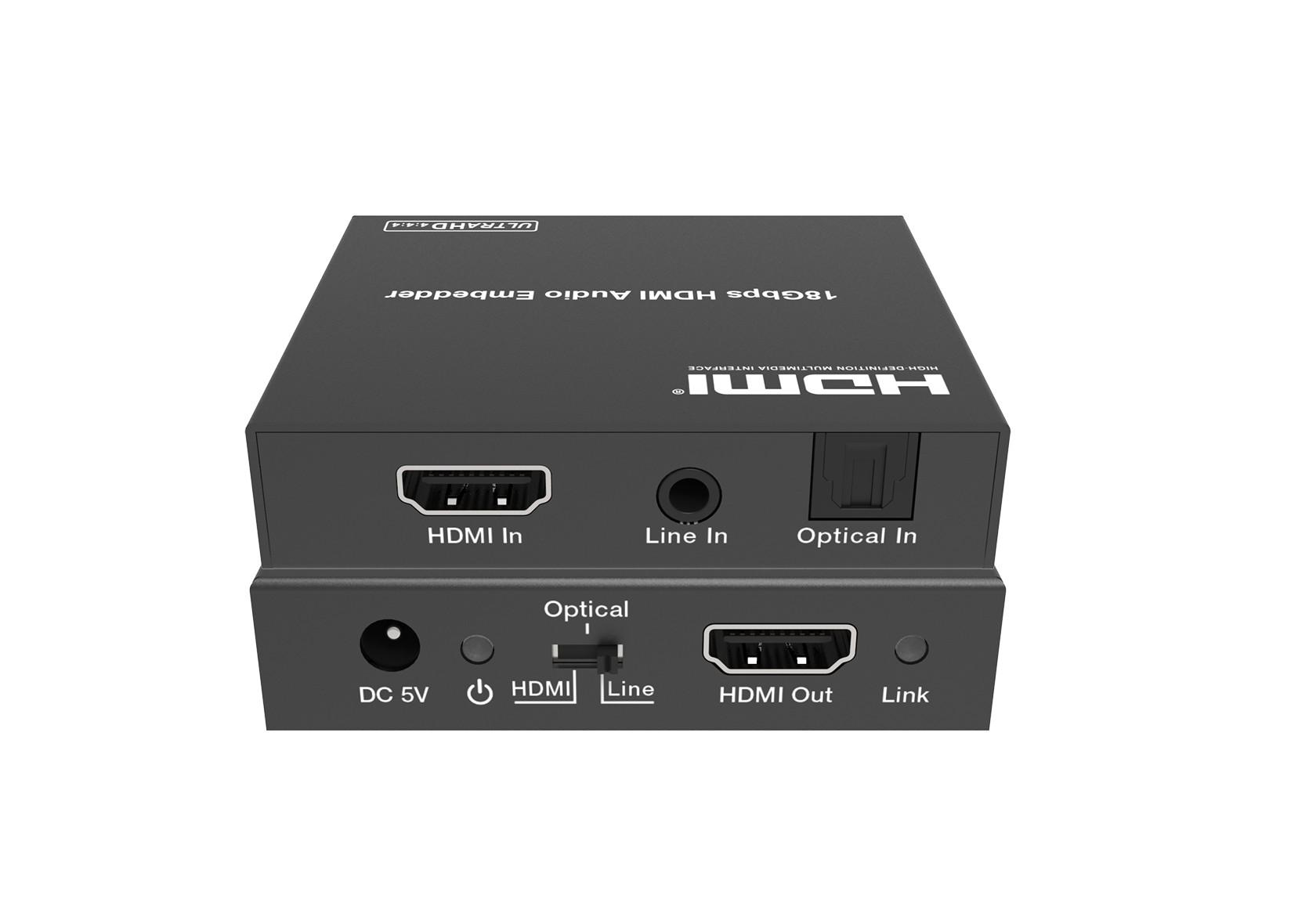

4K60 HDMI Audio Embedder
The HDMI 18Gbps Audio Embedder could embed audio signals from digital optical or analog stereo Line audio to HDMI output. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444).
MV-AIHD
Request a Quote
Key Features
- Embeds multi-channel optical (SPDIF) or Line analog audio to HDMI output.
- Optical audio supports LPCM 2CH, Dobly Digital.1CH, DTS.1CH.
- Analog audio supports PCM2.0.
- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI 1.0 compliant.
- Video resolutions up to 4K@50/60Hz (YUV444).
- Supports HDMI High Bit Rate(HBR) audio pass through.
- 10bits HDR (High Dynamic Range) pass through.
- Supports CEC bypass.
- Powered by a DC 5V/1A adapter.

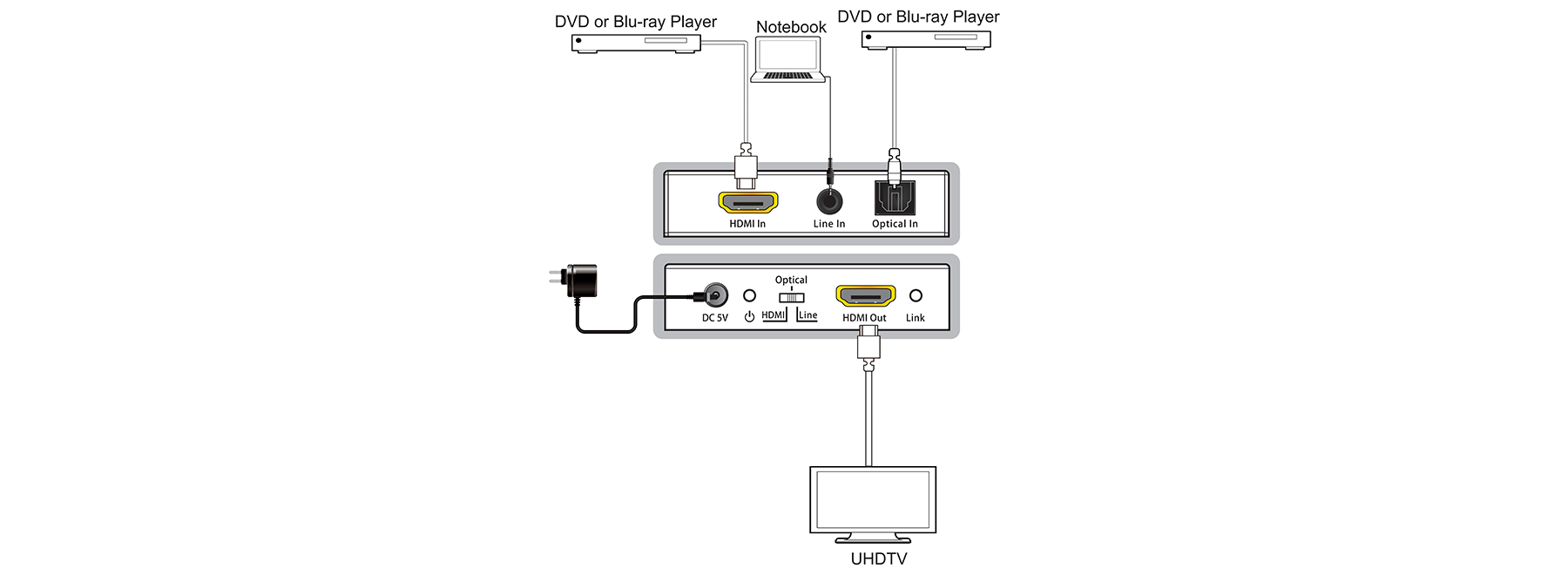

Application Diagram
