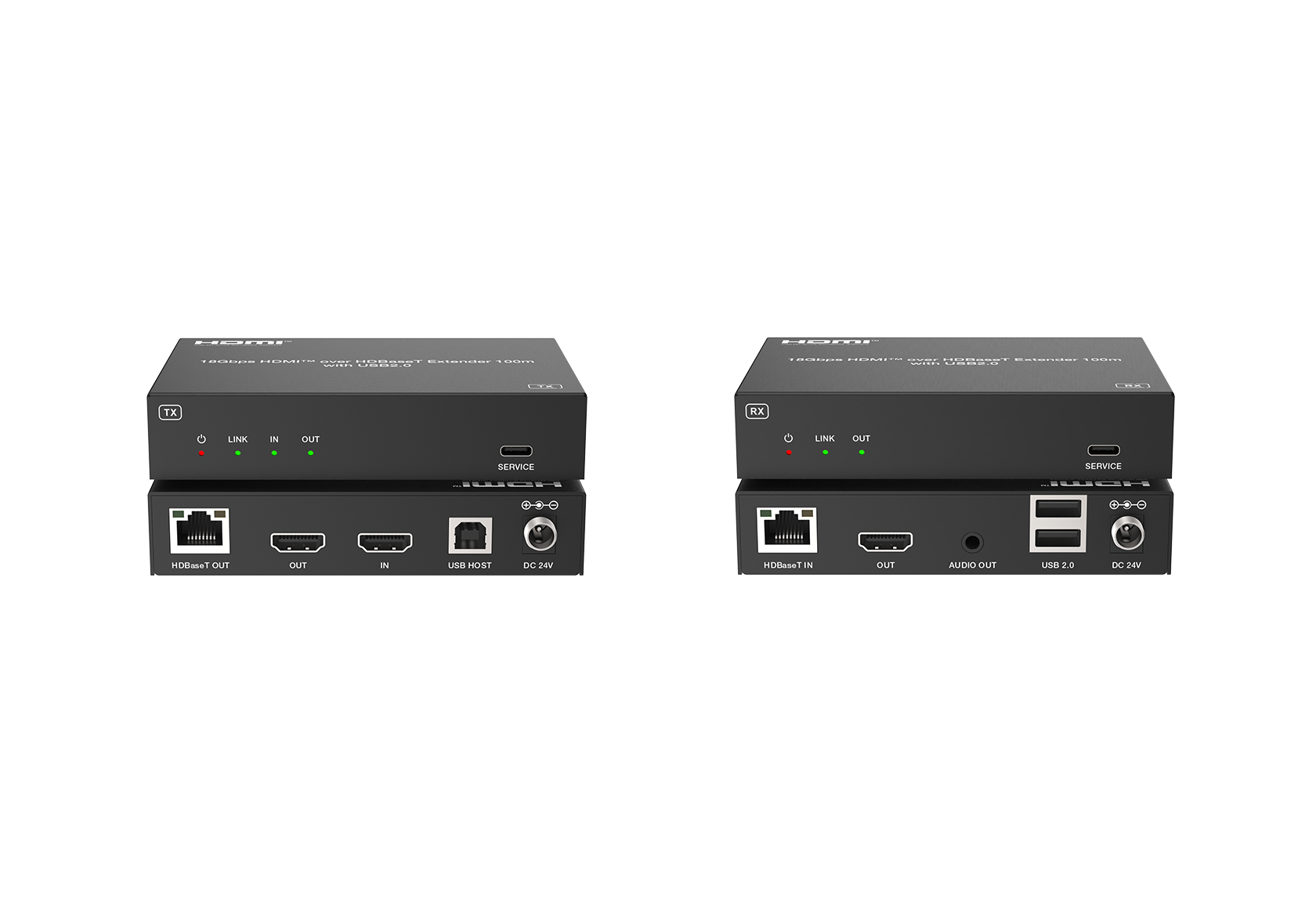

4K60 HDBaseT Extender – 100m with USB 2.0
This is a high-performance, long-reach HDBaseT extender, which can transmit HDMI and USB 2.0 signal to a long distance up to 100m/328ft over CAT5e/6 cable. Video resolution is up to 4K2K@60Hz (4:4:4).
MV-HBT1004KU2
Request a Quote
Key Features
- Complies with HDCP 2.3/2.2/1.x.
- Supports video bandwidth up to 18Gbps.
- Supports video resolutions up to 4K@60Hz (4:4:4), as specified in HDMI 2.0b.
- Extends signals up to 100m/328ft via CAT5e/6 cable.
- USB 2.0 signal transmission.
- Supports CEC pass-through.
- Passes through HDMI audio formats including LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X.
- Supports audio de-embedding on the Receiver.
- Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through.
- Supports bidirectional PoC (Power over Cable) function.
- Powered by one DC 24V/1A adapter; bidirectional PoC powers the remote unit.

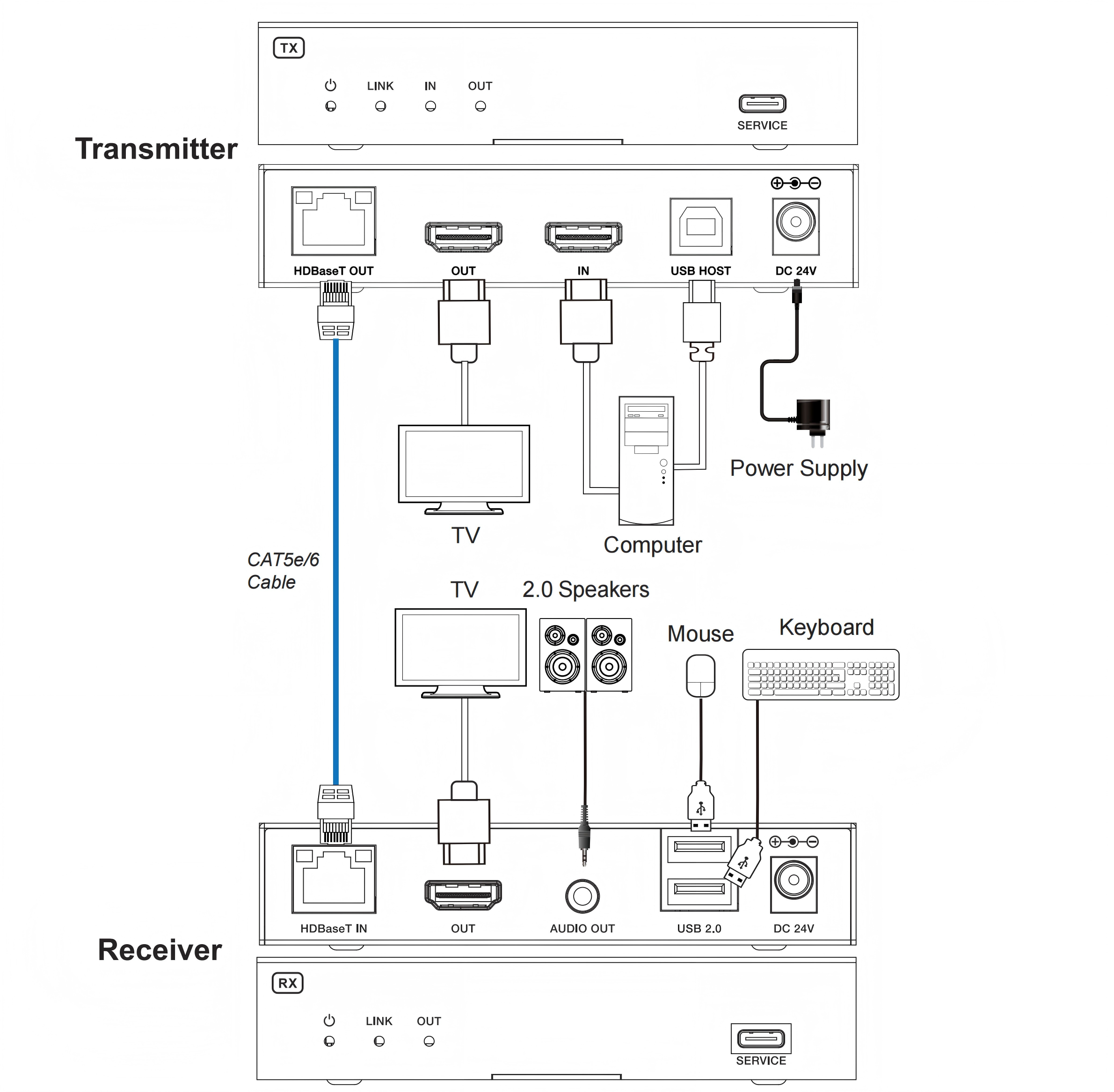

Application Diagram
