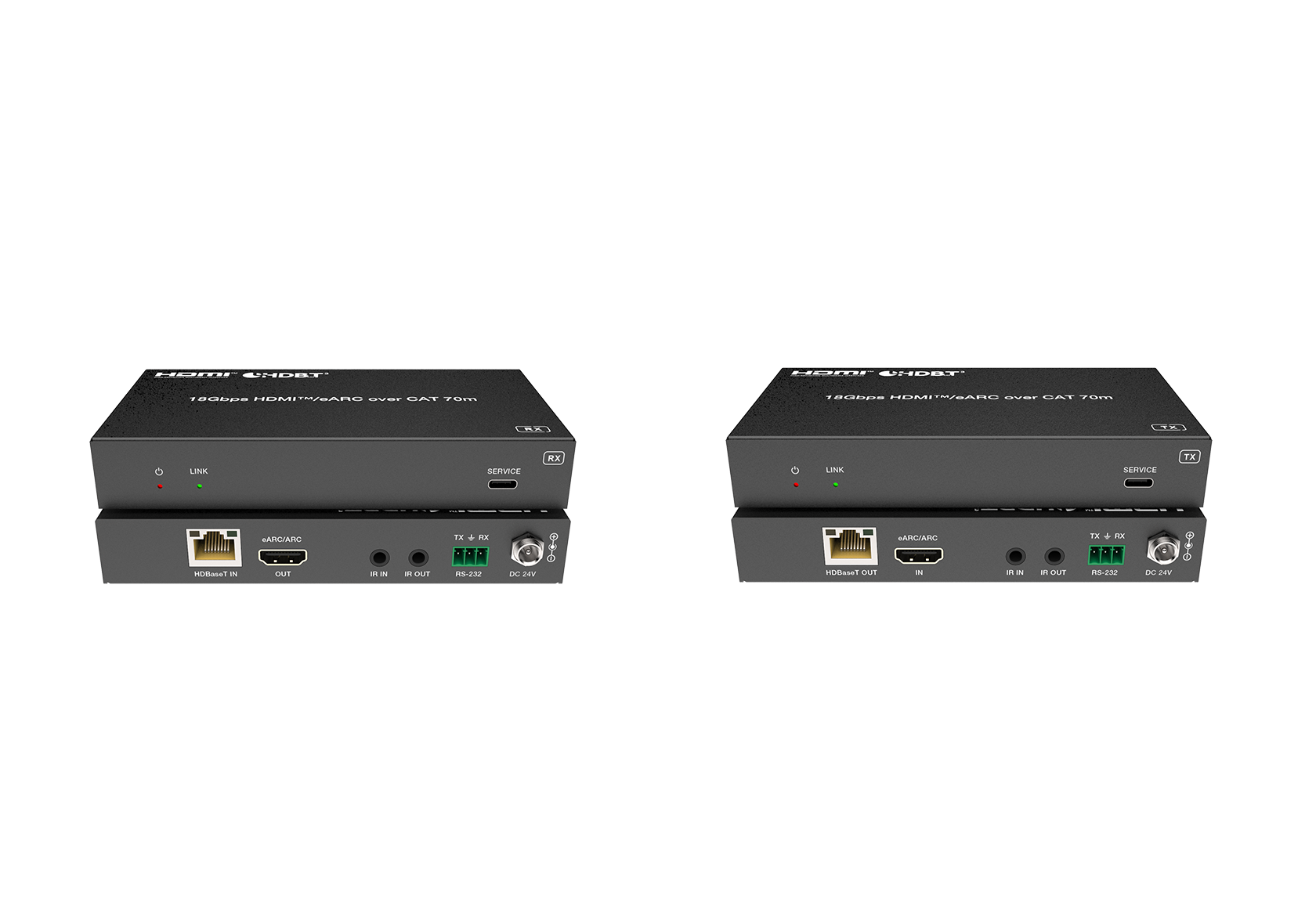

4K60 HDBaseT 3.0 Extender – 40m with eARC
This 4K HDBaseT 3.0 Extender can extend uncompressed HDMI and eARC signals, RS-232 and bi-directional IR signals up to 230ft/70m (4K30/1080P) or 131ft /40m (4K60) via a single CAT6A/7 cable. Video resolution is up to 4K2K@ 60Hz YUV 4:4:4. This Extender supports bi-directional RS-232, IR signal pass- through and bi-directional PoC function.
MV-HBT404KEA3
Request a Quote
Key Features
- Complies with HDCP 2.3, 18Gbps video bandwidth.
- Supports video resolution up to 4K@60Hz (YUV 4:4:4), as specified in HDMI 2.0b.
- 4K60 signal transmission distance up to 131ft /40m via a single CAT6A/7 cable.
- 4K30/1080p signal transmission distance up to 230ft/70m via a single CAT6A/7 cable.
- The transmitter provides 1× HDMI input with eARC output, 1× IR input, 1× IR output, 1× RS-232, 1× HDBT output.
- The receiver provides 1× HDBT input, 1× HDMI output with eARC input, 1× IR input, 1× IR output, 1× RS-232.
- Supports HDR, HDR10+, Dolby Vision LLM, HLG.
- EARC/ARC pass-through from RX's TV to TX's AV receiver or soundbar.
- RS-232 signal pass-through and API control.
- Powered by one DC 24V/1A adapter; bidirectional PoC powers the remote unit.

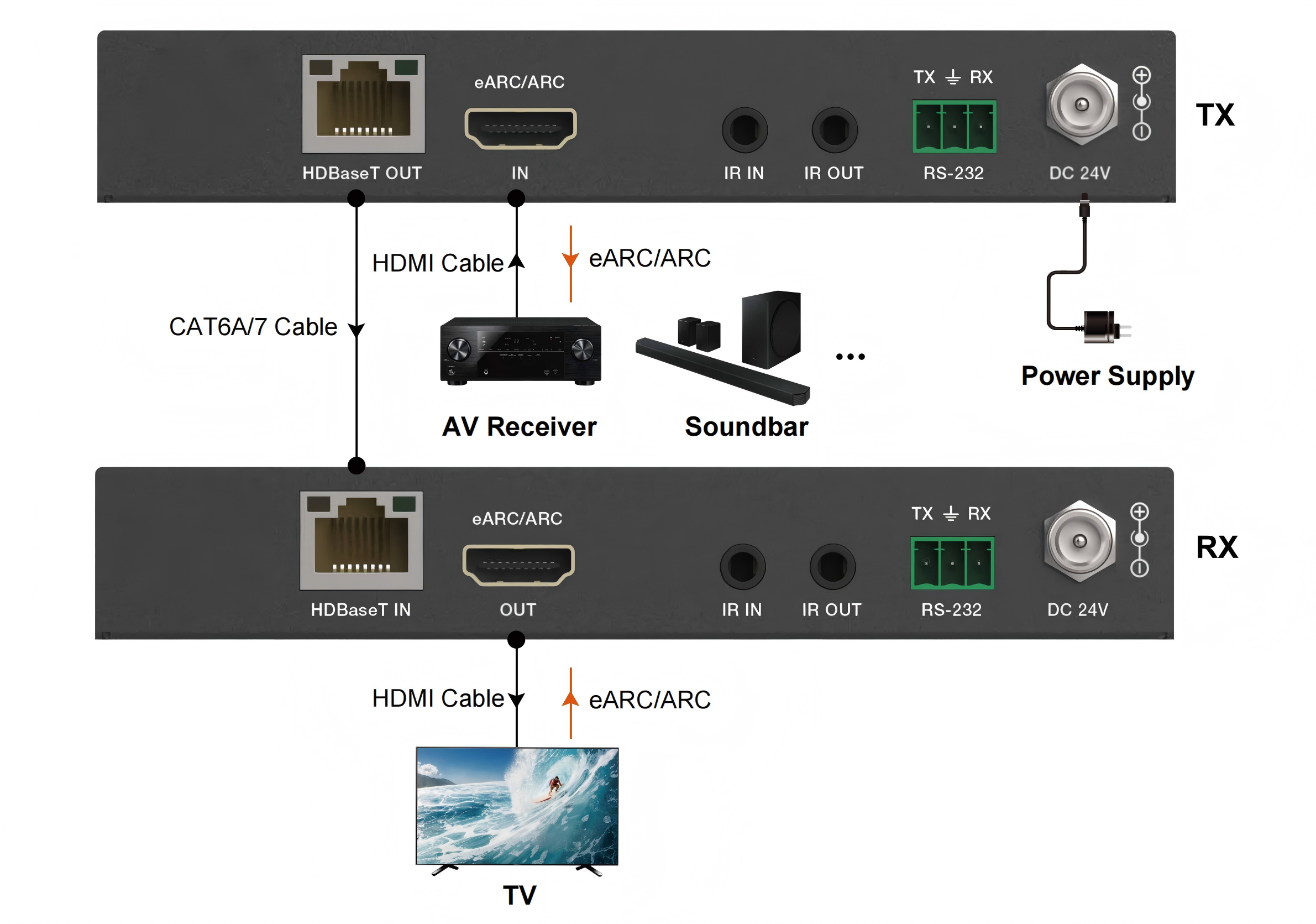

Application Diagram
