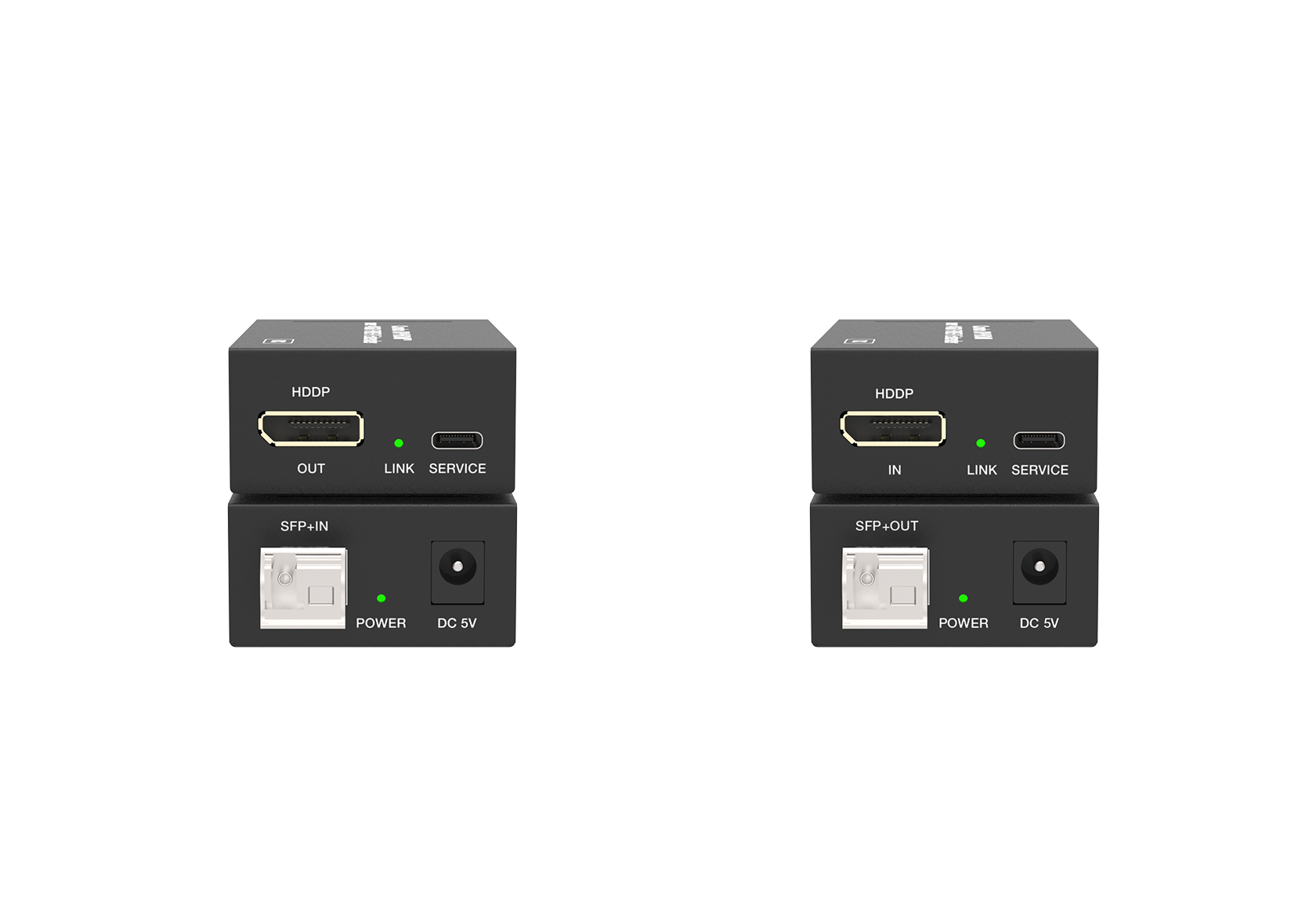

4K60 DisplayPort/HDMI Fiber Extender – 10km
This combo DP/HDMI Extender can extend HDMI/DP signal up to 10km over a single-mode fiber optic cable. It allows for either HDMI or DisplayPort connection on input and output ports, for flexible installation and mixed display configurations between both ends.
MV-FXDH4K
Request a Quote
Key Features
- DisplayPort/HDMI combo connector supports both DisplayPort and HDMI video interfaces.
- Complies with HDCP 2.3, DisplayPort 1.4 ALT Mode.
- Video bandwidth 8.1/5.4/2.7/1.62Gbps (DP) and 18Gbps (HDMI).
- Supports video resolutions up to 4K@60.
- Supports any VESA standard resolution transmission.
- Automatic recognition of DP/HDMI on input and output ports.
- Extends signals up to 10km over a single-mode fiber optic cable * Multi-mode fiber is supported in SFP modules. The distance over OM4 is up to 300m.
- Supports LPCM 7.1CH, Dolby 5.1, Dolby TrueHD, Dolby Atmos and DTS-HD Master, DTS:X Audio.
- HDR10, HDR10+, Dolby Vision, HLG pass-through.
- EDID transmission from Receiver to Transmitter.
- Each transmitter and receiver is powered by a DC 5V/1A adapter.

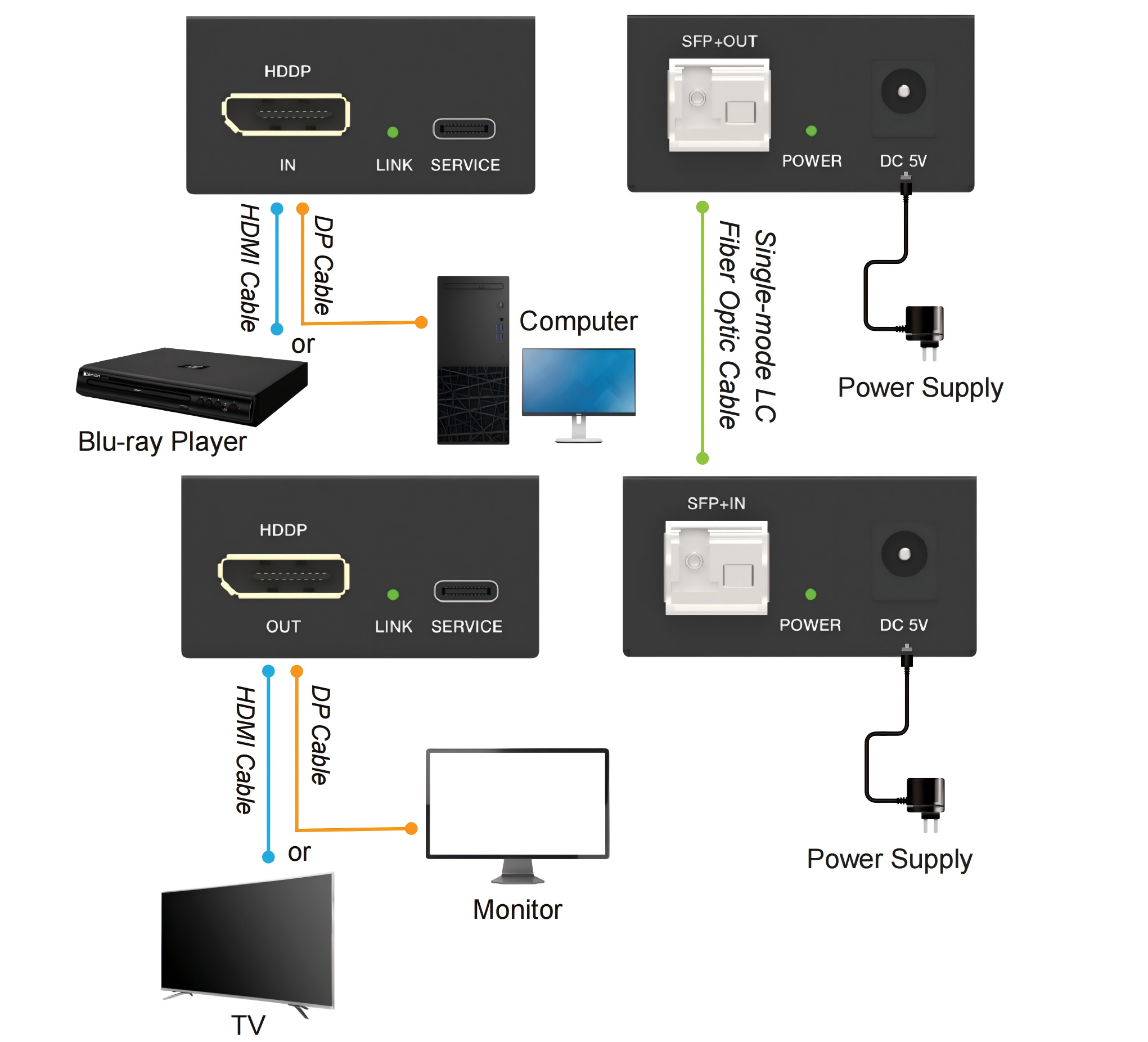

Application Diagram
