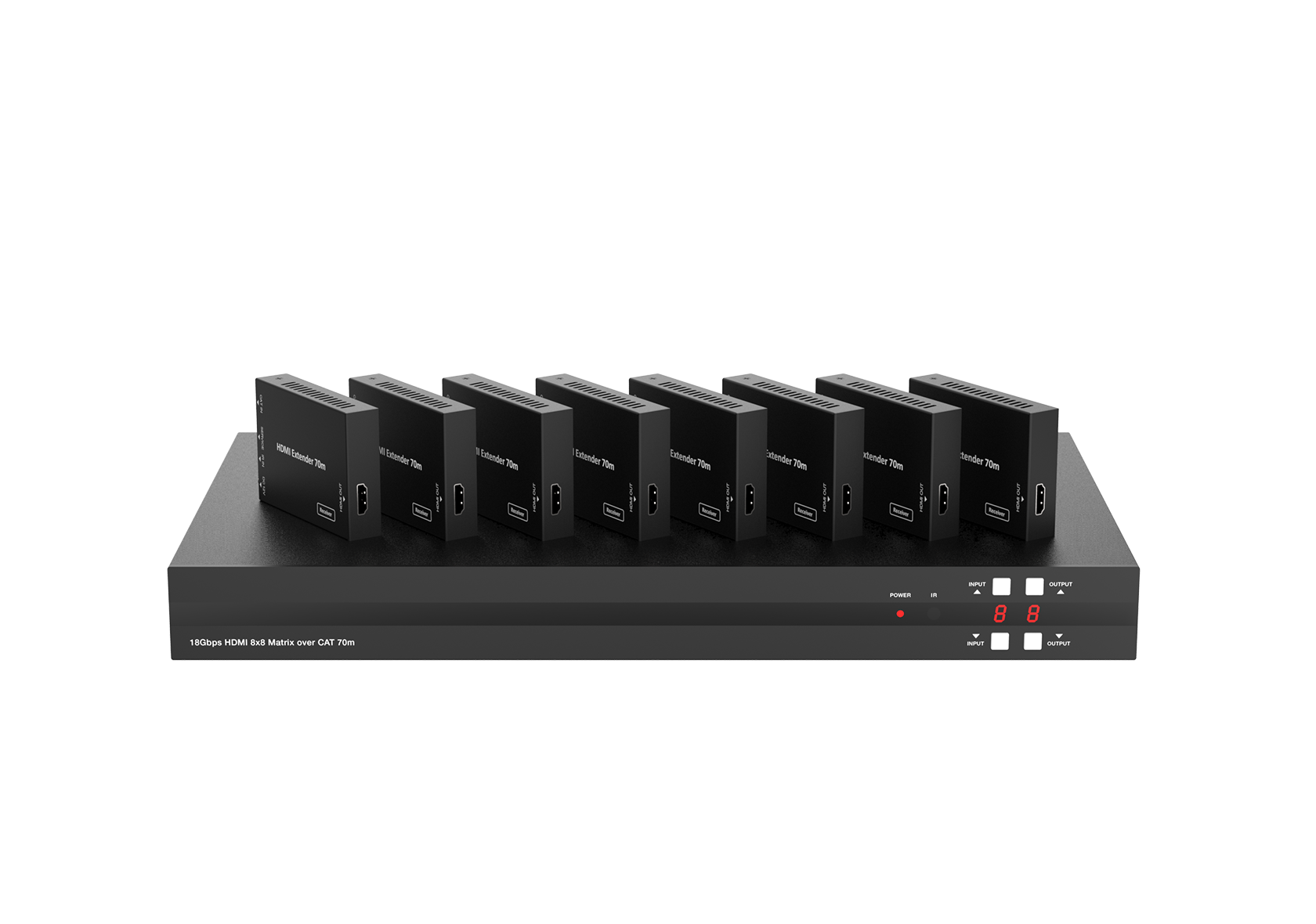

4K60 8×8 HDMI Matrix over CAT – 70m
The 18Gbps 8x8 HDMI Matrix can connect 8 HDMI sources to 16 displays. It features eight HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously.
MV-MX8870
Request a Quote
Key Features
- HDMI 2.0b and HDCP 2.2/1.x compliant.
- Supports video resolutions up to 4K@60Hz (YUV 4:4:4) on all HDMI & CAT ports.
- 8 HDMI inputs, 8 HDMI & CAT mirrored outputs.
- HDMI ports support 18Gbps lossless compressed video bandwidth.
- Supports HDR, HDR10, HDR10+, Dolby Vision, HLG.
- CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable.
- Passes through HDMI audio up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio).
- Advanced EDID management and CEC control are supported.
- Supports control via front panel buttons, IR remote, RS-232, LAN and Web GUI.
- The matrix is powered by a DC 12V/5A adapter; 12V PoC powers the CAT receivers.

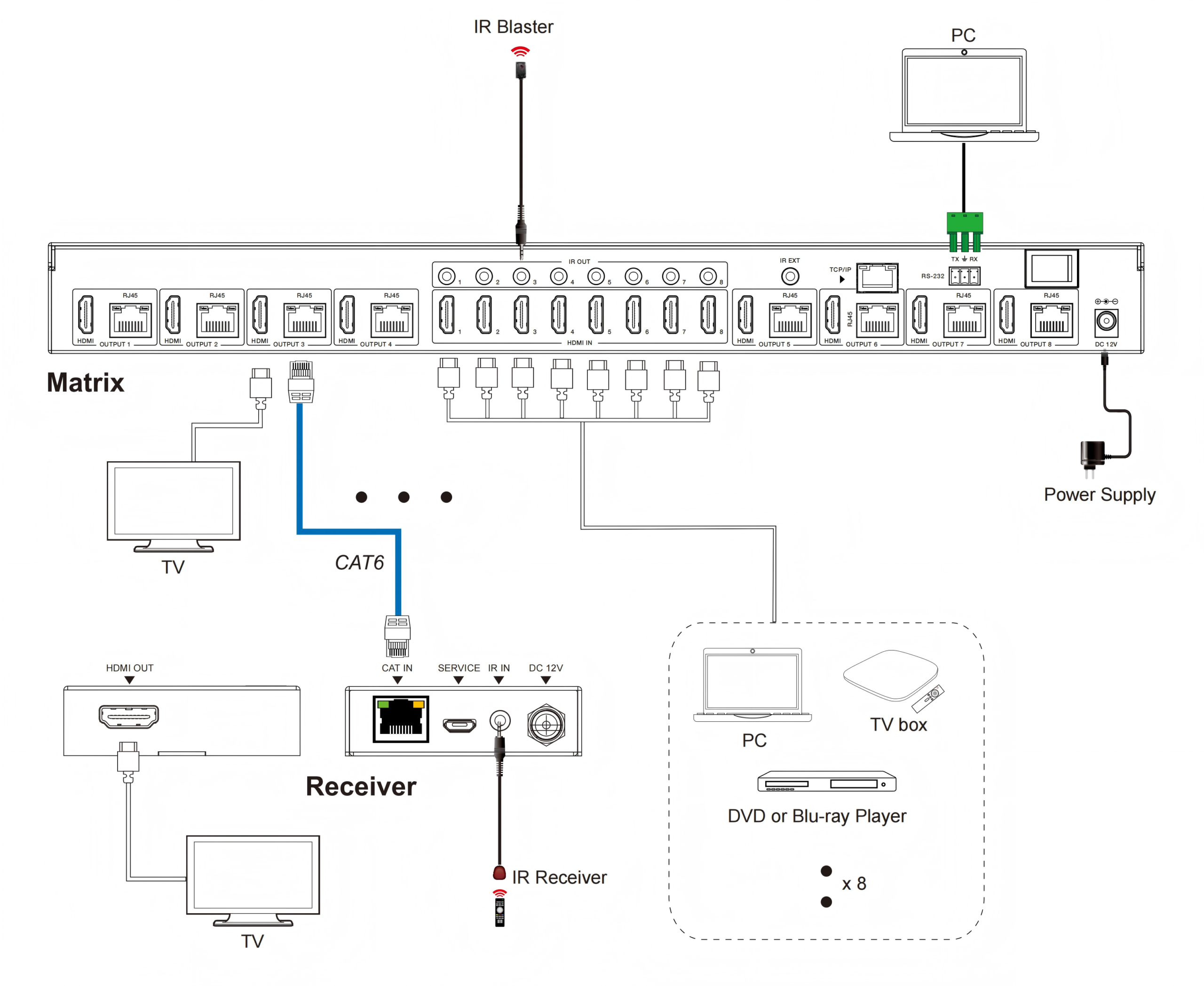

Application Diagram
