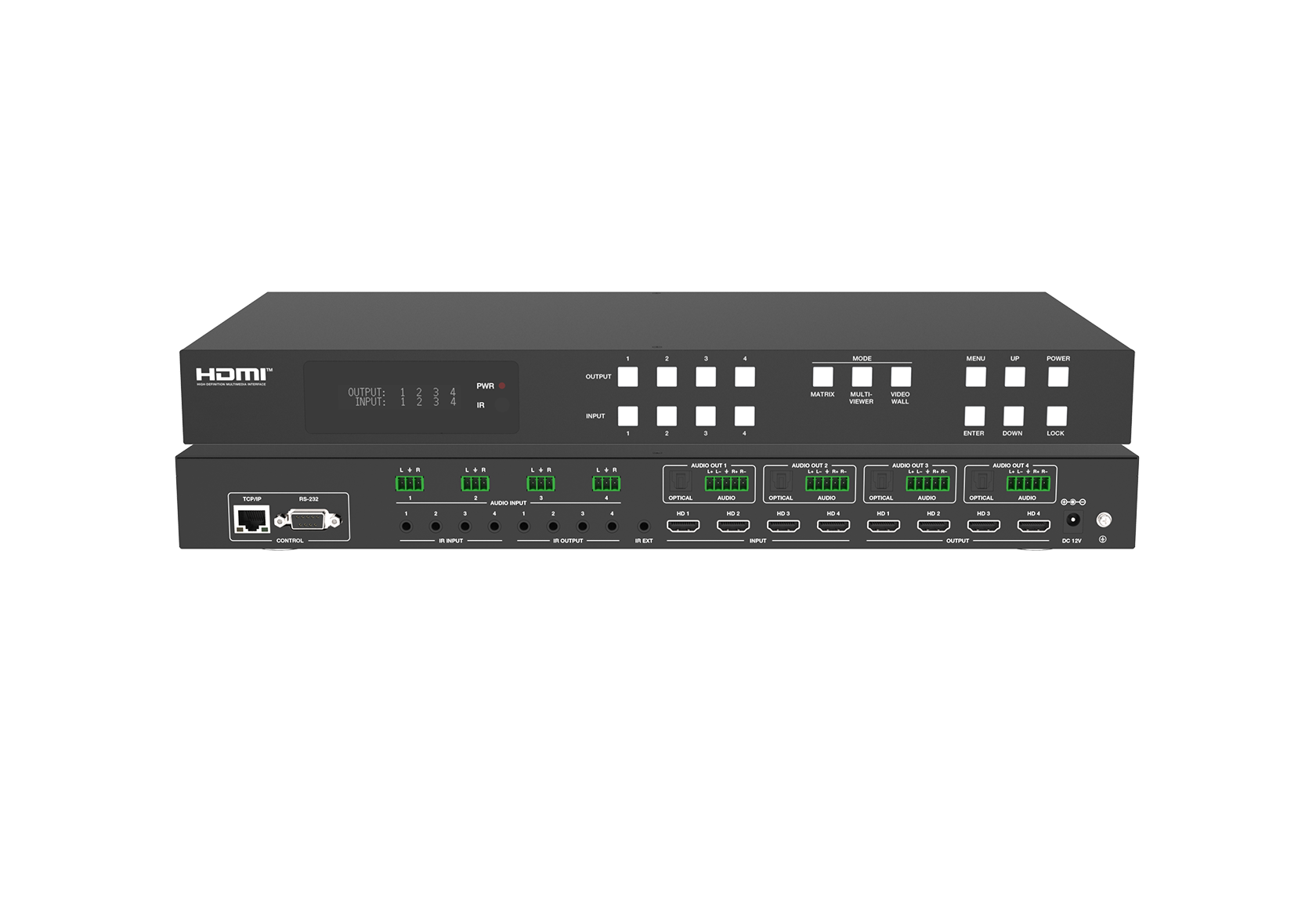

4K60 4×4 Seamless HDMI Matrix with Video Wall & Multiview
The 18Gbps 4x4 Seamless Matrix is a perfect solution for video transmission from 4 HDMI sources to 4 HDTV displays. It has video wall and multi-viewer functions with multiple display modes. 4x4 IR matrix, audio embedded and de-embedded are also supported.
MV-MX444KVW
Request a Quote
Key Features
- Complies with HDCP 2.2.
- Supports video resolution up to 4K@60Hz 4:4:4 and 18Gbps video bandwidth, as specified in HDMI 2.0.
- Supports 12 display categories in multi-viewer mode, and 9 splicing modes in video wall mode.
- Passes through HDMI audio formats including LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS- EX, DTS-96/24, DTS High Res, DTS-HD Master Audio.
- Supports CEC control, and multiple video resolution output.
- Provides advanced EDID management.
- Supports control via front panel buttons, IR remote, RS-232, and Web GUI.
- Powered by a DC 12V/2.5A adapter.

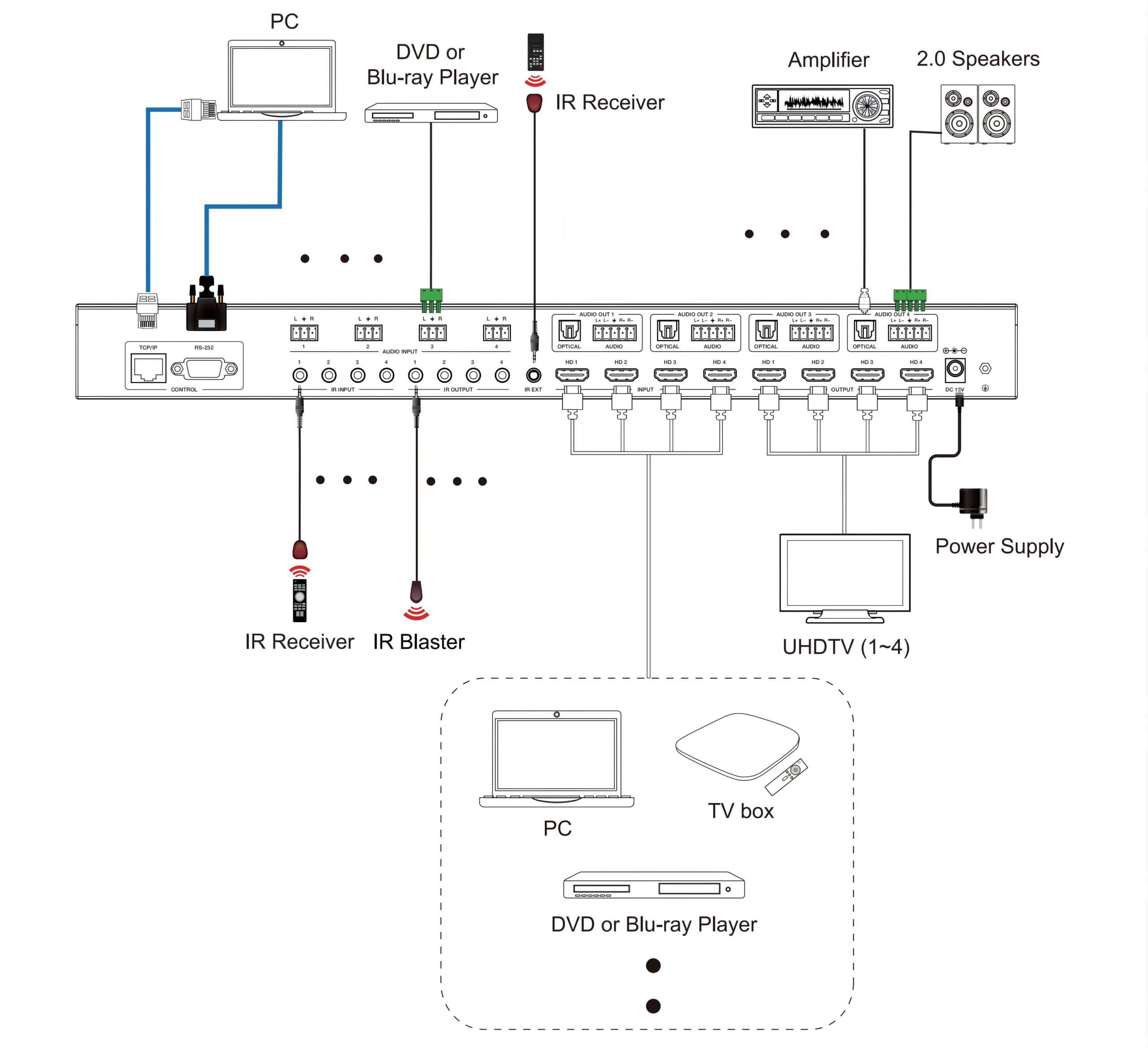

Application Diagram
