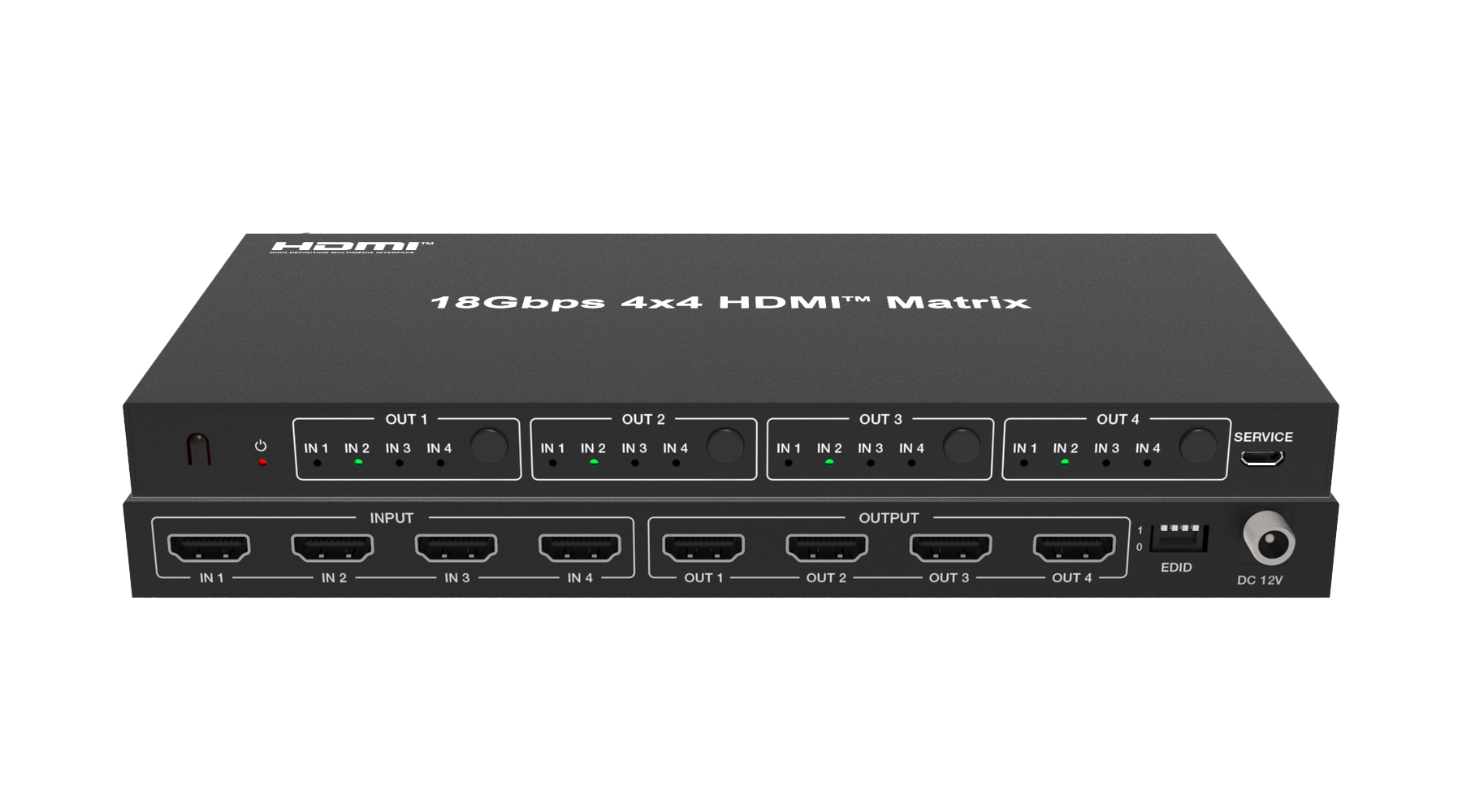

4K60 4×4 HDMI Matrix with Per-Output Downscaling
Route any of four HDMI sources to any of four displays, with each output showing the same or a different source. Per-output 4K-to-1080p downscaling makes it suitable for AV systems using a mix of 4K and 1080p displays.
MV-MX444K
Request a Quote
Key Features
- Routes any of four HDMI sources to any of four HDMI displays.
- Supports video resolutions up to 4K60 4:4:4 with 18Gbps bandwidth and is compatible with HDMI 2.0b, HDCP 2.2/1.x and DVI 1.0.
- Provides independent 4K-to-1080p downscaling on each HDMI output.
- Supports HDR, HDR10, HDR10+ and Dolby Vision passthrough.
- Supports LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio.
- Provides 16 EDID settings, including preset formats and EDID copying from any output.
- Supports source selection and downscaler control from the front panel or included IR remote.
- Powered by a DC 12V/2.5A adapter.

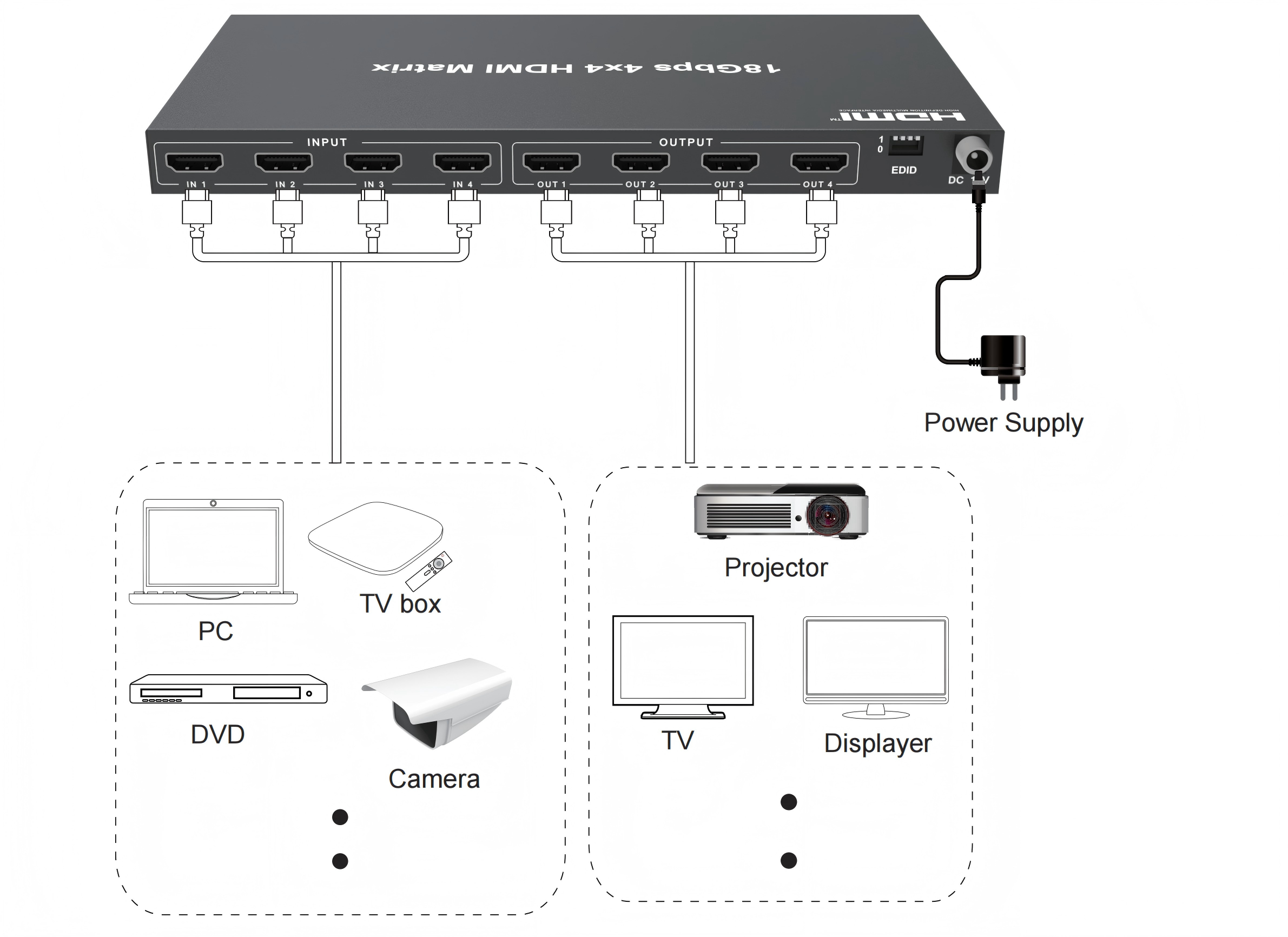

Application Diagram
