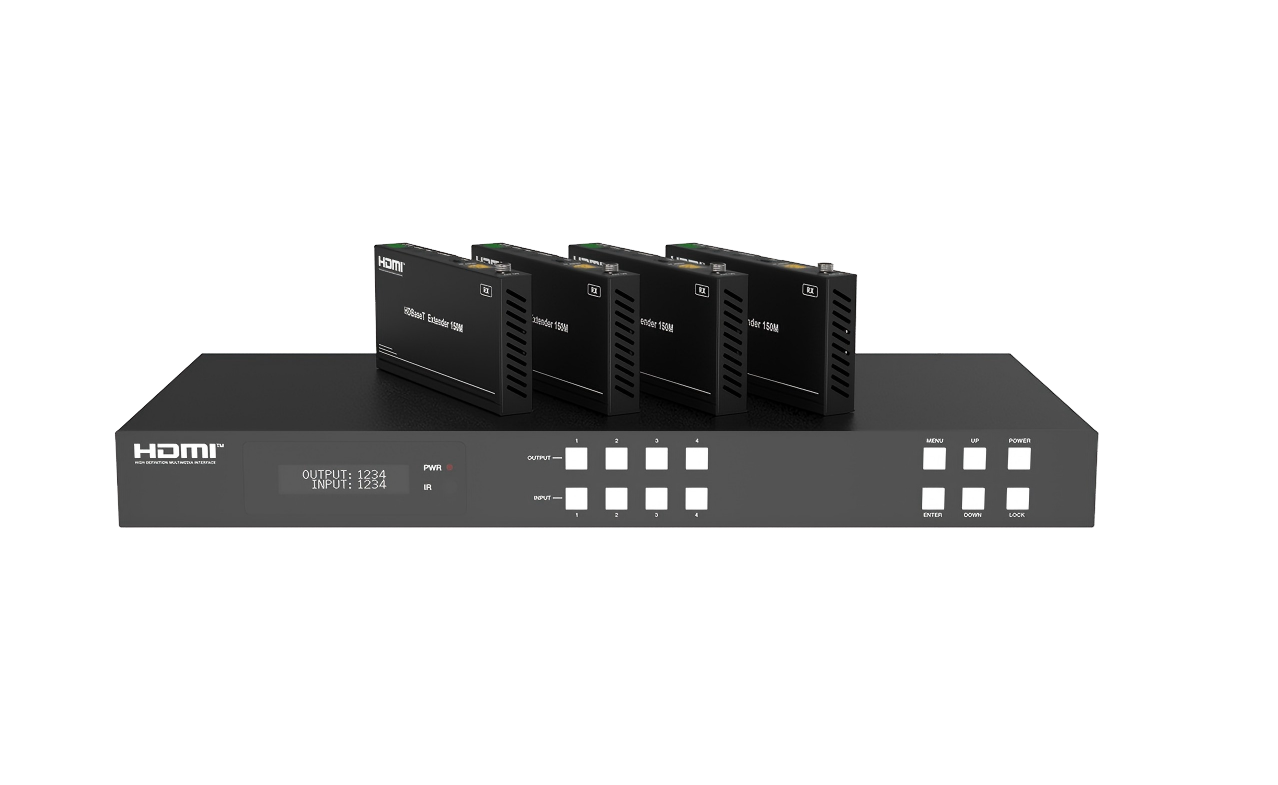

4K60 4×4 HDBaseT Matrix – 120m
The 18Gbps 4x4 HDBaseT(150M) Matrix can connect four HDMI sources to eight displays. It features four HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously.
MV-MXH44120
Request a Quote
Key Features
- Supports video resolutions up to 4K@60Hz (YUV 4:4:4) on all HDMI & HDBaseT ports.
- 4× HDMI inputs, 4× HDMI & HDBaseT mirrored outputs.
- HDMI ports support 18Gbps video bandwidth.
- Supports 4K-to-1080p Down Scaler for each output port.
- Supports HDR, HDR10, HDR10+, Dolby Vision, HLG.
- Passes through HDMI audio up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio).
- De-embeds audio through analog and coax ports.
- Advanced EDID management and CEC control are supported.
- Supports control via front panel buttons, IR remote, RS-232, LAN and Web GUI - -.
- Powered directly from AC 100–240V, 50/60Hz; 24V PoC powers the HDBaseT receivers.

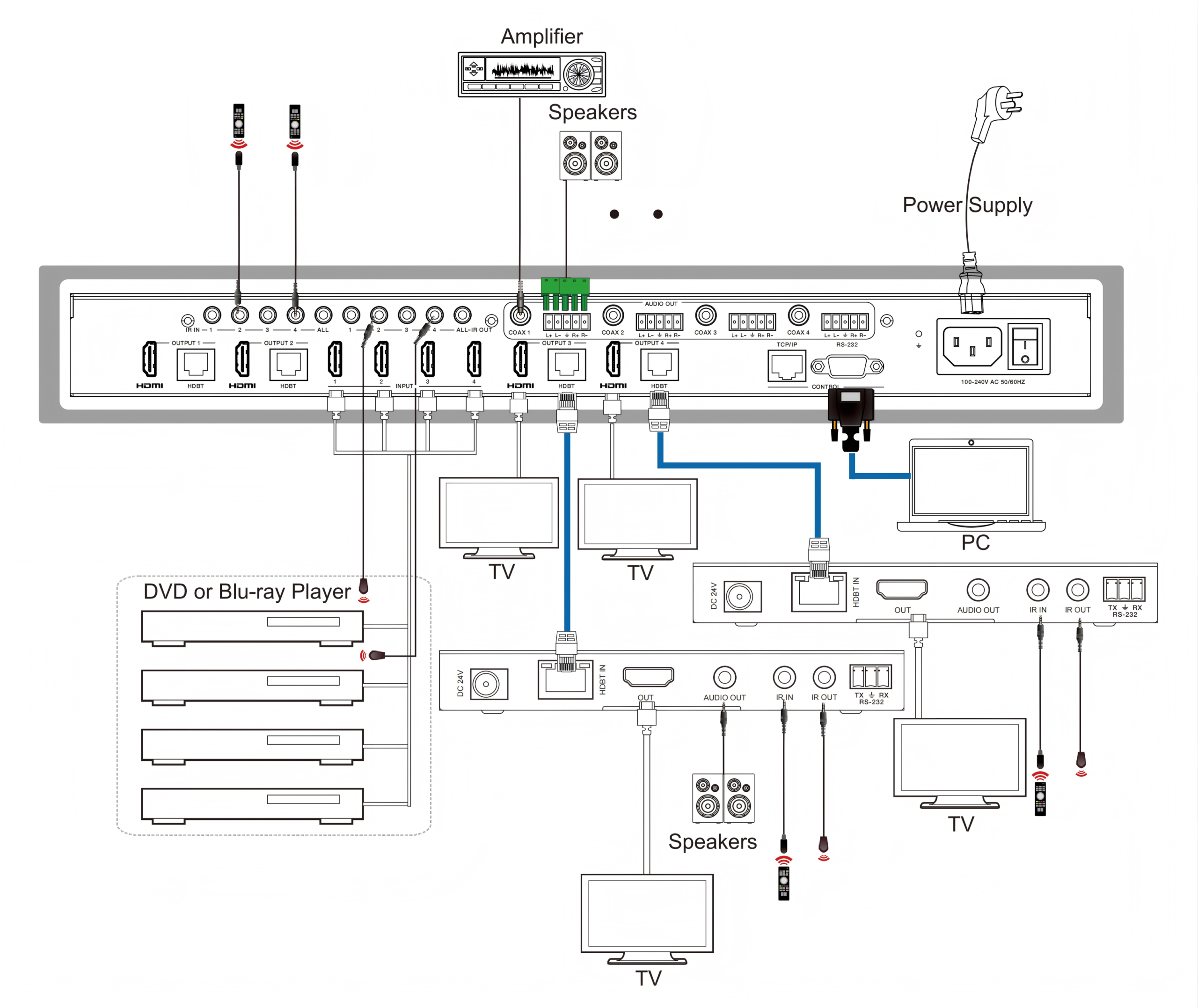

Application Diagram
