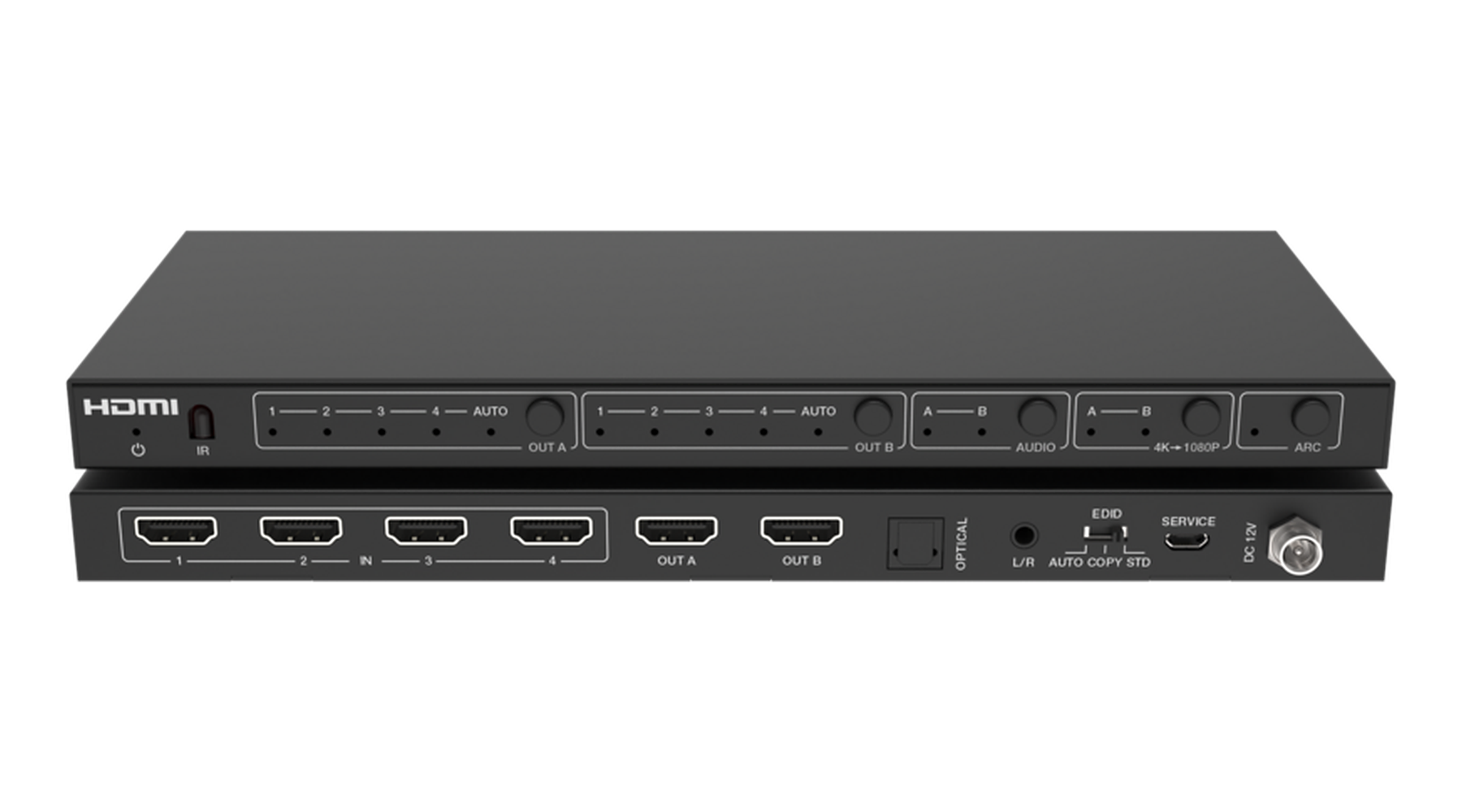

4K60 4×2 HDMI Matrix with Audio Extraction
Route any of four 4K60 HDMI sources independently to two displays, with dual-output downscaling, ARC, EDID management, and optical or analog audio extraction.
MV-MX424KA
Request a Quote
Key Features
- Routes any of four HDMI inputs independently to two HDMI outputs
- HDMI 2.0, HDCP 2.2/1.4 and DVI 1.0 compliant
- Supports up to 4K60 YCbCr 4:4:4 with 18Gbps bandwidth
- Supports Dolby Vision, HDR10+ and HLG pass-through
- Supports 4K-to-1080p downscaling on both HDMI outputs
- Extracts audio from OUT A or OUT B through optical S/PDIF and analog L/R
- Supports ARC audio return from either display through the optical output
- Advanced EDID management with AUTO, COPY and STD modes
- Control through front-panel buttons and IR remote
- DC 12V/1A power supply; maximum power consumption 3.8W

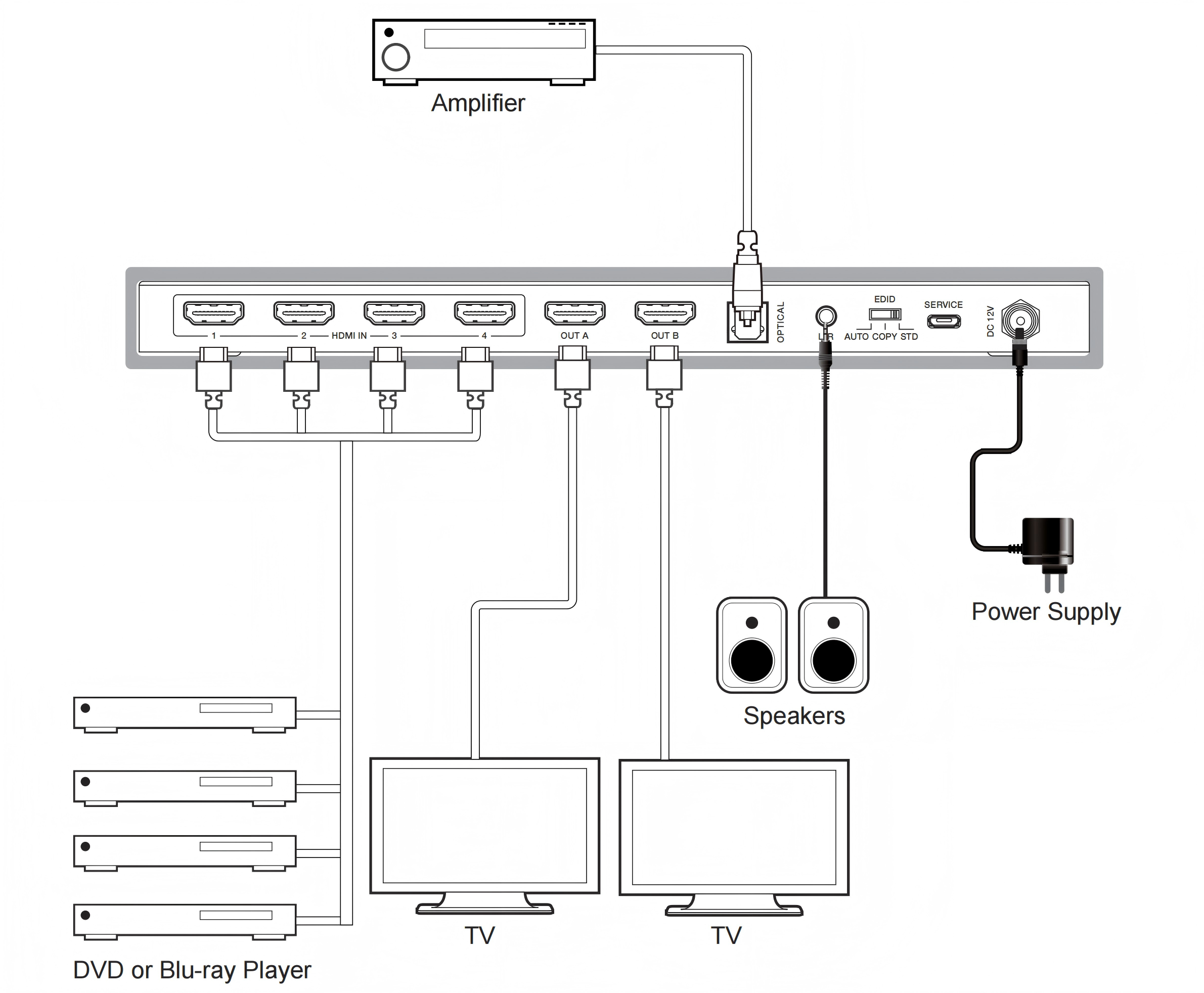

Application Diagram
