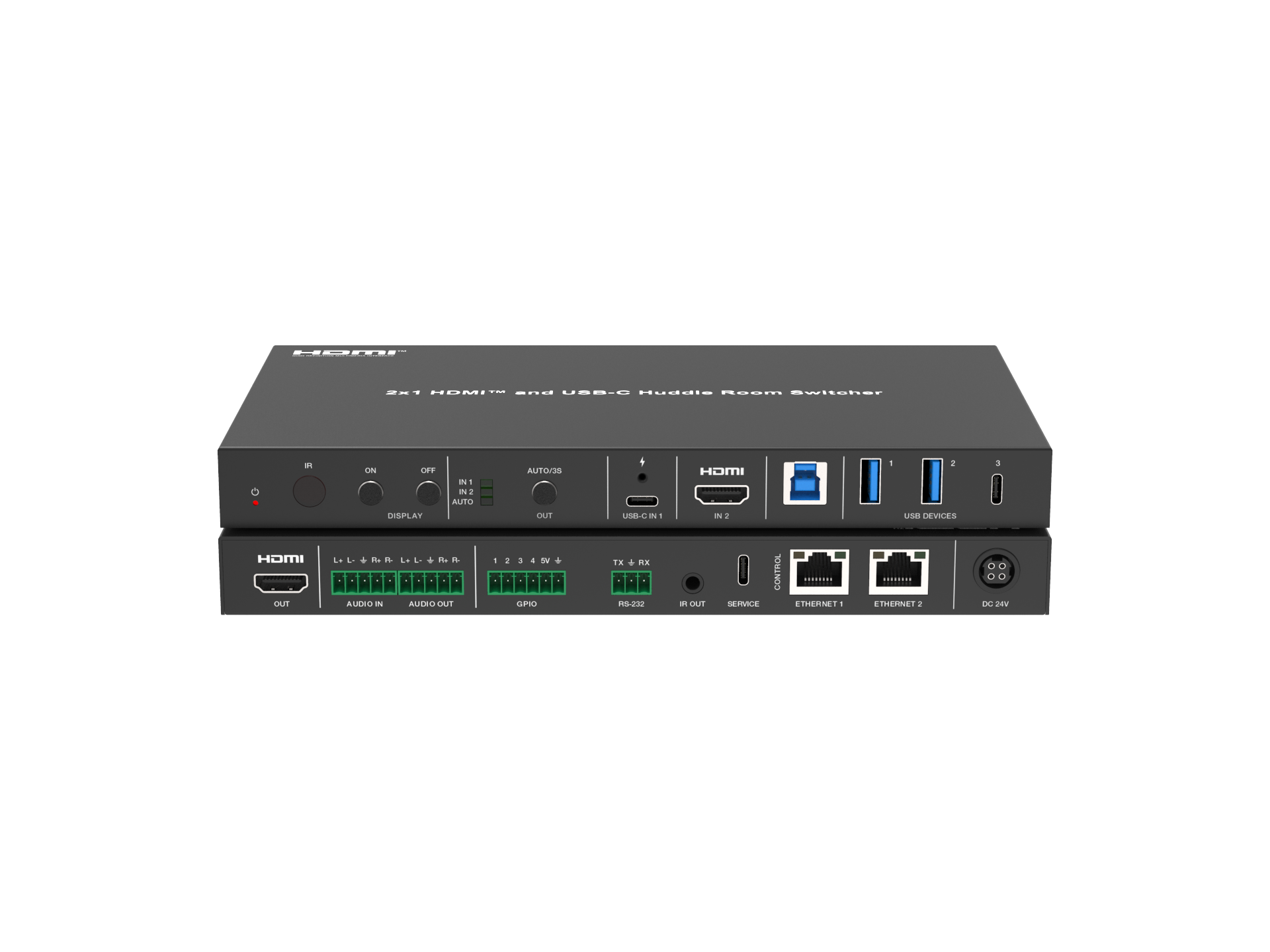

4K60 2×1 HDMI & USB-C Huddle Room Switcher
Connect HDMI and USB-C presenters to one 4K60 room display while sharing USB peripherals, 1Gb Ethernet and balanced audio; USB-C provides video, 5Gbps data and up to 100W laptop charging.
MV-HS21HC
Request a Quote
Key Features
- 2×1 huddle room switcher with USB-C/HDMI input and HDMI output.
- USB-C input with DP Alt mode up to 4K60Hz 4:4:4, USB 3.2 Gen 1 (5Gbps), 1G Ethernet and 100W charging.
- Provides a USB 3.2 Gen 1 5Gbps host connection and local hub.
- Provides a USB 3.2 Gen 1 5Gbps device port with 5V/1.5A power output.
- Supports balanced/unbalanced analog audio embedding to USB or HDMI audio.
- Supports balanced/unbalanced analog audio de-embedding from USB or HDMI audio.
- Provides advanced EDID management.
- Provides dual 1Gb Ethernet ports with 802.1× and VLAN.
- Controls external devices via CEC/IR/RS-232/LAN/GPIO.
- Supports control via front panel buttons, RS-232, TCP/IP and Web GUI.
- Powered by a DC 24V/7.5A adapter.

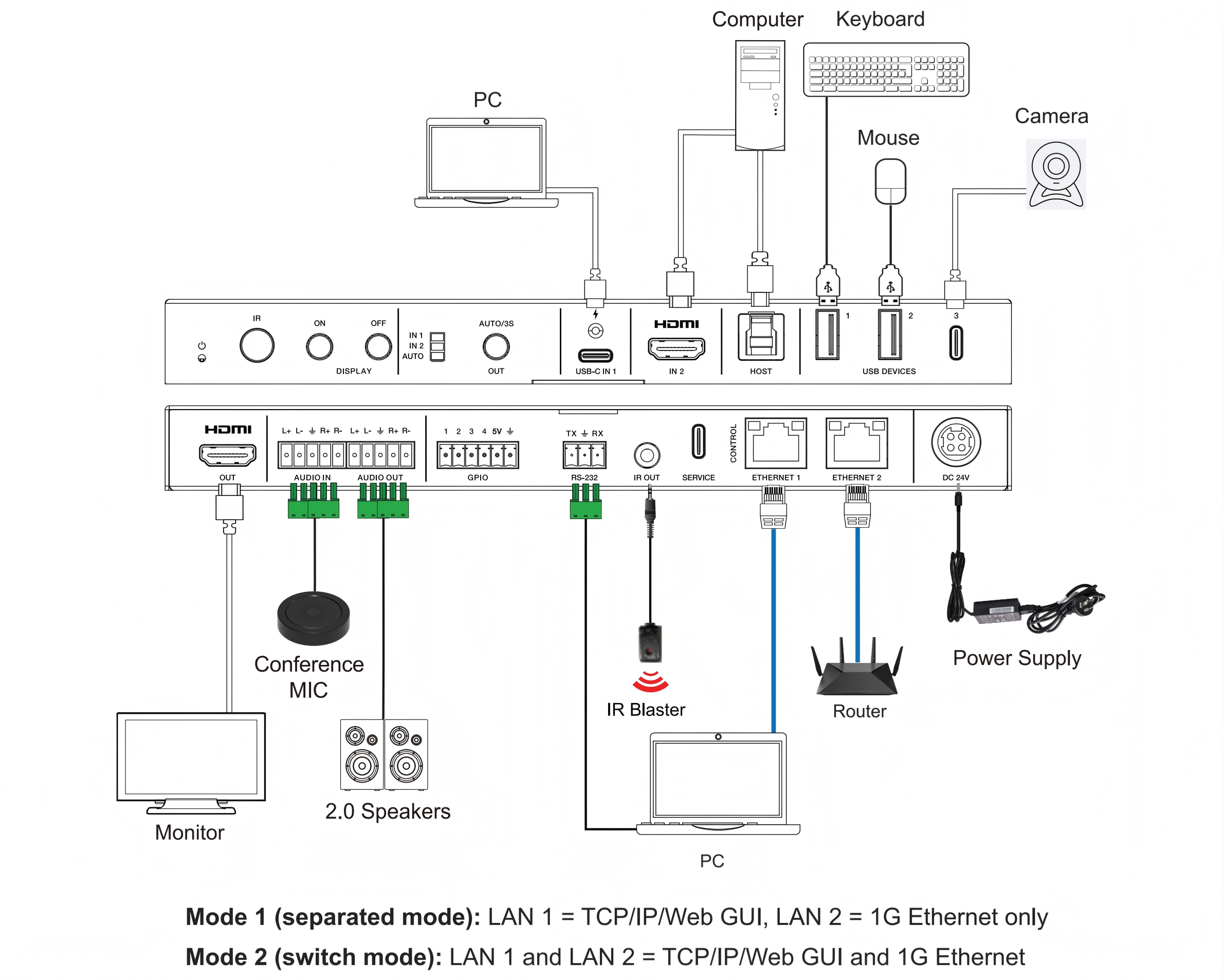

Application Diagram
