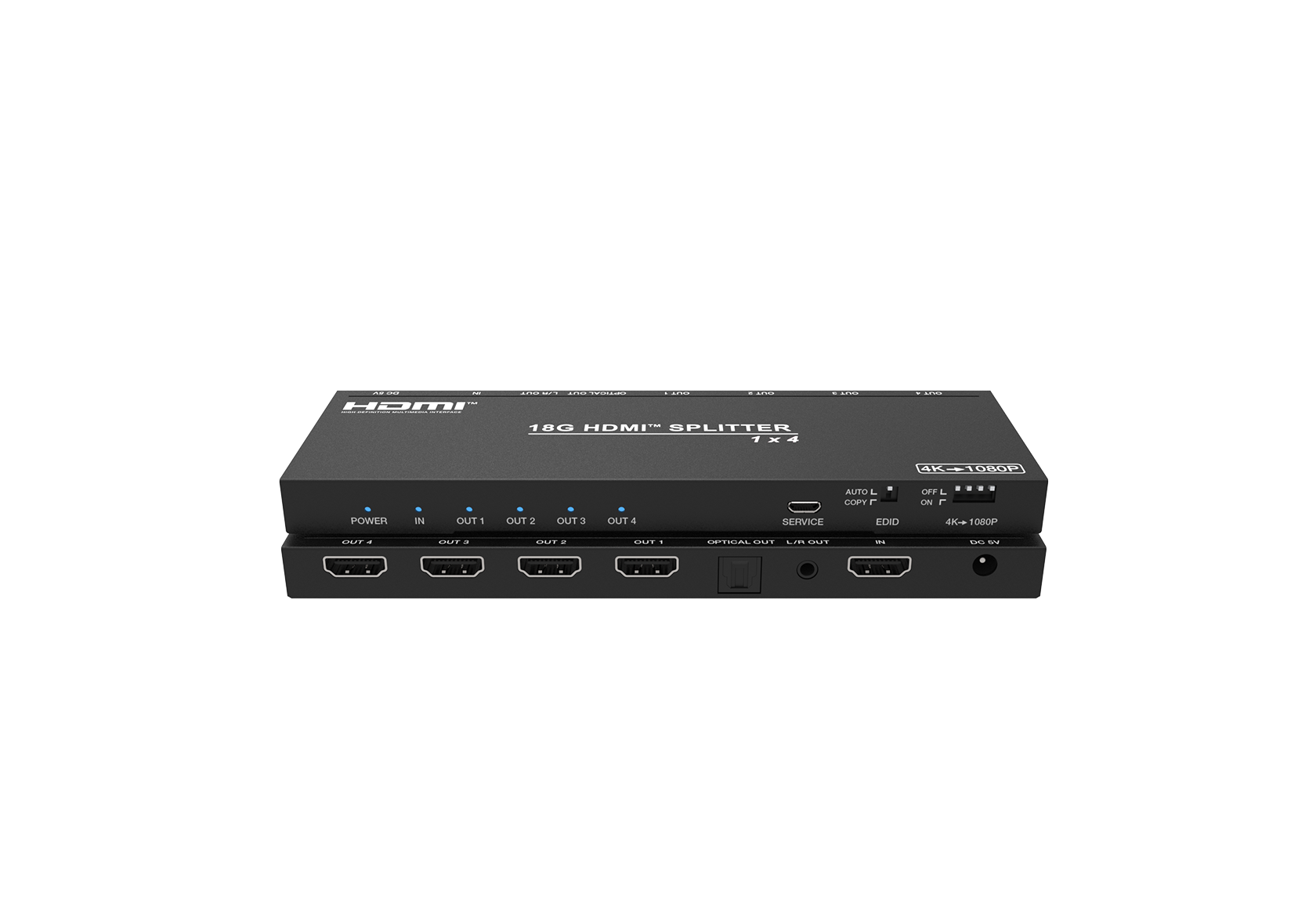

4K60 1×4 HDMI Splitter with Downscaling & Audio Extraction
Distribute one 4K60 HDMI source to four displays, select bypass or 4K-to-1080p downscaling, and extract digital optical or analog stereo audio for an amplifier, DSP or powered speakers.
MV-SP144KAD
Request a Quote
Key Features
- Complies with HDCP 2.2/HDCP1.4.
- Supports HDMI resolution up to 4K@50/60Hz (4:4:4), as specified in HDMI 2.0b.
- Supports digital and analog audio extract output from HDMI source.
- Supports output bypass and 4K-to-1080p downscaler function via dial switch on panel.
- EDID can be selected COPY and AUTO modes via dial switch on panel.
- Supports analog audio PCM 2.0.
- Supports optical audio pass-through format about LPCM 2.0/2.1/CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1.
- Powered by a DC 5V/1A adapter.

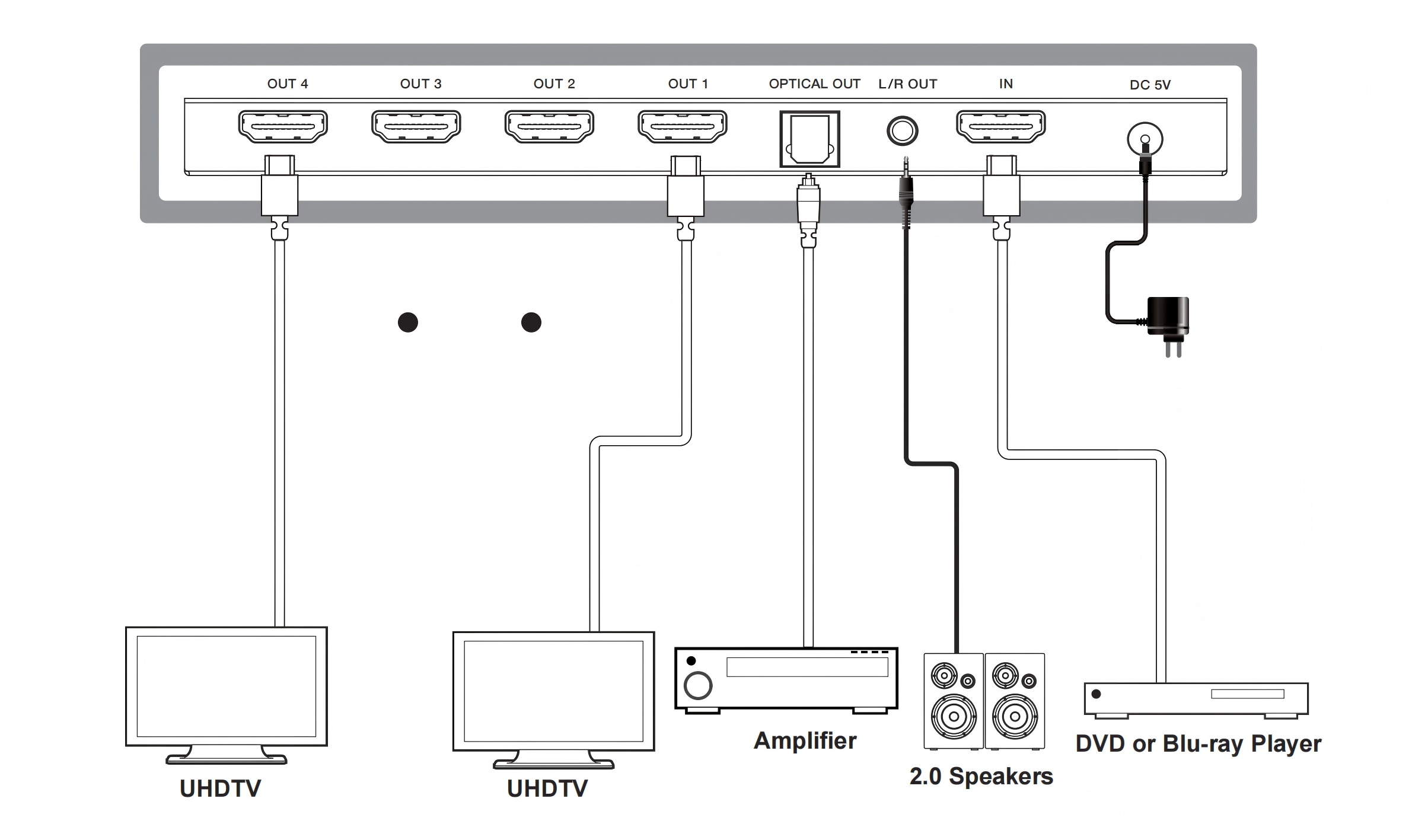

Application Diagram
