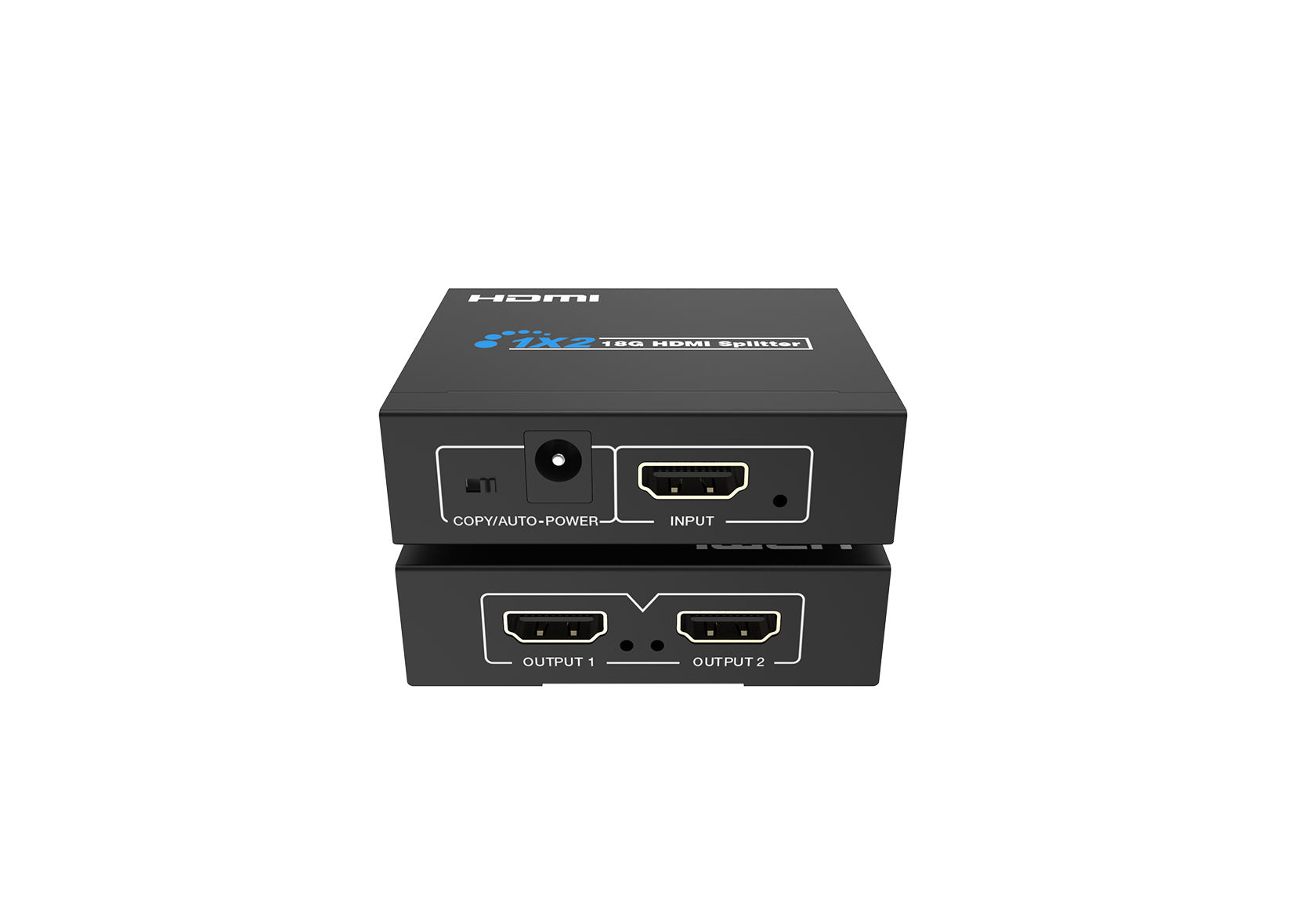

4K60 1×2 HDMI Splitter
Distribute one 4K60 HDMI source to two displays, with automatic downscaling and selectable EDID modes to support systems using different display capabilities.
MV-SP124K
Request a Quote
Key Features
- Complies with HDCP 2.3/1.4 and DVI 1.0.
- Supports 18Gbps video bandwidth, as specified in HDMI 2.0b.
- Supports video resolution up to 4K@60Hz 4:4:4, and HDMI 3D audio format.
- Supports PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH.
- Supports auto downscaling.
- Supports CEC by-pass from IN to OUT1.
- Supports HDR, HDR10, HDR10+, Dolby Vision, HLG.
- Supports EDID control, including STD (1080p) mode and TV (copy OUT1) mode.
- Powered by a DC 5V/1A adapter.

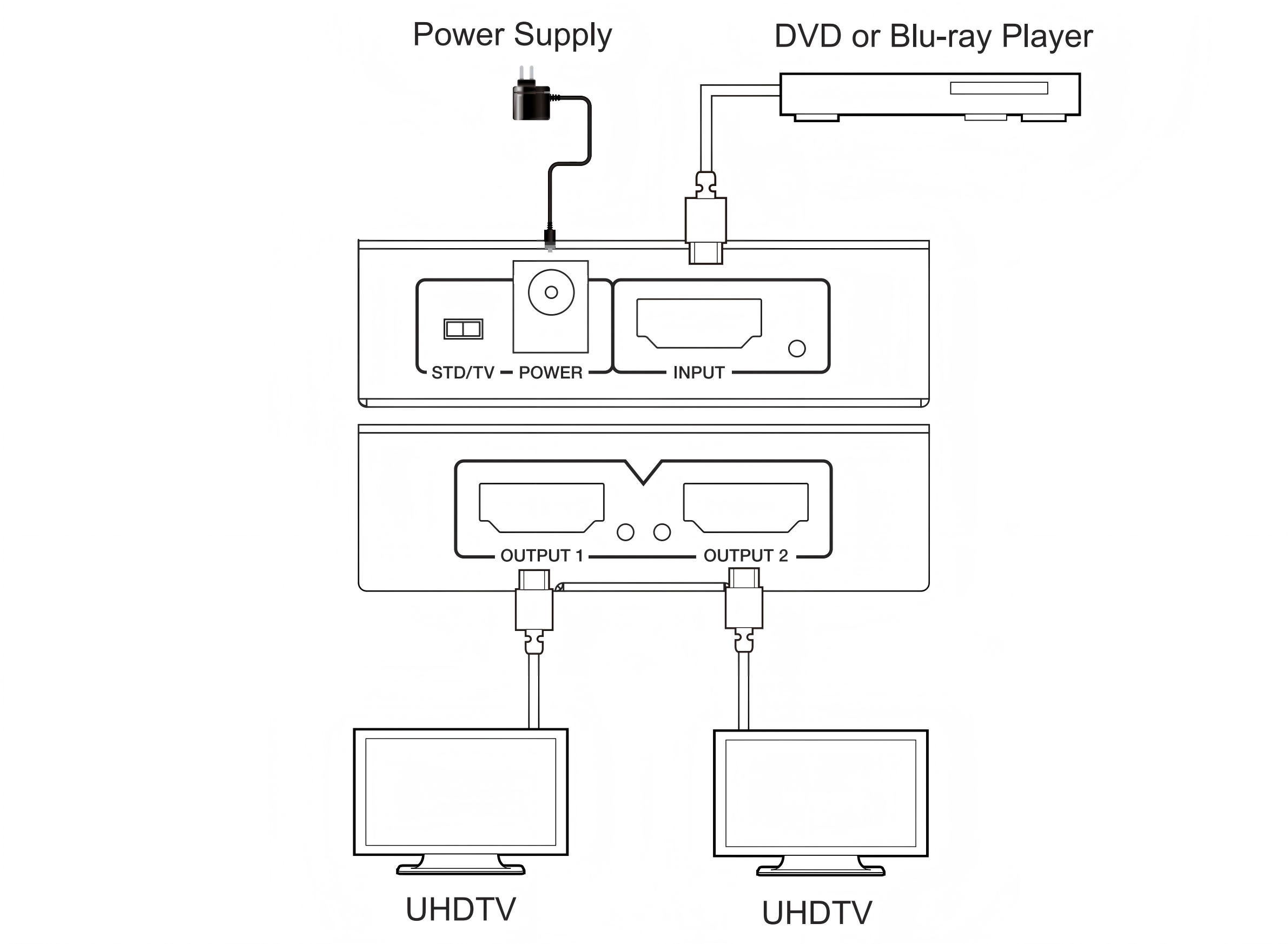

Application Diagram
