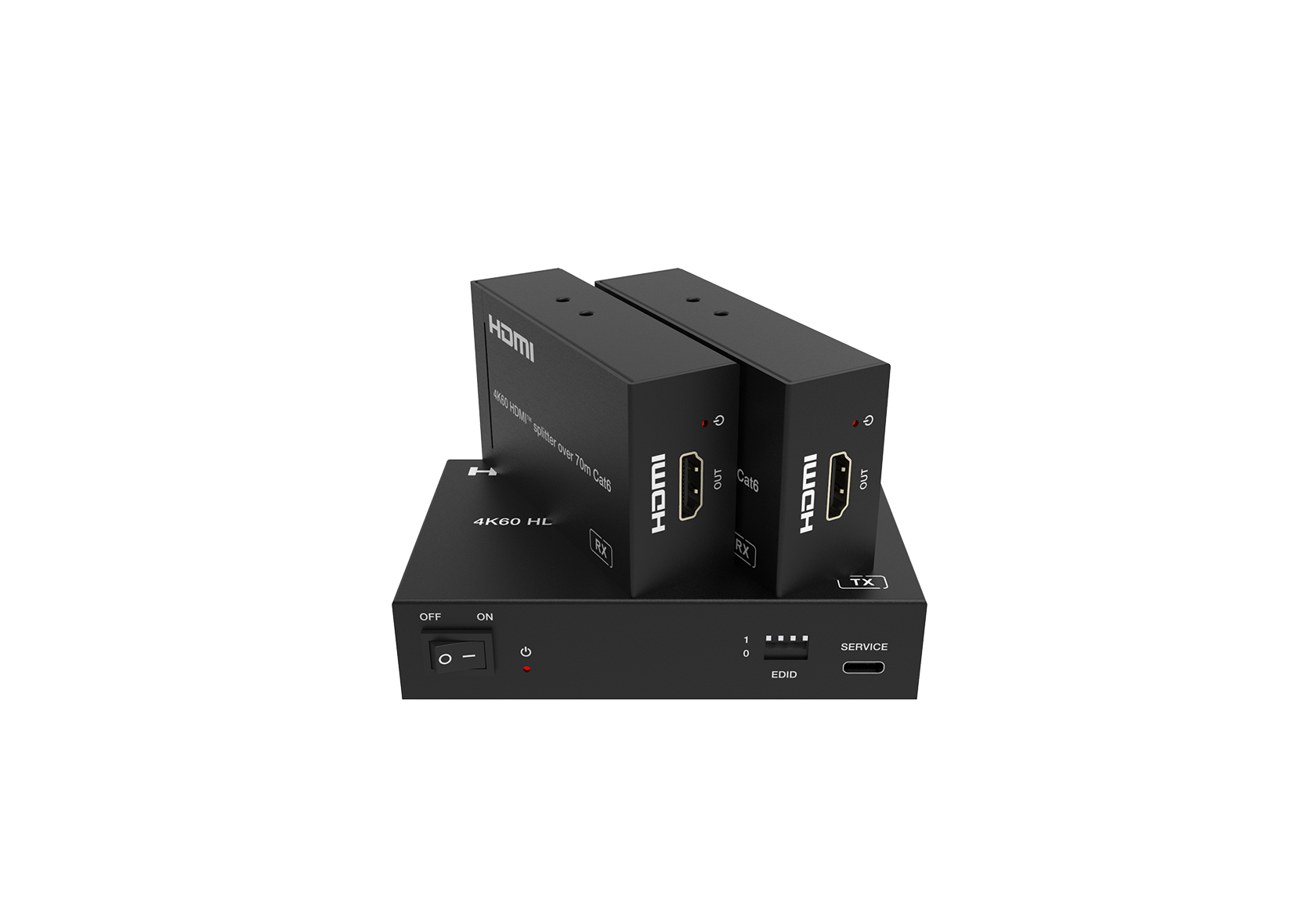

4K60 1×2 HDMI over CAT Extender Splitter – 70m
This HDMI 1x2 Splitter can distribute 1 HDMI source signal to any 2 display devices, supporting video resolution up to 4K@60Hz. It is designed with 1 HDMI input, 1 HDMI loop output and 2 CAT outputs.
MV-ES12704K
Request a Quote
Key Features
- Complies with HDCP 2.2.
- Supports video resolutions up to 4K@60Hz.
- Extends signals up to 230ft/70m for 4K@30Hz, 197ft/60m for 4K@60Hz via a single CAT6 cable.
- Supports 1 HDMI input, 1 HDMI loop output and 2 CAT outputs.
- Supports HDMI audio formats including LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.
- Supports PoC function.
- Provides advanced EDID management.
- Uses a compact enclosure for flexible installation.
- The transmitter is powered by a DC 12V/1A adapter; PoC powers the receivers.

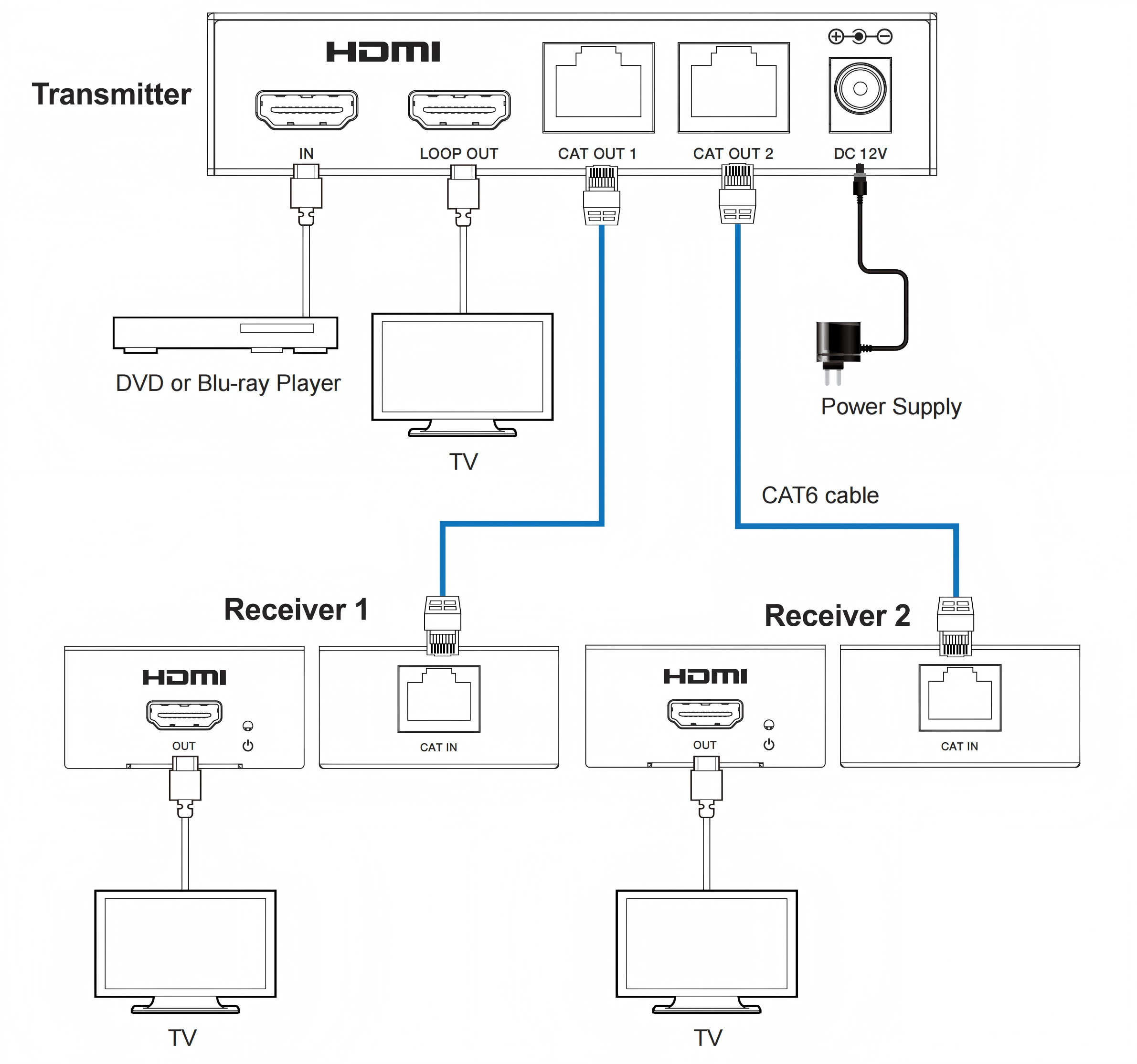

Application Diagram
