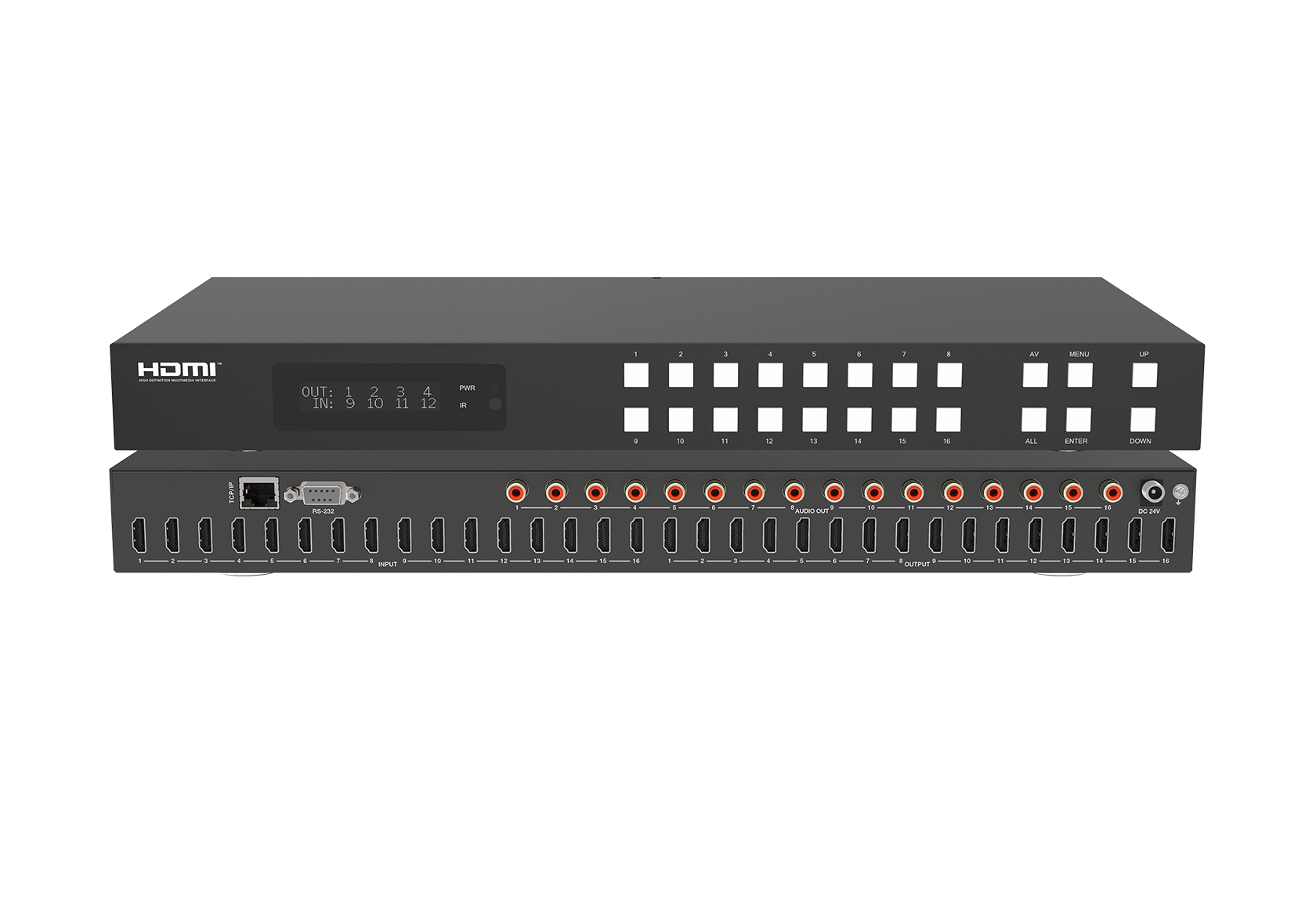

4K60 16×16 HDMI Matrix with Per-Output Downscaling & Web GUI
The 18Gbps 16x16 HDMI Matrix supports the transmission of video (resolution up to 4K2K@ 60Hz YUV 4:4:4) and multi-channel high resolution digital audio from 16 HDMI sources to 16 HDMI displays. Audio de-embedded to coaxial audio is supported from 16 HDMI output ports.
MV-MX16164KP
Request a Quote
Key Features
- HDMI 2.0b, HDCP 2.2/1.x and DVI 1.0 compliant.
- Supports video resolutions up to 4K@60Hz (YUV 4:4:4) on all HDMI ports.
- Supports 18Gbps video bandwidth.
- Supports HDR, HDR10, HDR10+, Dolby Vision and HLG.
- Supports 4K-to-1080p Down Scaler for each output port.
- Passes through HDMI audio up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio).
- De-embeds audio through coax ports.
- ARC, CEC and smart EDID management are supported.
- 1U rack mounted design with front panel OLED display.
- Supports control via front panel buttons, IR remote, RS-232, LAN and Web GUI.
- Powered by a DC 24V/3.75A adapter.

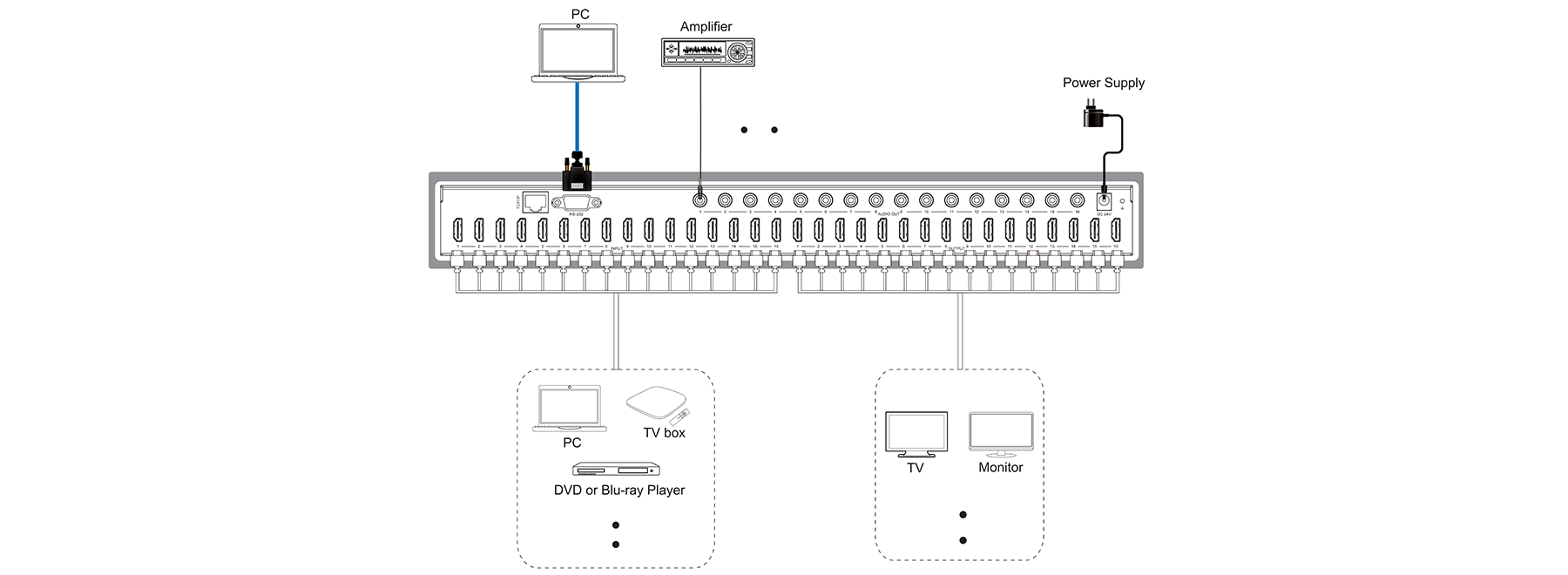

Application Diagram
