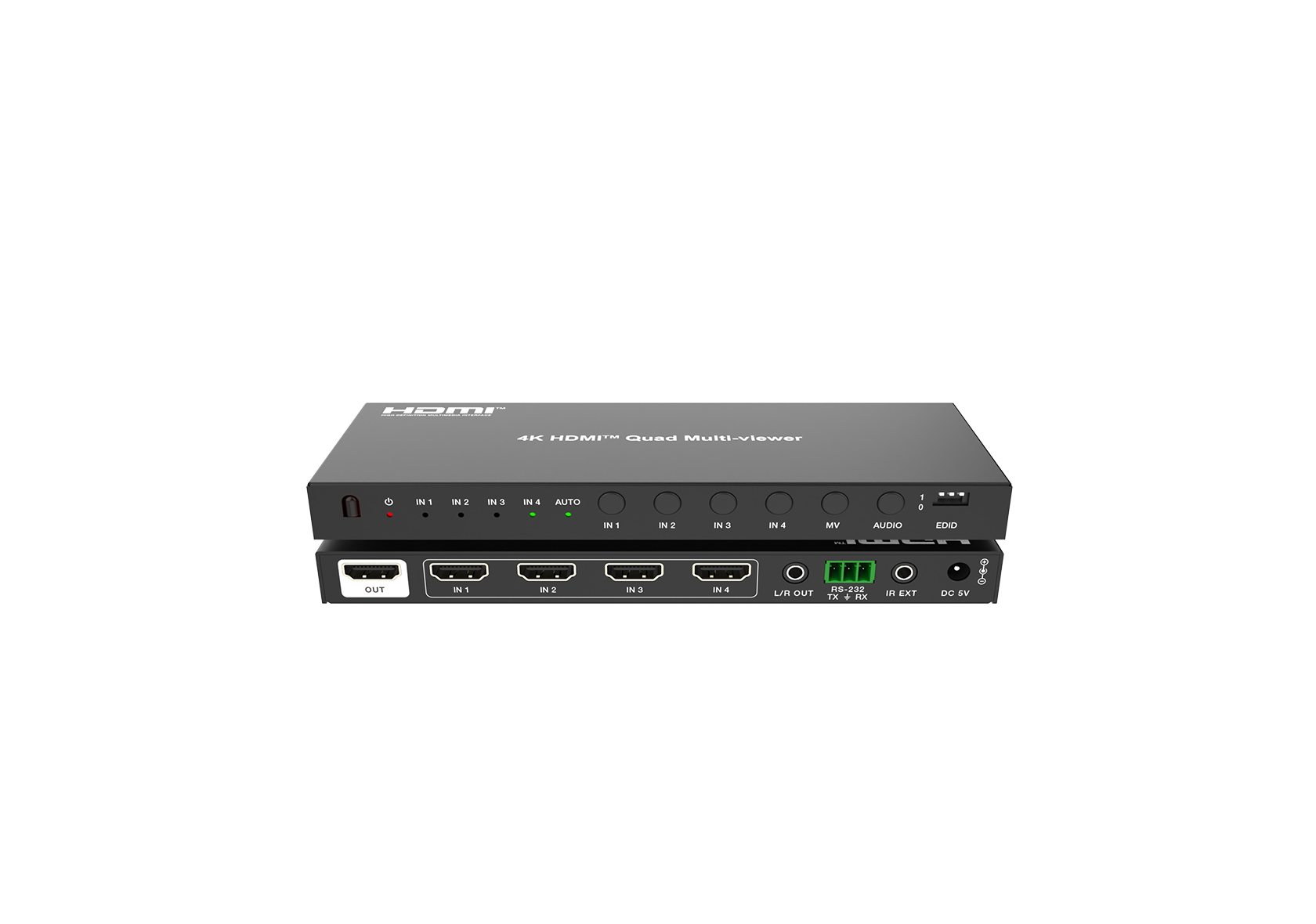

4K30 4×1 HDMI Multiviewer with Seamless Switching
Combine up to four HDMI sources on one 4K30 display using eight multiview layouts, with seamless source switching, independent audio selection, analog audio output and RS-232 control.
MV-SW41MV
Request a Quote
Key Features
- Supports 10.2Gbps video bandwidth.
- Input and output resolution is up to 4K@30Hz, as specified in HDMI 1.4b.
- Seamless switching between inputs and combined multiple images on single UHD monitor in multi-view display mode.
- Seamless switching in single-view display mode.
- Supports 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2).
- Supports LPCM, DD, DD+, DTS audio channel.
- Supports audio de-embedding via the analog audio port.
- Supports independent audio selection.
- Supports control via front panel button, IR remote and RS-232 commands.
- Provides advanced EDID management.
- Powered by a DC 5V/1A adapter.

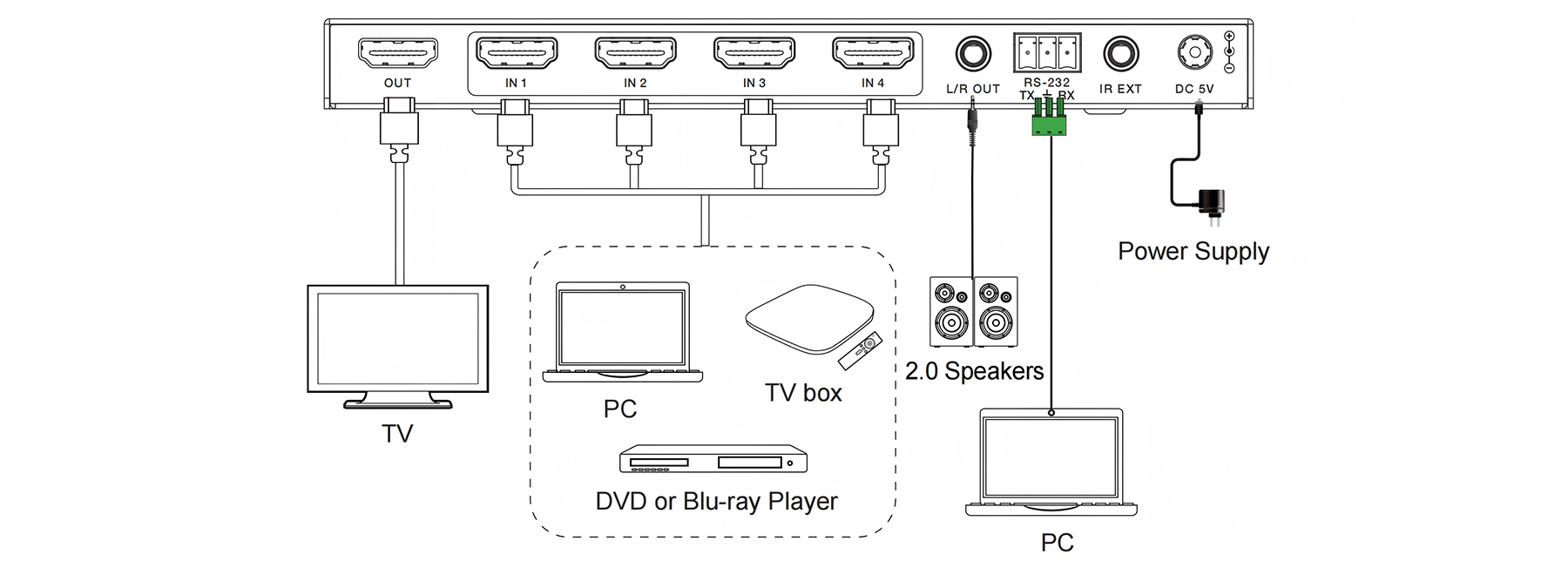

Application Diagram
