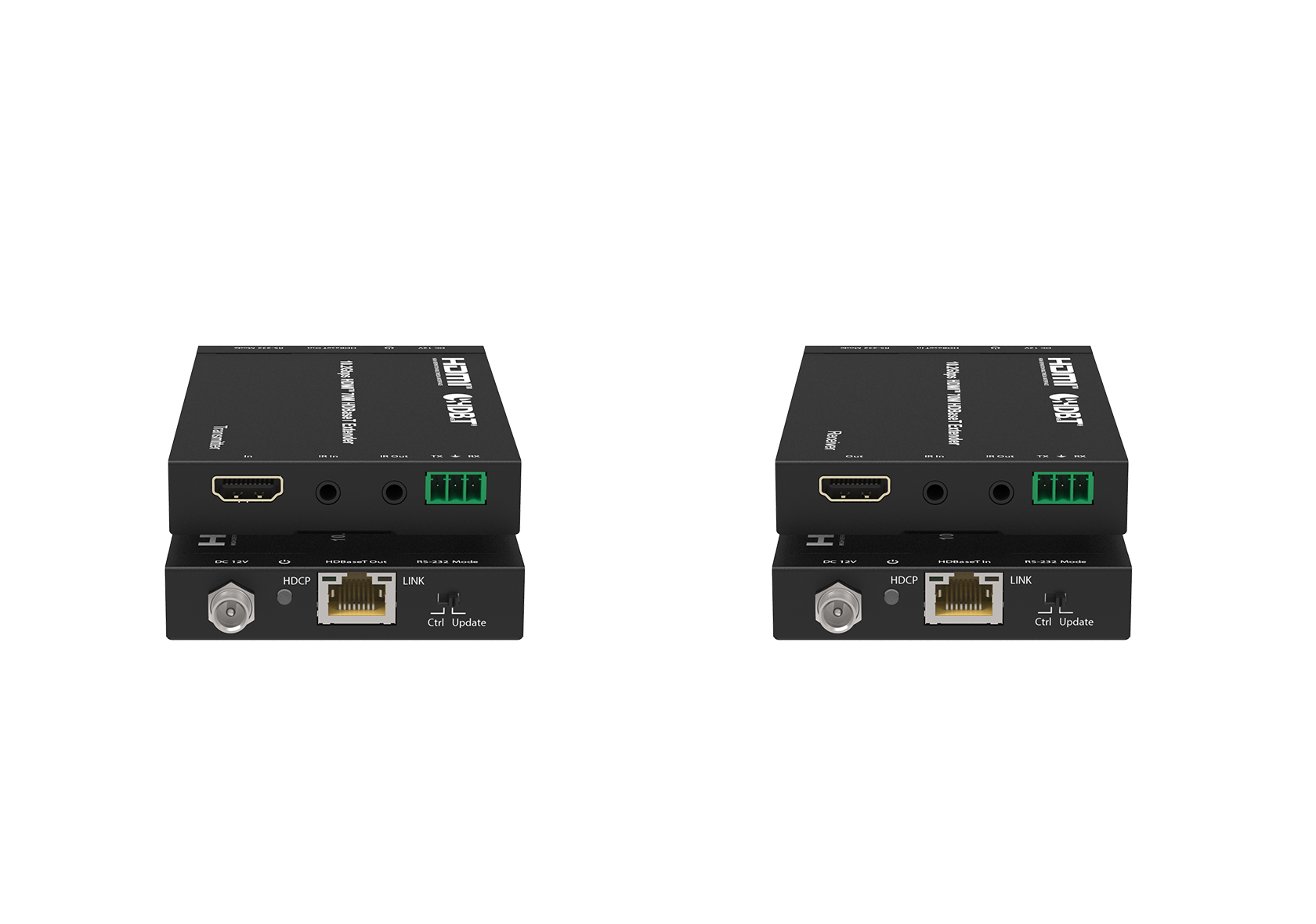

4K HDBaseT Extender – 70m with PoC
This HDMI 70M HDBaseT Extender uses HDBaseT technology to extend the HDMI signal and bi-directional IR control signal to 70m via a single Cat5e/6 cable. This product converts the HDMI signal into a standard HDBaseT signal and then transmits it through the LAN cable.
MV-HBT704K
Request a Quote
Key Features
- Complies with HDCP 2.2.
- Supports video resolution up to 4K@30Hz, as specified in HDMI 1.4.
- Supports 10.2Gbps video bandwidth.
- Extends signals via a single CAT5e/6 cable is: 70 meters: 1080p@60Hz/36bit; 3D 1080p@30Hz/36bit; 40 meters: 1080p@60Hz/48bit; 1080p@120Hz/24bit; 3D 1080p@60Hz/36bit; 4K@30Hz/24bit.
- Supports PoC (Power Over Cable) function, it means that either the transmitter or receiver is connected to 12V/1A power supply, the other doesn’t need power supply.
- With bidirectional IR and RS-232 control signal pass-through.
- Uses a compact enclosure for flexible installation.

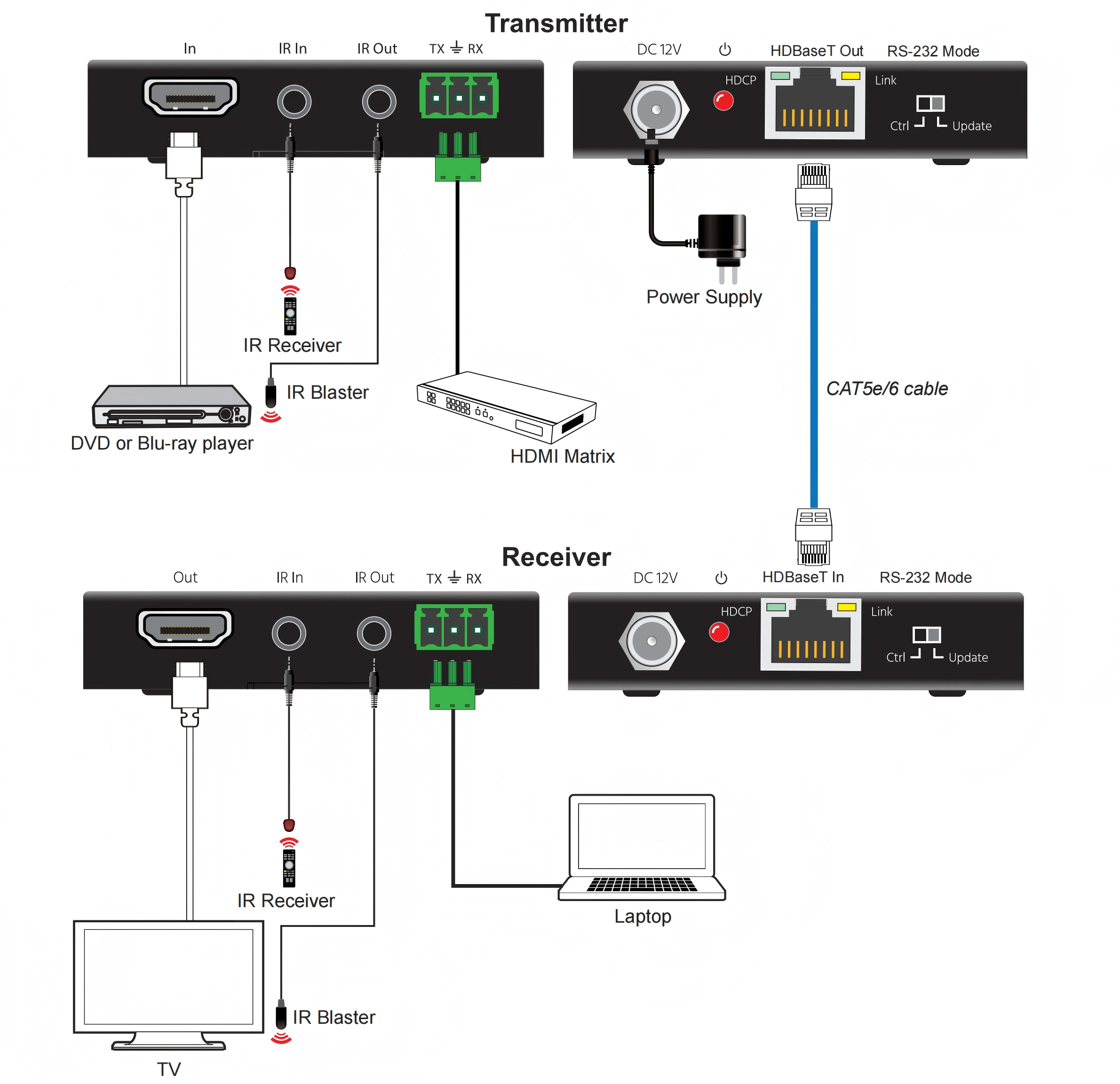

Application Diagram
