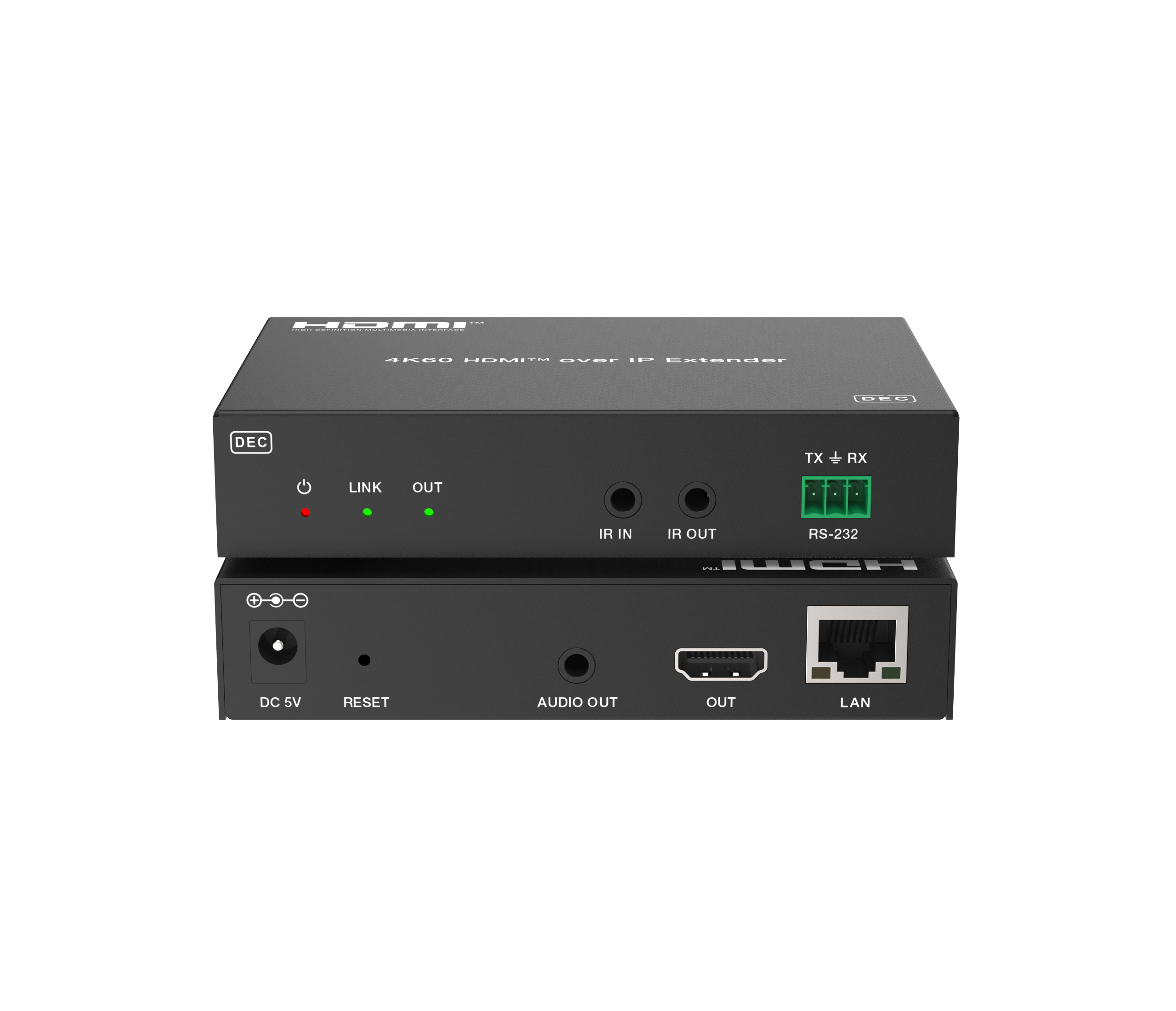

4K H.265 AV over IP Decoder
Decode an H.265/H.264 AV-over-IP stream to a 4K60 HDMI display, with audio de-embedding, three smart output-resolution modes and Web GUI management for scalable one-to-many systems.
MV-IP4KDEC
Request a Quote
Key Features
- Uses H.265/H.264 video encoding and decoding.
- Complies with HDCP 2.2, 18Gbps video bandwidth.
- Supports HDMI input and output resolutions up to HDMI 2.0b 4K@60Hz (4:4:4) with 4K@30Hz IP Stream.
- Extends signals up to 394ft/120m via CAT5e/6/6A cable.
- Audio de-embedding on Decoder.
- Provides a built-in Web GUI for configuration.
- Supports preset and user-defined EDID data.
- Bidirectional IR and RS-232 transmission.
- Decoder HDMI out supports three smart resolution modes.
- Supports LPCM 2.0CH audio.
- Powered by a DC 5V/1A adapter.
Compatible Encoders
This decoder is sold separately and works with the compatible encoder shown below. Multiple decoders can receive the same AV signal from one encoder.

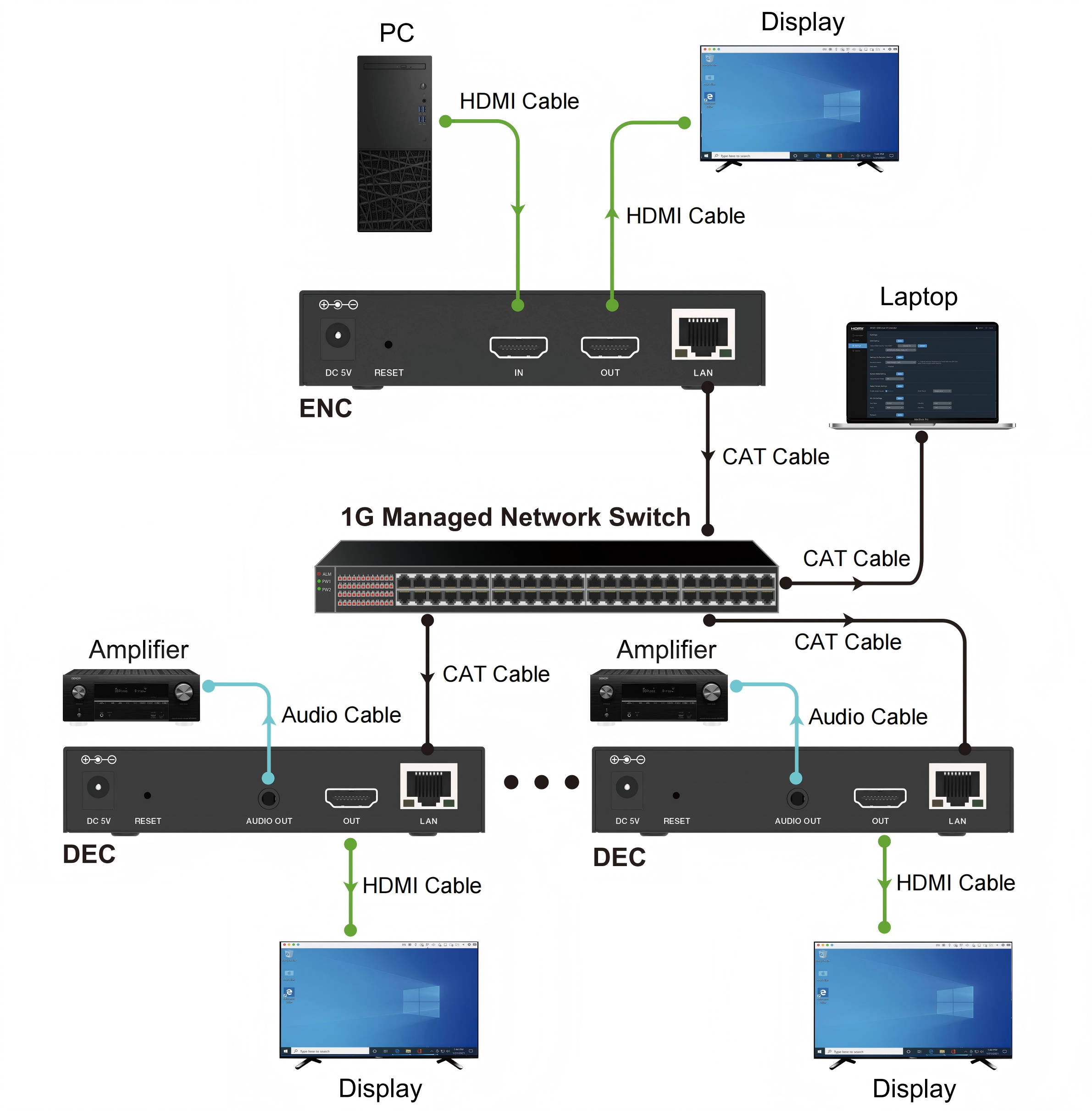

Application Diagram
