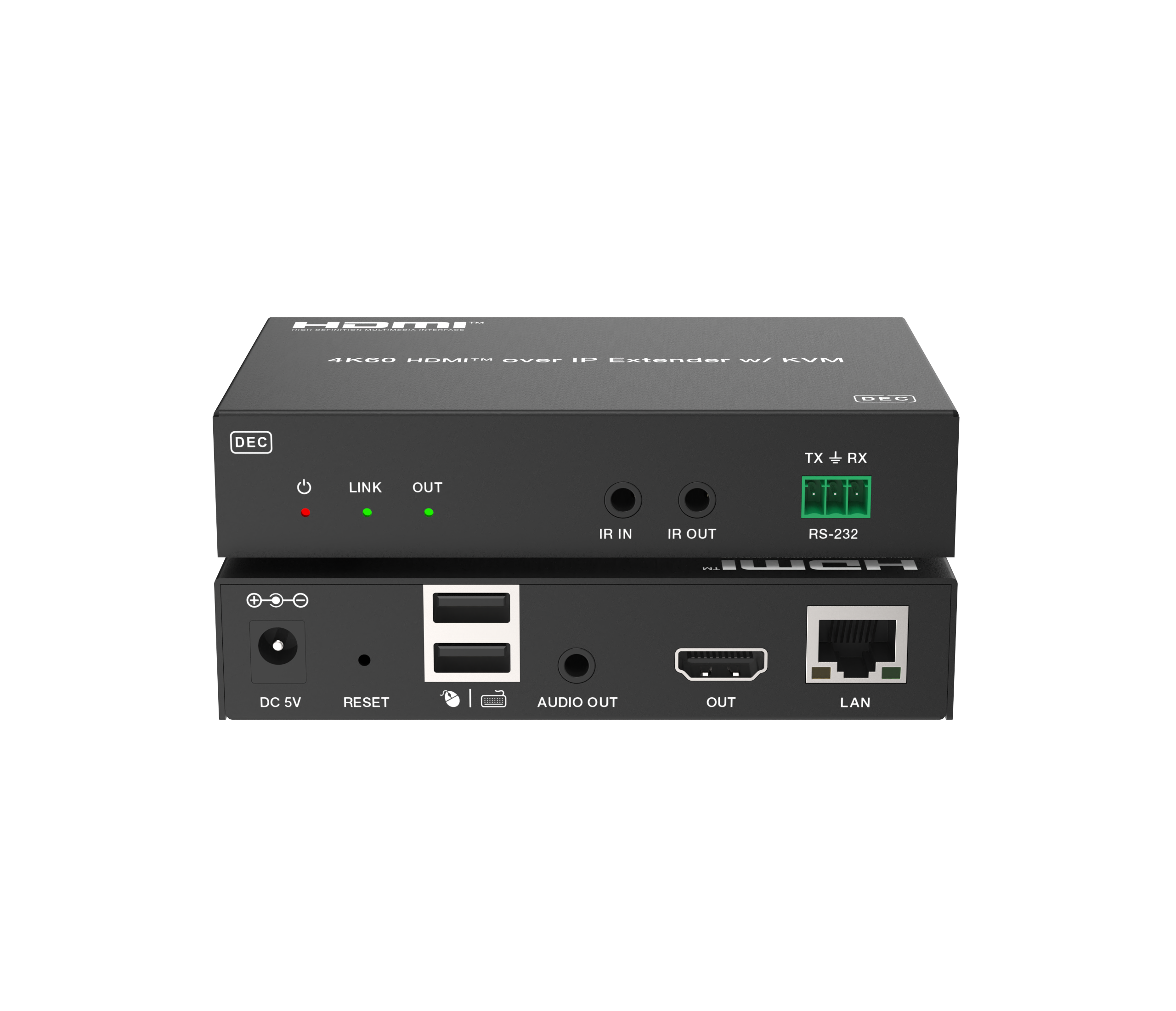

4K H.265 AV over IP Decoder with KVM
Decode H.265/H.264 video and USB KVM control at the display end, with 4K60 HDMI output, audio de-embedding, three smart resolution modes and Web GUI management.
MV-IP4KKDEC
Request a Quote
Key Features
- Uses H.265/H.264 video encoding and decoding.
- Complies with HDCP 2.2, 18Gbps video bandwidth.
- Supports HDMI input and output resolutions up to HDMI 2.0b 4K@60Hz (4:4:4) with 4K@30Hz IP Stream.
- Extends signals up to 394ft/120m via CAT5e/6/6A cable.
- Audio de-embedding on Decoder.
- Provides a built-in Web GUI for configuration.
- Supports preset and user-defined EDID data.
- Bidirectional IR, RS-232, USB KVM transmission.
- Decoder HDMI out supports three smart resolution modes.
- Supports LPCM 2.0CH audio.
- Powered by a DC 5V/1A adapter.
Compatible Encoders
This decoder is sold separately and works with the compatible encoder shown below. Multiple decoders can receive the same AV signal from one encoder.

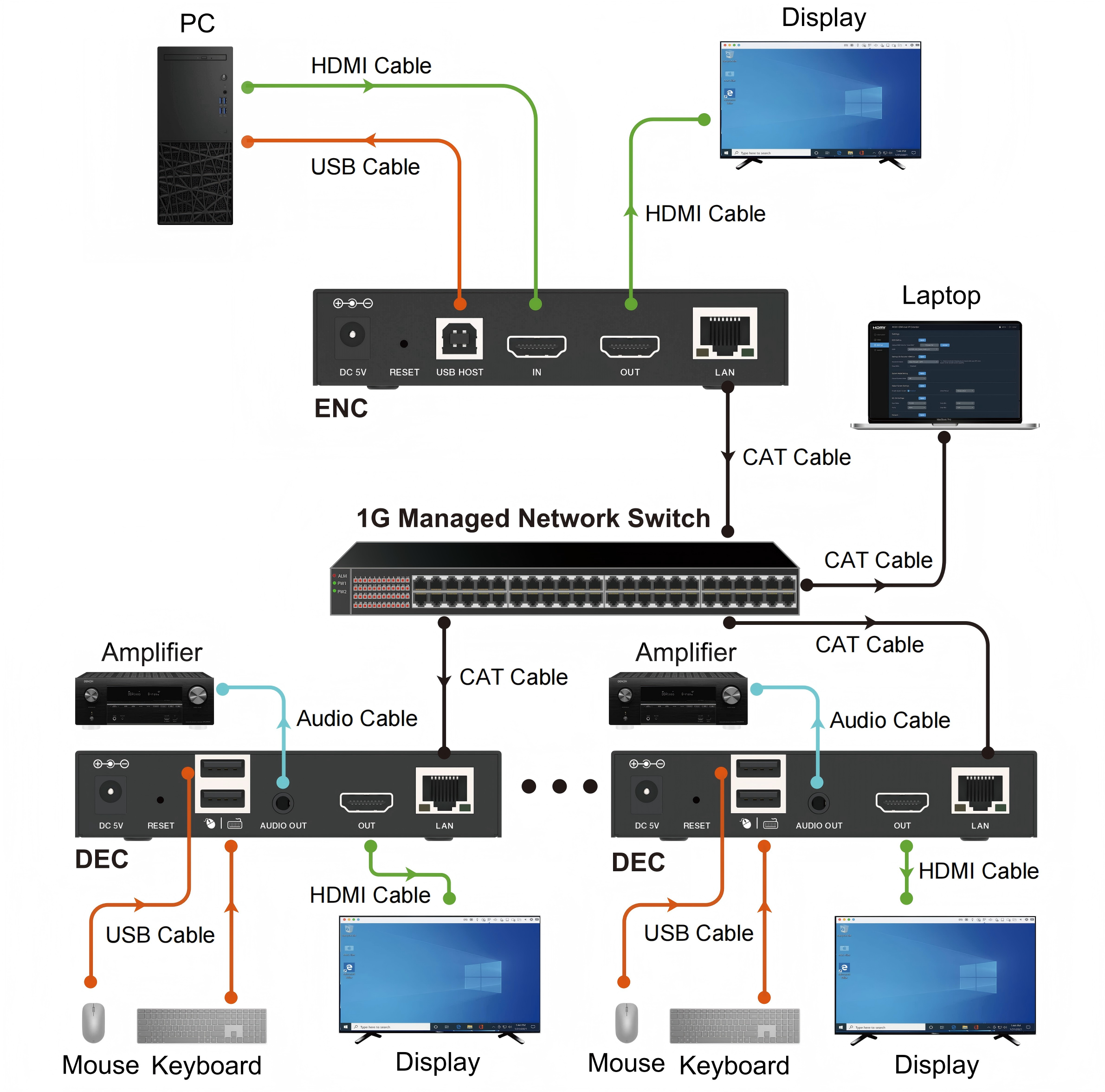

Application Diagram
