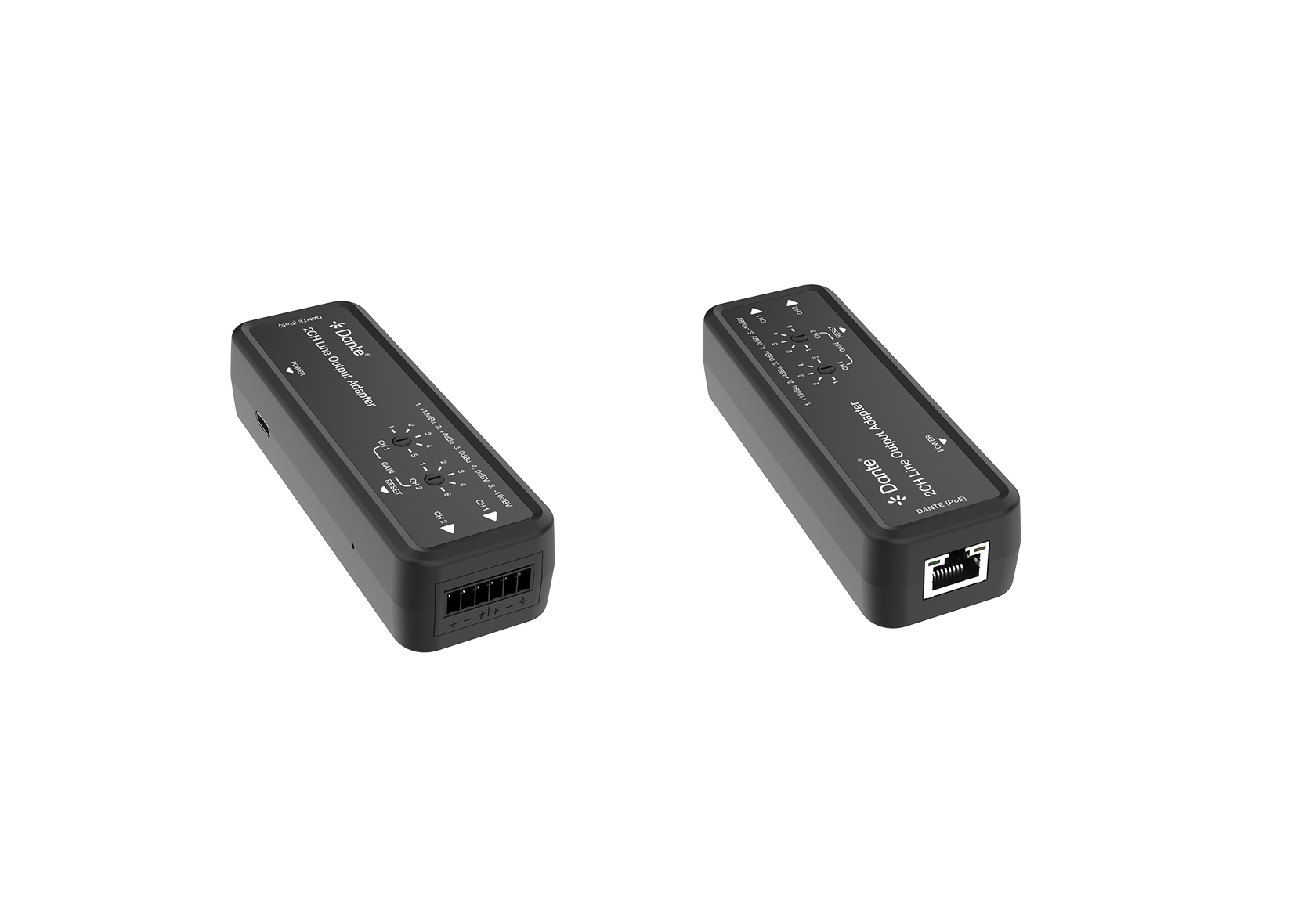

2-Channel Dante to Analog Line Output Adapter
This Dante 2CH Line Output Adapter is an audio converter based on the Dante Ultimo 2x2 solution. It converts Dante 2CH digital audio into two-channel balanced/unbalanced analog audio.
MV-DA2LO
Request a Quote
Key Features
- Dante 2CH digital audio to two-channel analog audio.
- Balanced/unbalanced analog audio output.
- Supports Dante audio sampling rates of 44.1/48/88.2/96KHz@24bit.
- Provides configurable Dante audio latency of /5ms (configurable).
- Analog audio output supports 5-level gain adjustment (+18dBu, +4dBu, 0dBu, 0dBv, -10dBv).
- Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE).
- Uses a compact enclosure for flexible installation.
- Powered via USB-C 5V/500mA or IEEE 802.3af Class 0 PoE.

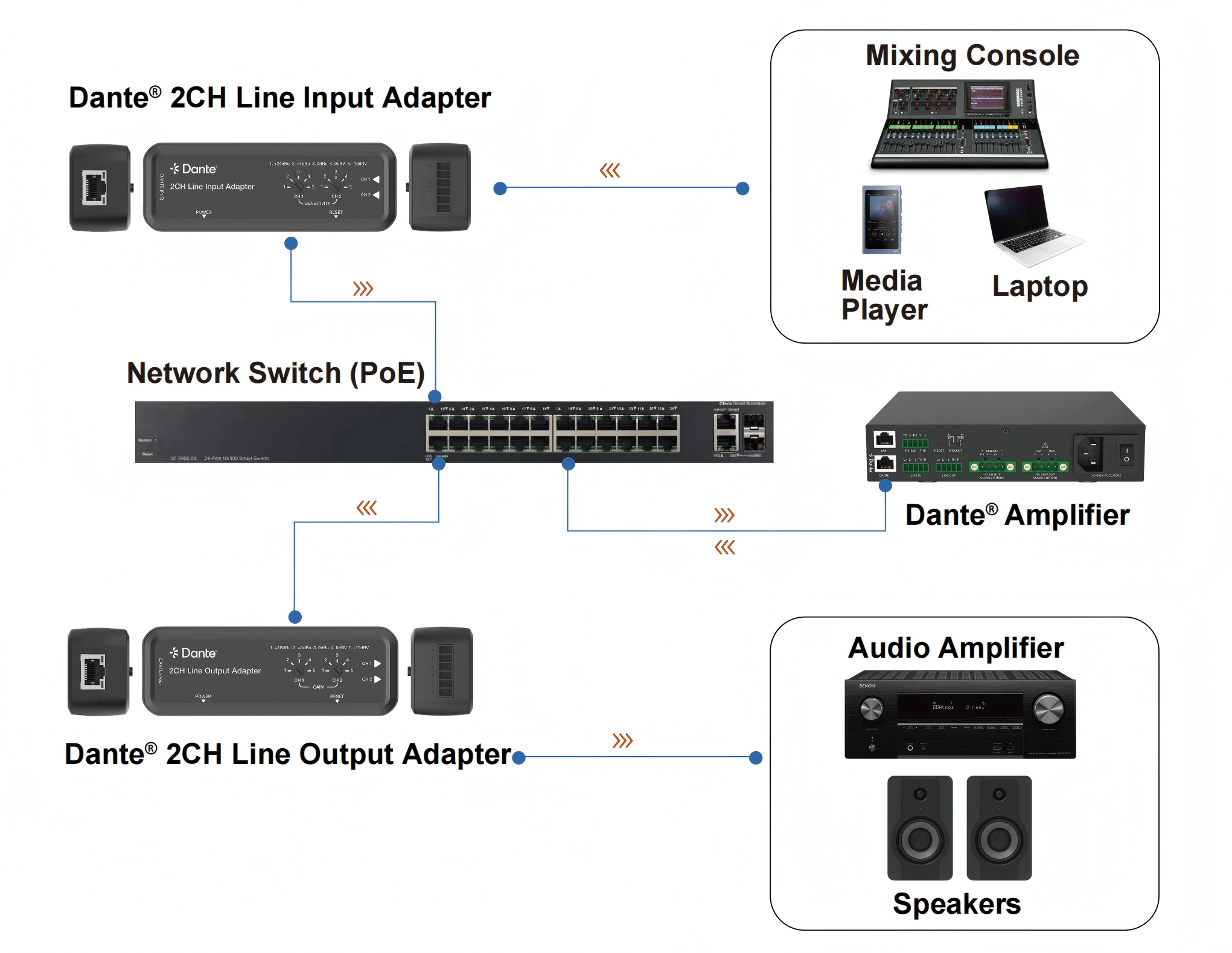

Application Diagram
