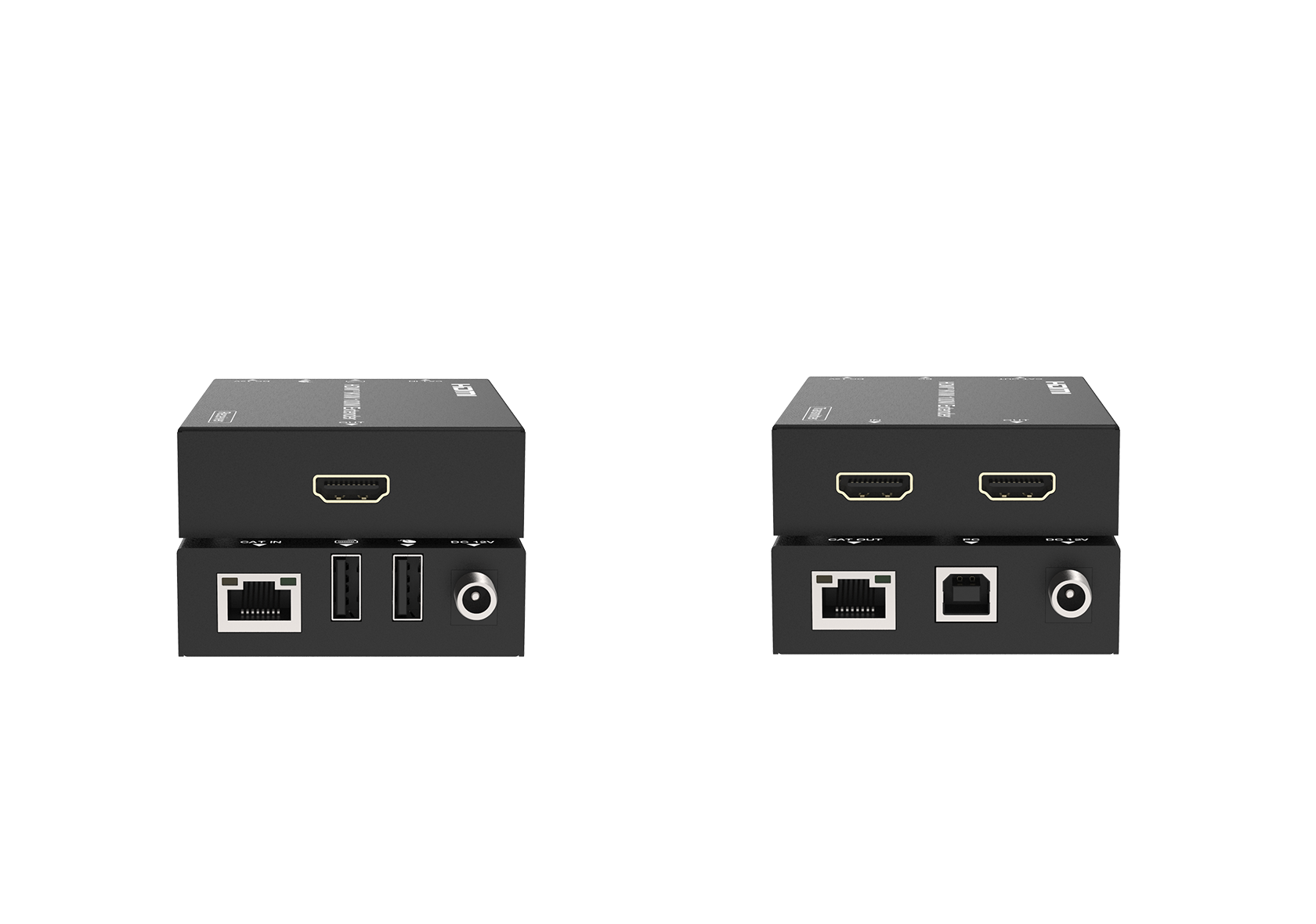

1080p HDMI KVM Extender – 100m
Extend 1080p HDMI video, audio and USB keyboard/mouse control up to 100m/328ft over CAT6/6a, with transmitter loop-out, EDID copy and bidirectional PoC.
MV-EX100K
Request a Quote
Key Features
- Complies with HDCP 1.4.
- Supports 4.95Gbps.
- Supports video resolutions up to 1080p@60Hz, 1920×1200@60Hz, as specified in HDMI 1.3.
- Extends signals up to 100m/328ft over CAT6/6a cable.
- Supports KVM transmission.
- Supports loop out on Transmitter.
- Supports audio format up to LPCM 2.0CH.
- Supports bidirectional PoC function.
- Supports EDID copy pass-through on source and sink end.
- Powered by one DC 12V/1A adapter; bidirectional PoC powers the remote unit.

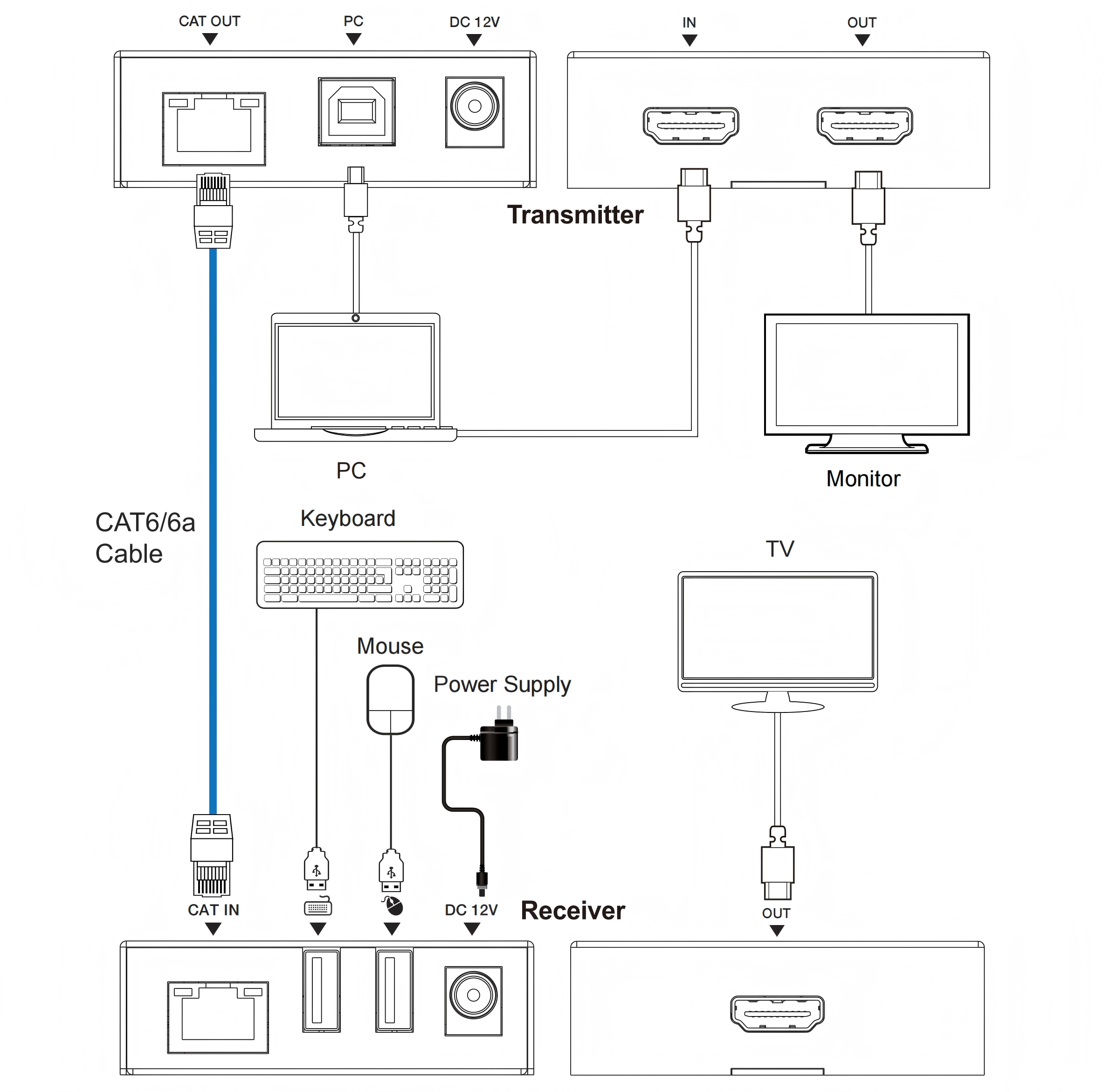

Application Diagram
