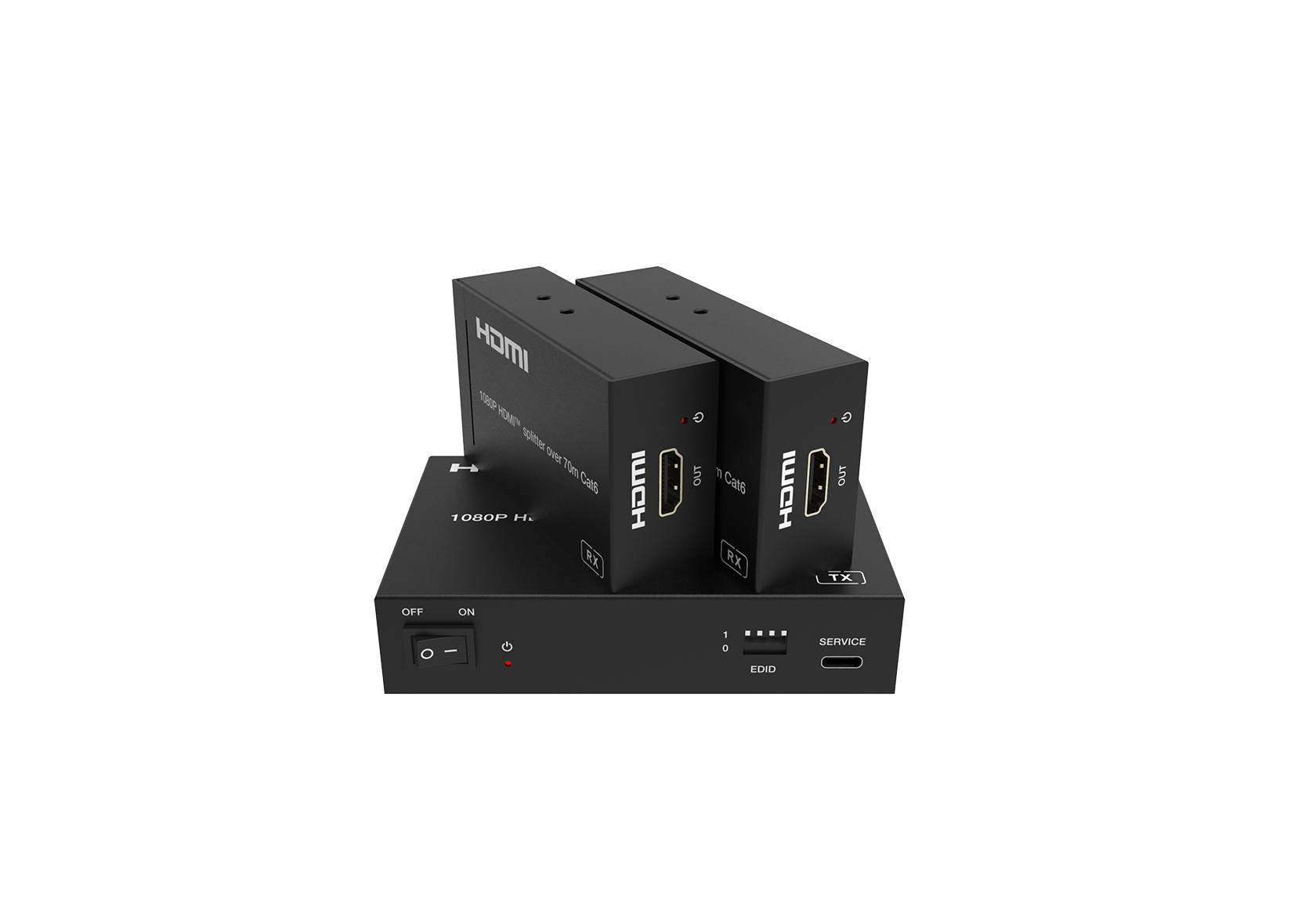

1080p 1×2 HDMI over CAT Extender Splitter – 70m
This HDMI 1x2 Splitter can distribute 1 HDMI source signal to any 2 display devices, supporting video resolution up to 1080p@60Hz. It is designed with 1 HDMI input, 1 HDMI loop output and 2 CAT outputs.
MV-ES1270
Request a Quote
Key Features
- Complies with HDCP 1.4.
- Supports video resolutions up to 1080p@60Hz.
- Extends signals up to 230ft/70m at 1080p@60Hz via a single CAT6 cable.
- Supports 1 HDMI input, 1 HDMI loop output and 2 CAT outputs.
- Supports HDMI audio formats including LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.
- Supports one-way PoC (TX->RX).
- Provides advanced EDID management.
- Uses a compact enclosure for flexible installation.
- The transmitter is powered by a DC 12V/1A adapter; one-way PoC powers the receivers.

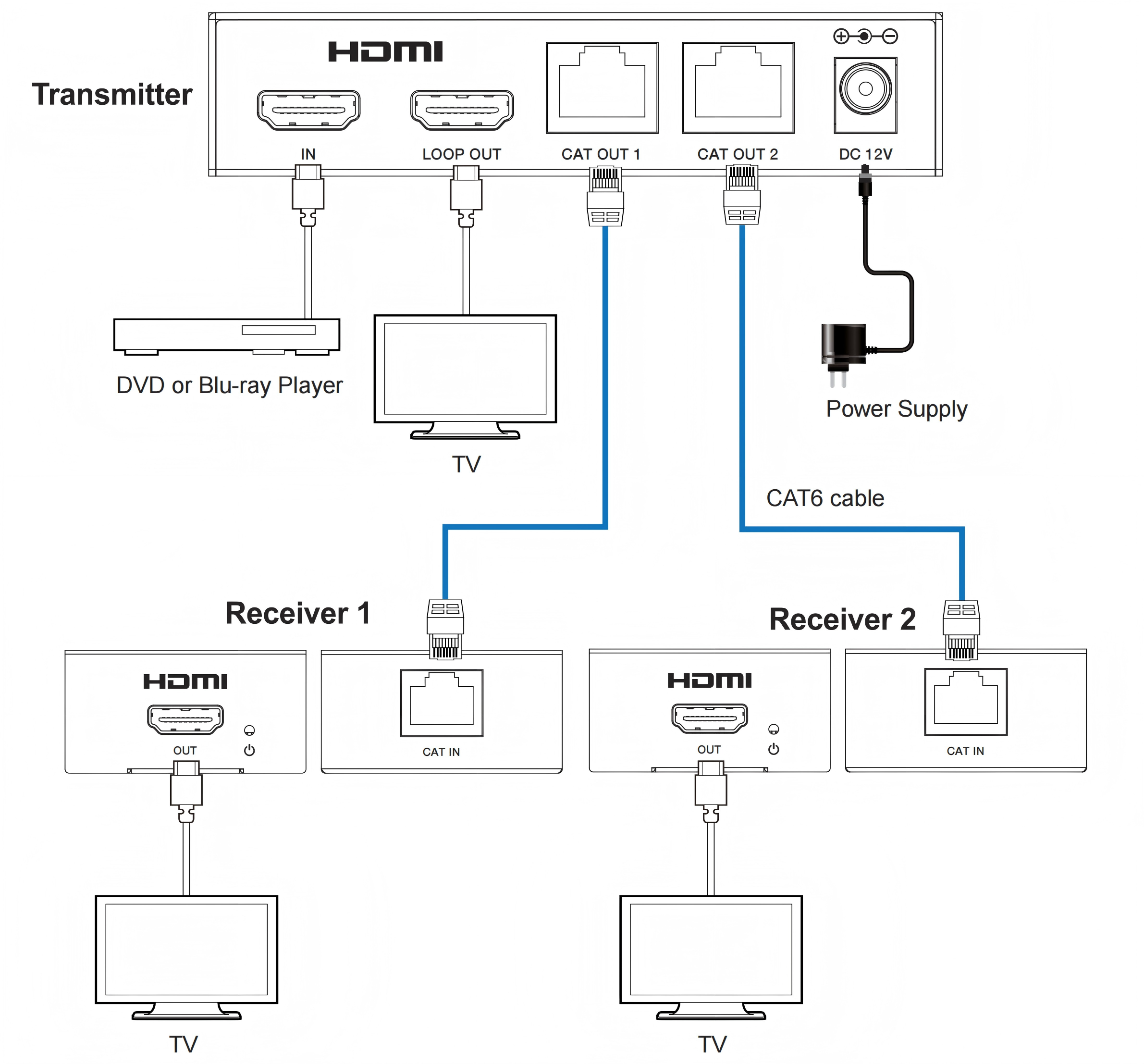

Application Diagram
