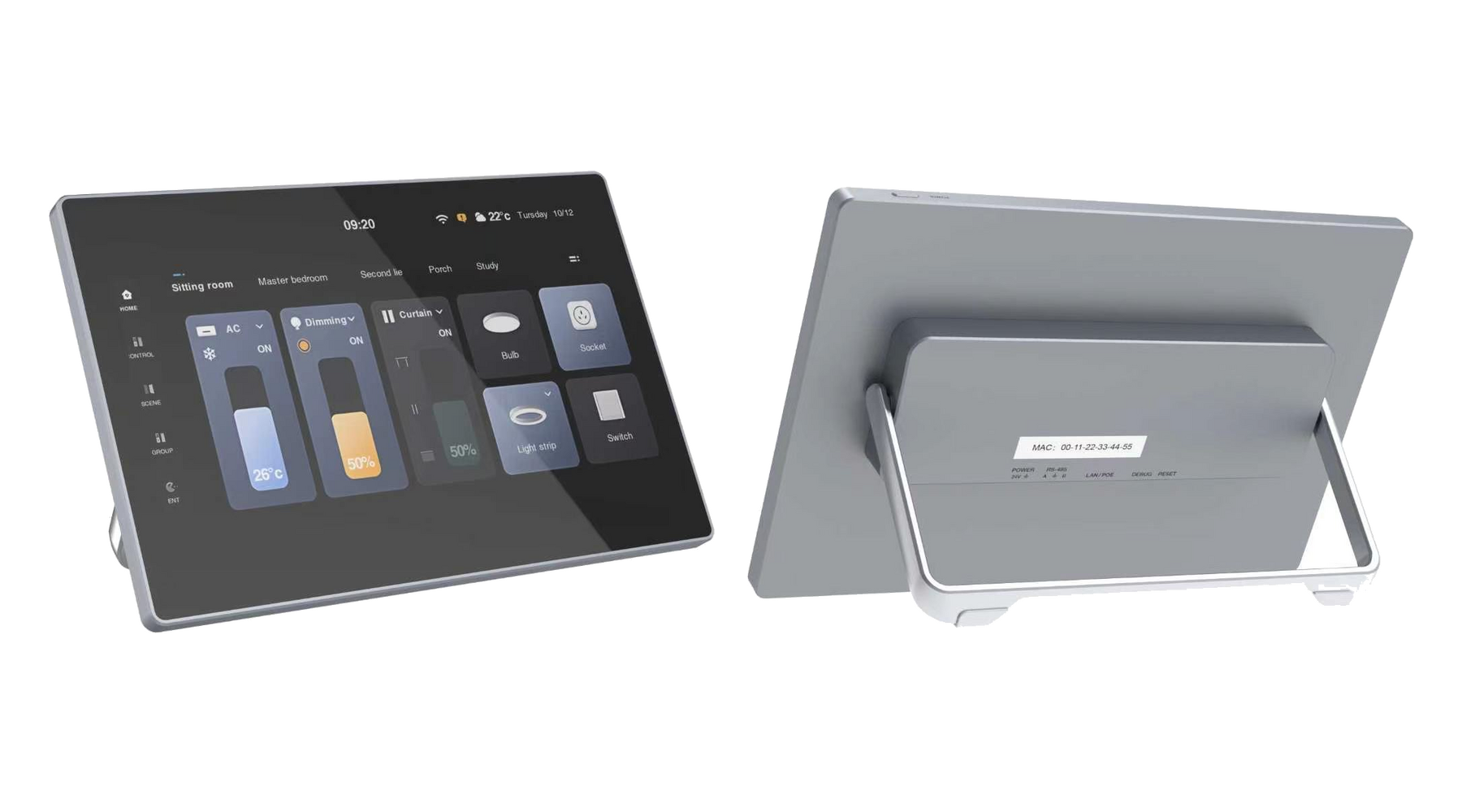

10-Inch Desktop Touch Panel Controller
Provide a customizable 10-inch tabletop control interface for meeting rooms, classrooms and smart spaces, with wired network connectivity and programmable control of integrated AV equipment.
MV-TP10D
Request a Quote
Key Features
- Uses an ARM Cortex-A55 architecture 1.8GHz processor.
- Runs Android 11.0 with 4GB DDR4 RAM, 32GB EMMC Flash.
- Provides a 10-inch 1280×800 (16:10) resolution desktop touchscreen.
- Operates in two modes as touch screen central control or user terminal.
- Supports one RS-485 communication serial port, which is capable of configuring 8 baud rates in the range of 2400-115200bps.
- Supports access to the host system management web page with a password.
- Supports interface design and programming through IDE design tools.
- Complies with industry standard network communication protocols (TCP/IP, HTTP, UDP, WebSocket).
- Provides one Gigabit Ethernet port.
- Powered by DC 24V/1A or PoE.

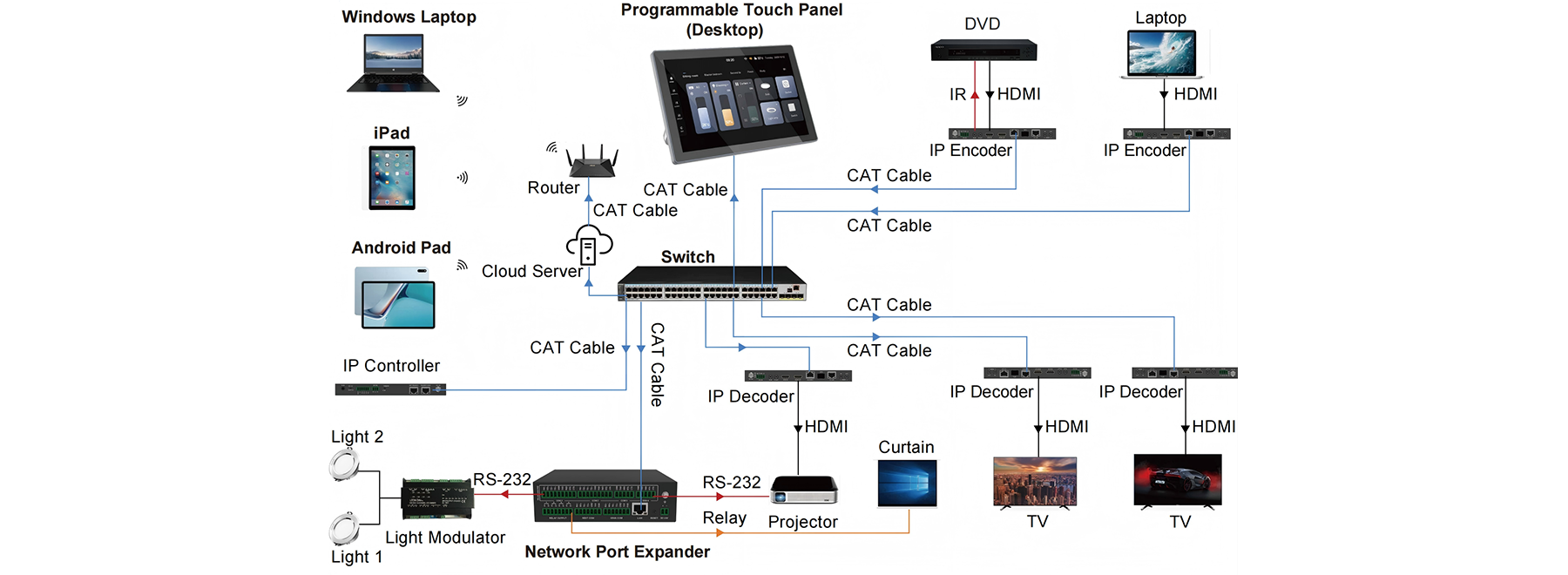

Application Diagram
